Borer Horizontal Floor Type CNC Skoda W200HC

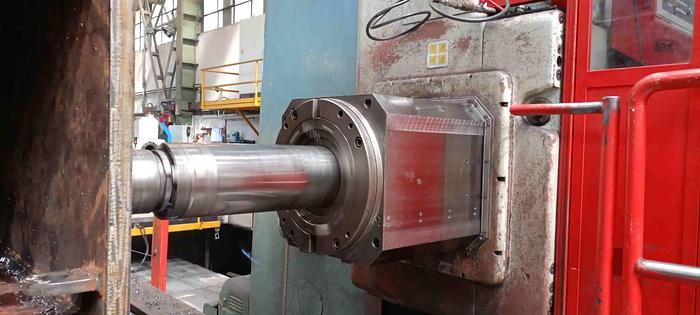

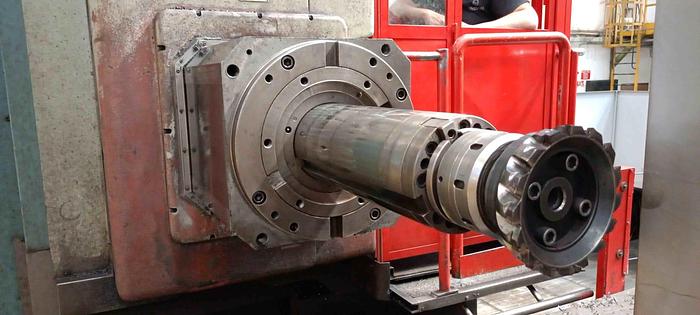

Spindle dia. : 200 mm - ISO 60,

Spindle RPM : Max 1300 mm (the machine was modernized),

Main drive power : 77 kW,

Max. Torque (Milling spindle): 35.000 Nm,

Axis :

X- Axis : 13500 mm (longitudinal),

Y- Axis : 4000 mm (vertical),

Z- Axis : 1600 mm,

Spindle : max 800 RPM,

Total power requirement : 180 kW,

Machine weight : 90 tons.

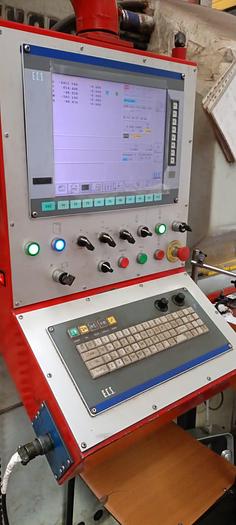

CNC : ECS

The machine is complete of rotary table : 3600 x 3600 mm,

Capacity : 60 tons.

No floor plate
