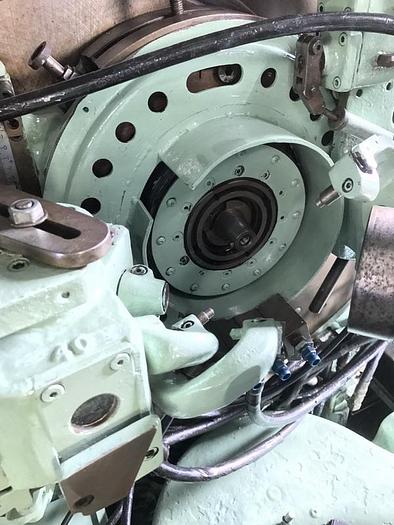

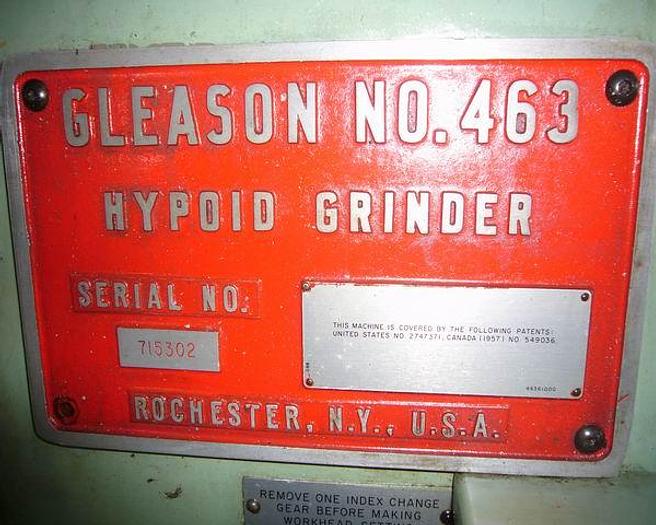

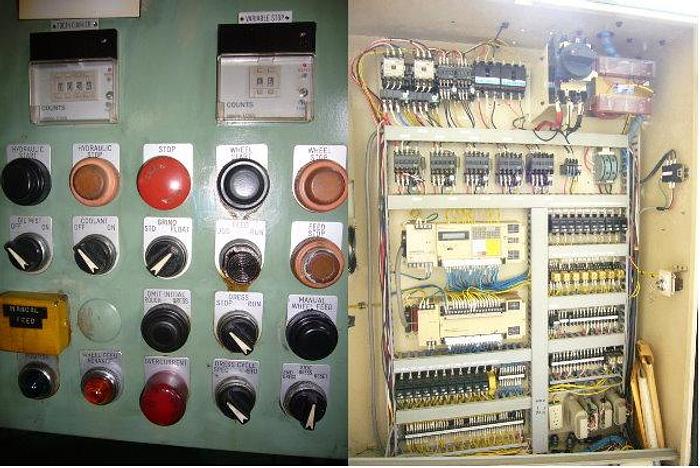

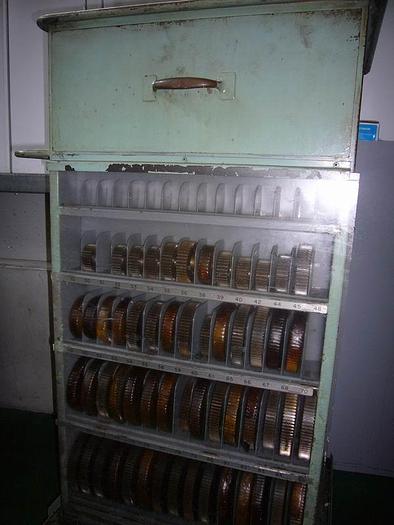

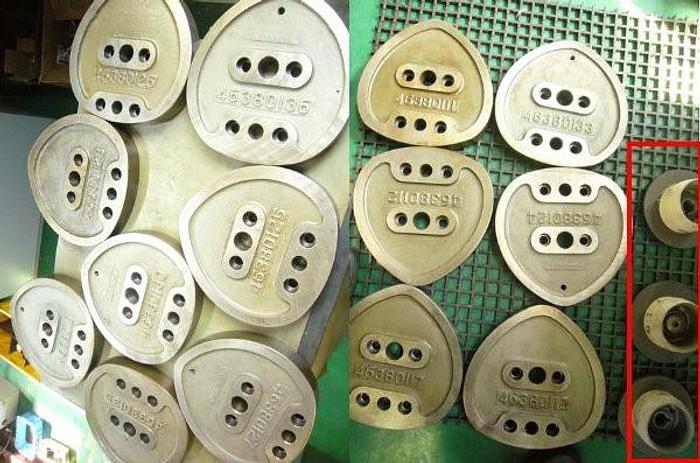

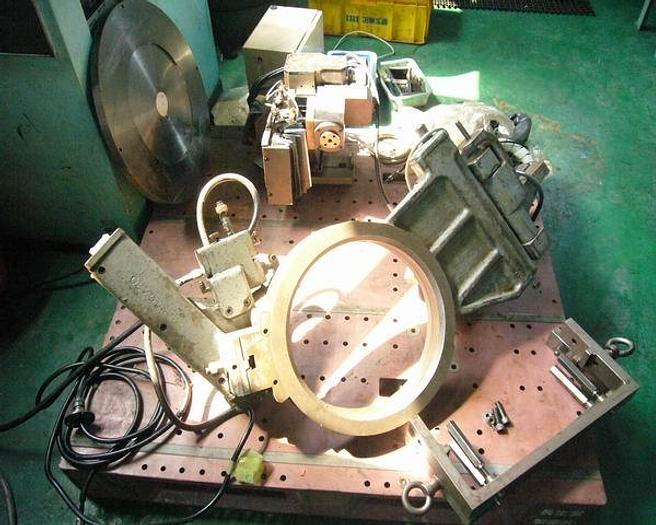

Gear Generator Spiral Bevel & Hypoid Gleason 463

Max pitch diameter : 861 mm,

Max face width : 76 mm,

Cone distance (max. 30˚ spiral angle and 12" diameter wheel) - 15"/(381 mm),

Maximum pitch angle, shafts at 90˚ - 71˚ 34',

Minimum pitch angle, shafts at 90˚ - 5˚ 42',

Extreme ratio, shafts at 90˚ - 3 to 1,

Maximum pitch diameter: (90˚ shafts) :

Spiral angle 0˚, ratio 1 to 1 - 15.5"/(393.7 mm),

Spiral angle 0˚, ratio 3:1 - 23"/(584.2 mm),

Spiral angle 30 ˚, ratio 1:1 - 21"/(533.4 mm),

Spiral angle 30˚, ratio 3:1 - 31.5"/(800.1 mm),

Spiral angle 45˚, ratio 1:1 - 22.5"/(571.5 mm),

Spiral angle 45˚, ratio 3:1 - 34"/(863.6 mm),

Coarsest diametral pitch / metric module 2 DP / 12.7 Module,

Maximum face width : 3"/(76.2 mm),

Work Spd1 Taper Hole dia, (Large End) : 3-19/32",

Work Spindle Bore Taper : (Per Ft) 39/64",

Work Spindle Thru-Hole Diameter : 3.87" / (98 mm),

Std Grind Wheel OD : 6"-8",

Std Grind Wheel OD (Metric) : 1852-203 mm,

Max. Wkhead offset Above/Below Ctr : 4.5",

Max. Wkhead offset A/B Ctr (Metric) : (114.3 mm),

Distance from Machine Center to Spindle Nose : 3"-20.5",

Distance from Machine Center to Spindle Nose (Metric) : (76-500 mm),

Feed Rate (Seconds Per Tooth) : 1.9-11.8,

Approx. Floor Space : 135" x 81",

Approx. Floor Space (Metric) : (3429 x 2057 mm),

Approx. Overall Machine Ht : 97",

Approx. Overall Mach Ht (Metric) : (2464 mm),

Approx. Machine Net Weight : 23,000 LBS,

Approx. Machine Net Weight (Metric) : 10.5 tons.
