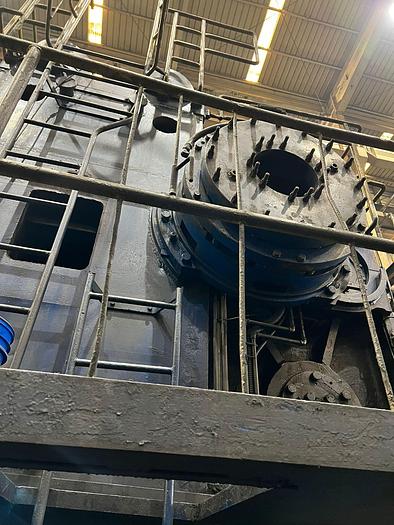

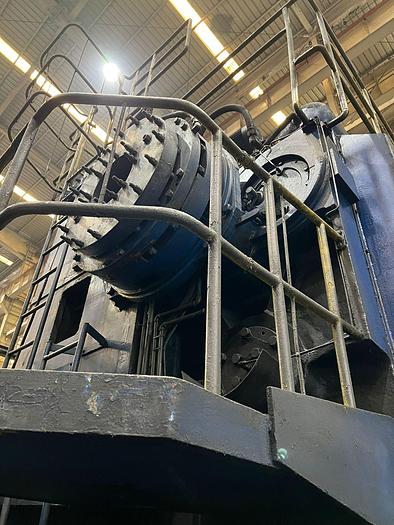

Press Knuckle Joint Coining KB8044

Capacity : 2500 tons,

Ram stroke : 190 mm,

Number of strokes in 1 minute : 14-20,

Shut height : 560 mm,

Bolster plate-to-ram adjustable stroke : 15,

Ram course in bottom position with max. power : 4,5

Table size : 1530 x 1530 mm,

Ram size front-to-back : 900 mm,

Distance between slides : 1420 mm,

Lower knockout : Stroke: 50 mm; Force : 225-450 kN,

Upper knockout : Stroke: 30 mm; Force : 250 kN,

Main motor : 77 kW, 380 V,

Overall dimensions : 4920 x 3340 x 5980 mm,

Weight : 125 tons.
