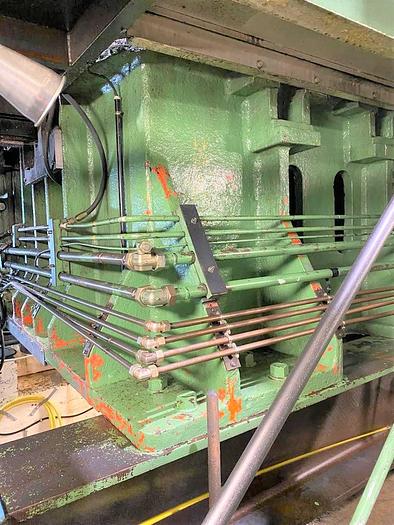

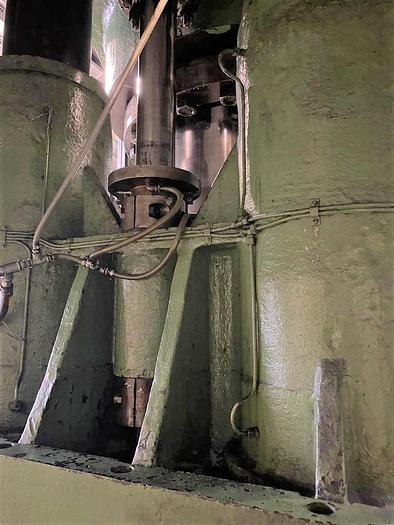

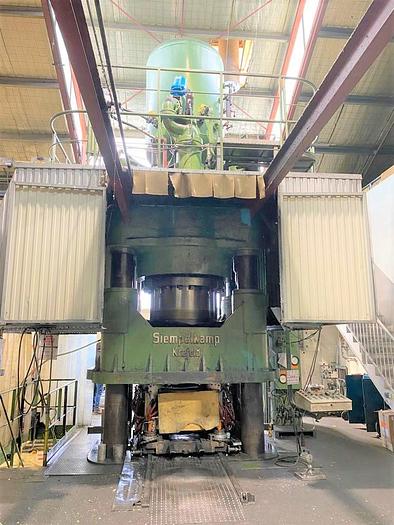

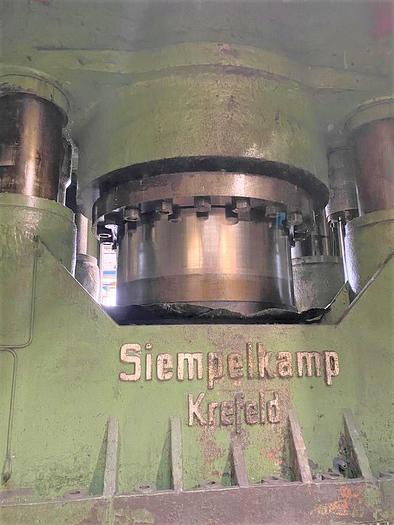

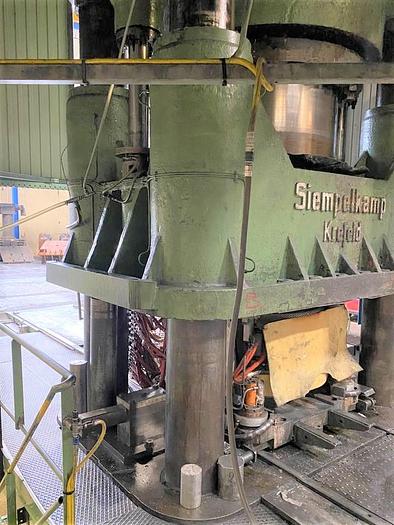

Press Forging Open Die Hydraulic Siempelkamp

Capacity : 4000 tons

Retraction force : 200 tons,

Daylight : 1700 mm,

Stroke : 1100 mm,

Table size : 748 x 1798 mm,

Column passage : 1830 x 830 mm,

Table height above floor : 490 mm,

Press oil pressure : 315 bar,

Control oil pressure : 25 bar,

Lowering speed: 150 mm/ sec.,

Press speed @ 150 bar: 6.2 mm/ sec.,

Press speed @ 315 bar: 2.7 mm/ sec.,

Retraction speed: 120 mm/sec.,

Required space: 6000 x 11800 mm,

Height above floor: 8000 mm,

Foundation depth : 1200 mm,

Total weight: 160 tons.

The speed can be increased by adding more pumps.
