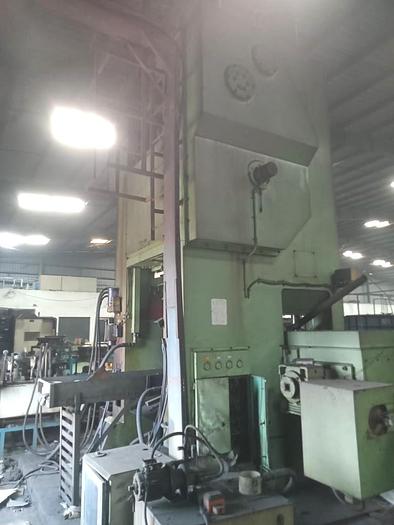

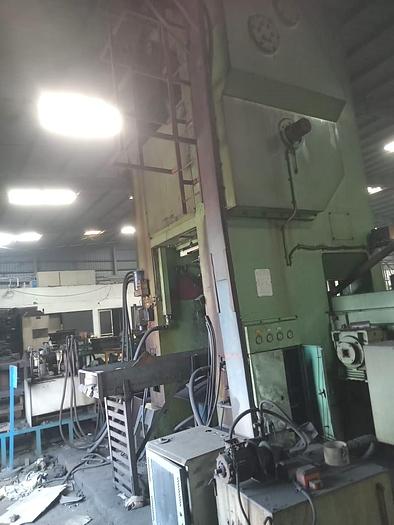

650 tons Press Cold Forging Hanoul HNKJ650
Specifications
| Manufacturer | Hanoul |
| Model | HNKJ650 |
| Year | 2007 |
| Condition | Used |
| Stock Number | MA2517 |
| Item condition | Good condition |
| Capacity tons | 650 |

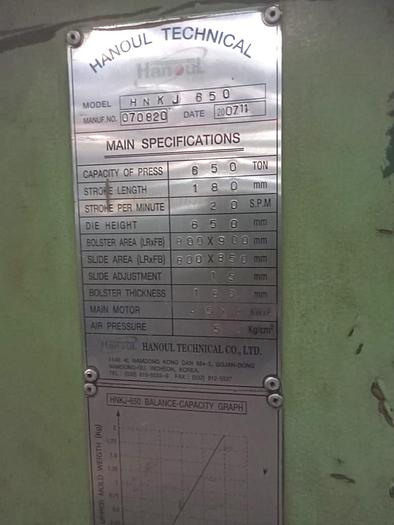

Description
Capacity : 650 tons,
Stroke : 180 mm,
Stroke per min. : 20,
Die Height : 650 mm,
Bolster area (LR x FB) : 800 x 900 mm,
Slide area (LR x FB) : 800 x 850 mm,
Slide adjustment : 15 mm,
Bolster thickness : 180 mm,
Main motor : 45 Kw x P,
Air pressure : 5 kg/cm2.
Technical manuals are available.
