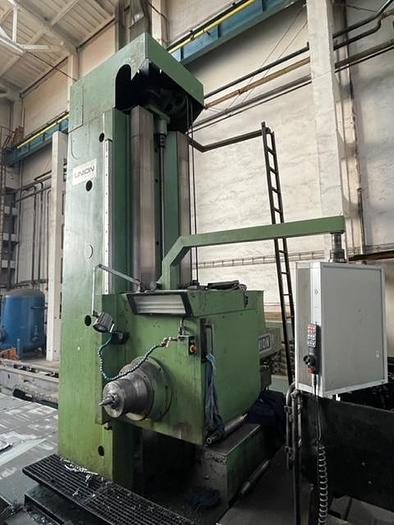

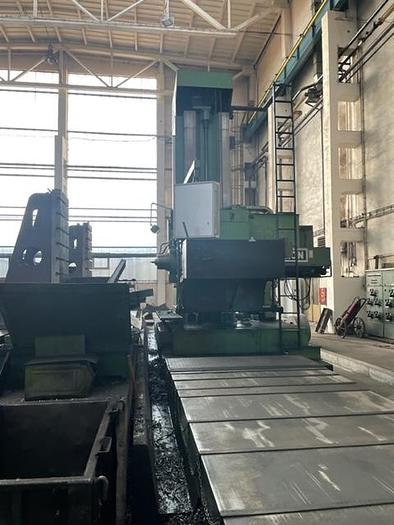

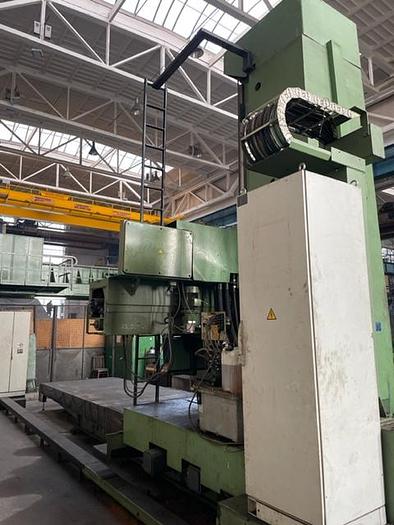

Borer Horizontal Table Type CNC Union BFT130

Spindle dia : 130 mm,

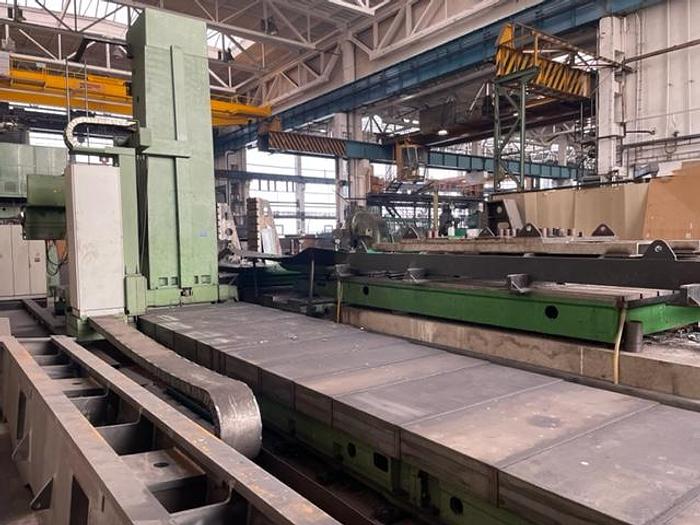

Column Longitudinal Travel : 11 000 mm, Rack & Pinion Driven,

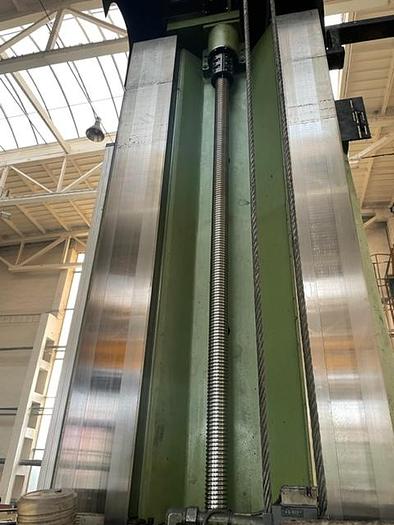

Head Vertical Travel : 2450 mm, Driven by Ball Screw & Siemens Servo Motor,

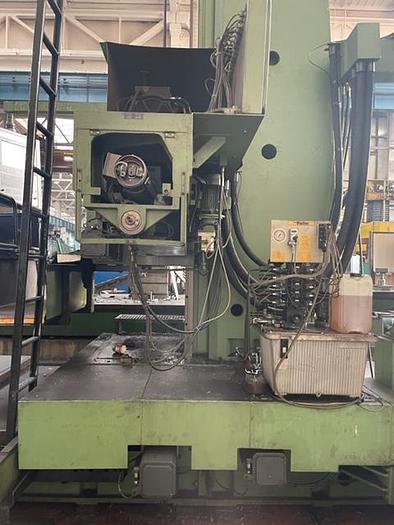

Column Cross Travel: 400 mm, Driven by Ball Screw & Siemens Servo Motor,

Spindle Travel : 1000 mm,

Spindle Speeds : 4.5 to 900 RPM,

Spindle Taper : #50,

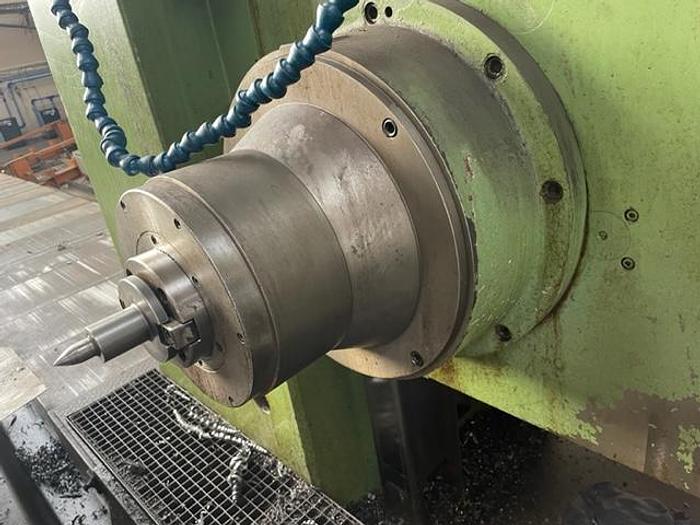

Facing Plate Diameter : 850 mm (covers the facing head),

Facing Head Diameter: 800 Diameter,

Facing Head Speed : 4.5 to 180 RPM,

Facing Head Travel : 325 mm,
