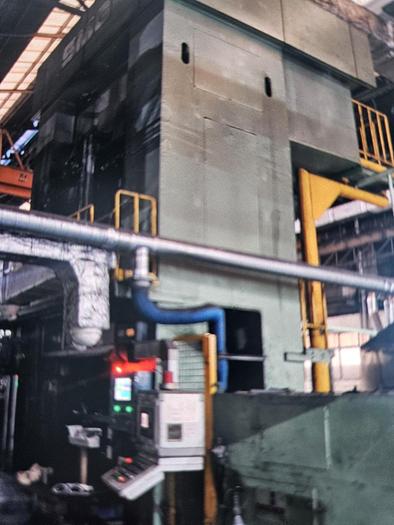

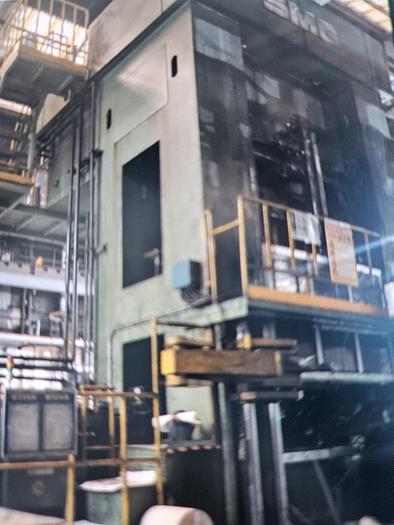

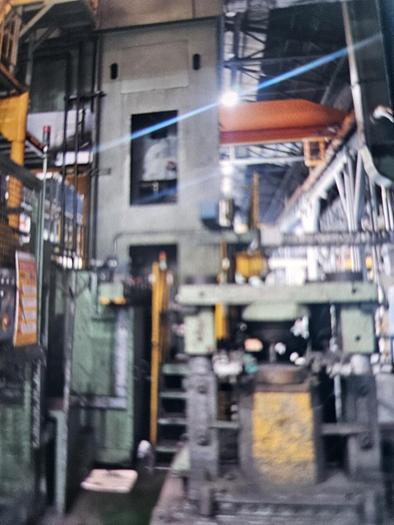

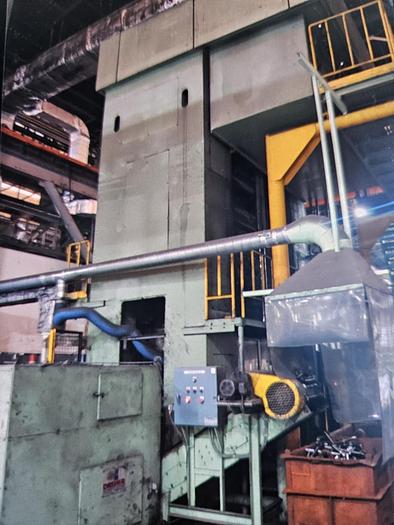

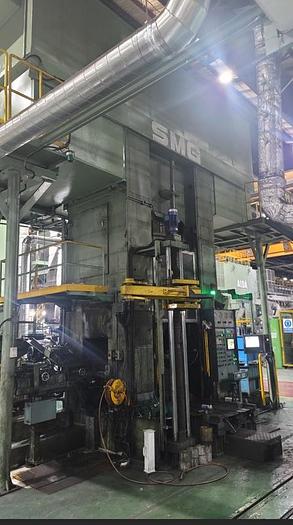

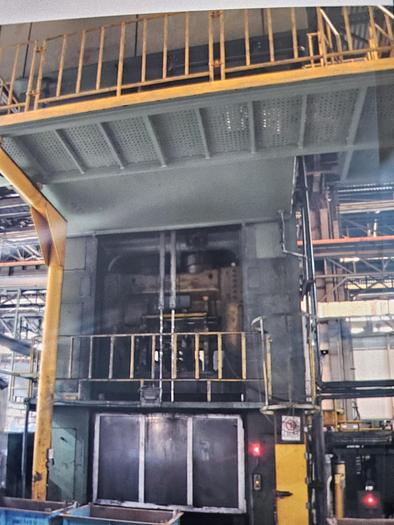

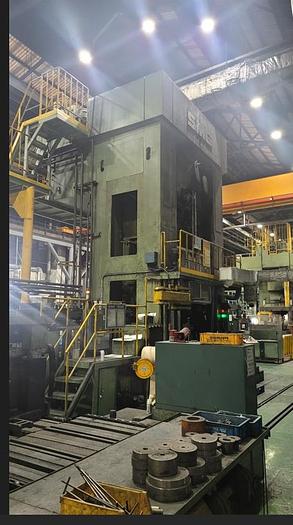

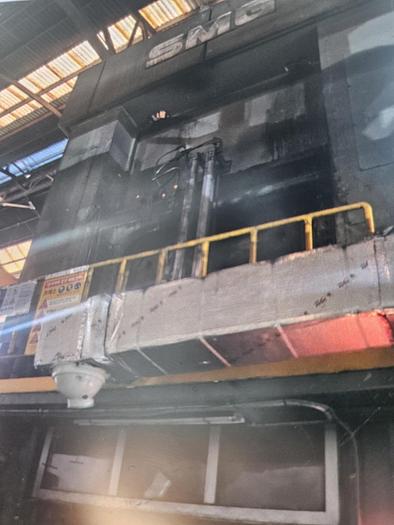

1500 tons Press Cold Forging Hydraulic SMG

Capacity : 1500 tons,

Stroke : 500 mm,

Daylight bed-slide up : 1800 mm,

Slide area (width x depth : 2150 x1300 mm,

Clear width between the uprights : 2160 mm,

Bed area (width x depth) : 2150 x 1300 mm,

Ejector beam in the press bolster for five station:

Ejector capacity : 800 kN,

Ejector stroke : 400 mm,

Diameter of ejector bolts : 59 mm,

Ejector speed : 250 mm/s,

Ejector in the slide : 5 pieces,

Ejector force : 100 kN,

Ejector stroke : 130 mm,

Distance between the ejector : 350 mm,

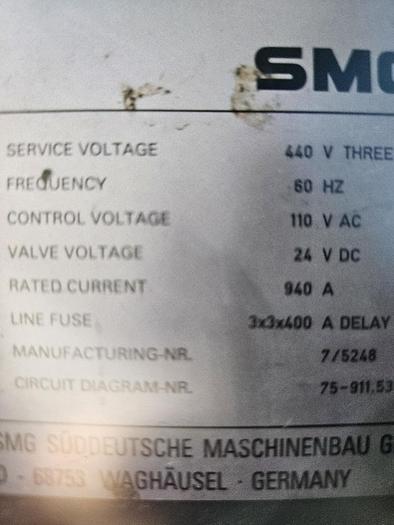

Power rating : 2 x 250 kW,

Pump rating : 4 x 560/1200 1/min, Rpm,

Rapid downstroke/upstroke : 500/500 mm/s,

V max. / Vat nominal capacity : 68/30 mm/s,

Opening in the upright (width x height) : 700 x 1400,

Weight of the machine : 133.2 tons,

With transfer system, Die changing device.

Technical Manual is available.
