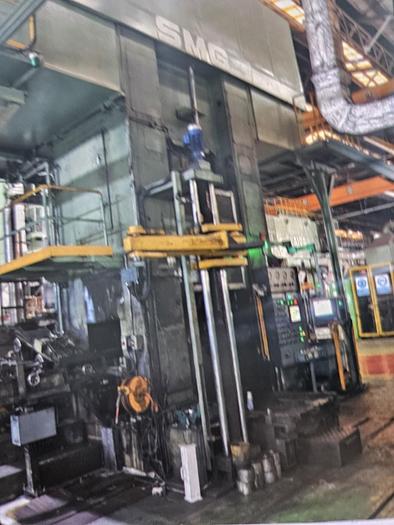

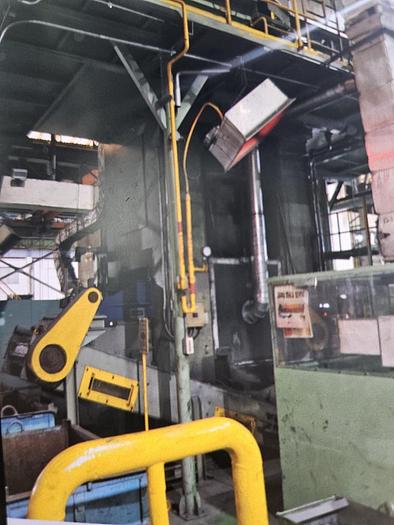

Press Cold Forging Hydraulic SMG

Capacity : 1000 tons.

Stroke : 500 mm,

Installation table - slide in TDC : 1550 mm,

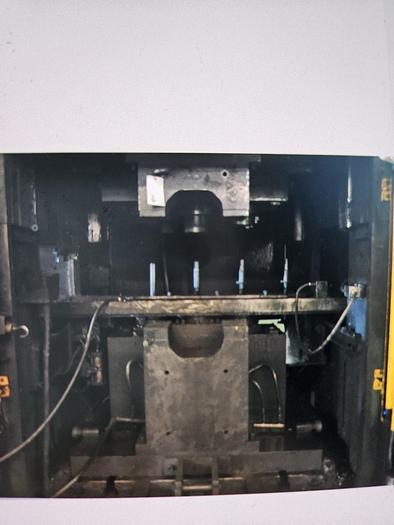

Slide area (width x depth ) 1300 x 1000 mm,

Clear distance between upright : 1300 mm,

Bed area (width x depth) : 1300 x 1070 mm,

Table ejector force : 630 kN,

Table ejector stroke : 400 mm,

Table ejector area :605 mm,

Drive capacity : 3 x 110 kw,

Pump capacity : 3 x 350/1800 1/min, U/min,

Rapid closing speed (down/up) : 400/450 mm/s,

Speed at mx. pressure : 52/34 mm/s,

Slide ejector force : 3 x 100 kN,

Slide ejector stroke : 120 mm,

Slide ejector area per each : 505 mm,

Frame opening (width x height) : 570 x 1110 mm,

Machine weight : 69.2 tons.

With transfer system, Die changing device.

Technical Manual is available.
