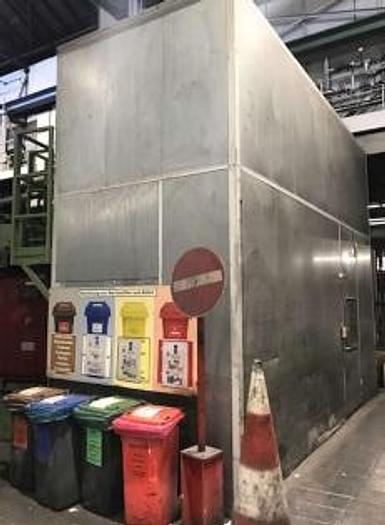

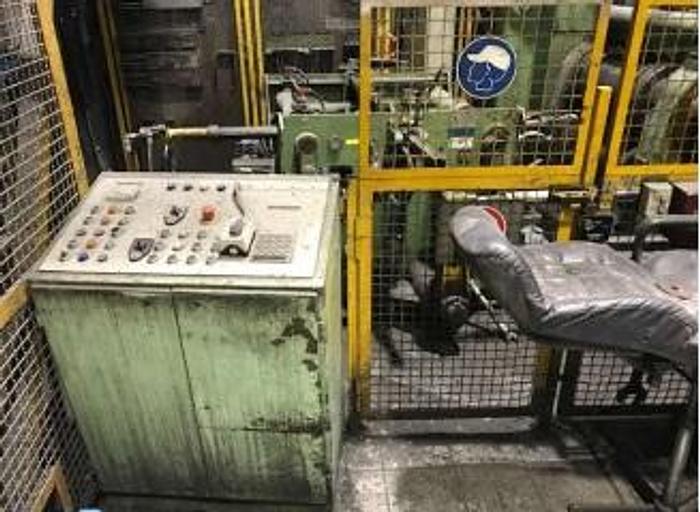

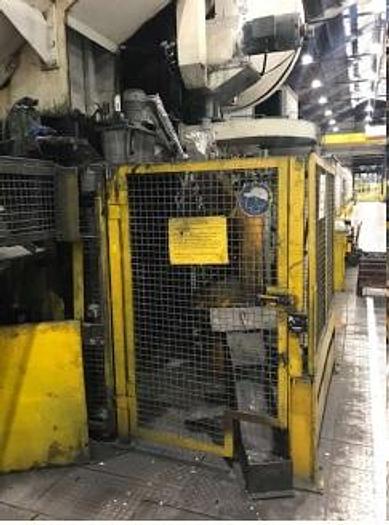

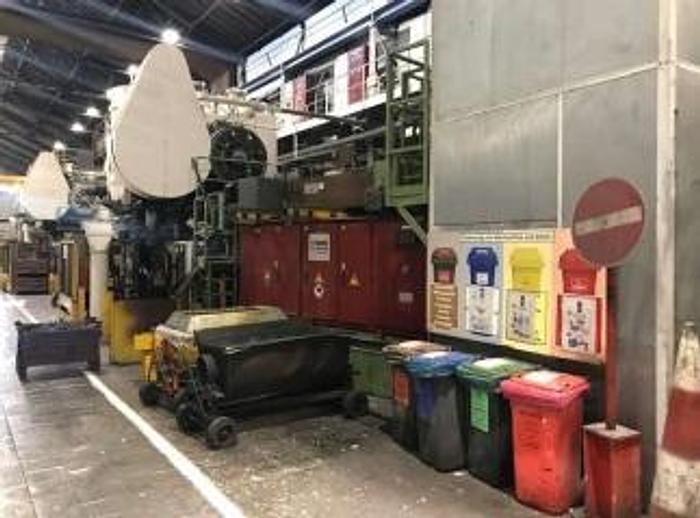

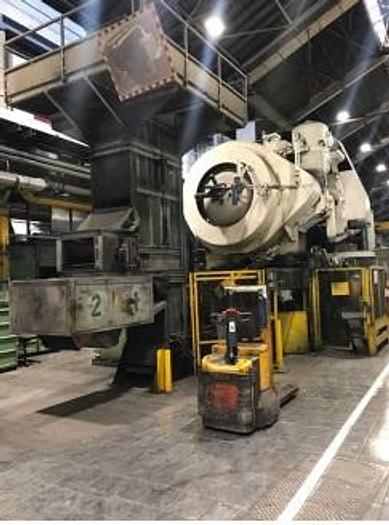

Hot Forging Line Hasenclever VEPES3150

Sold

Specifications

ManufacturerHasenclever
ModelVEPES3150
Year1972
ConditionUsed
Stock NumberMA2481
Item conditionGood condition
Capacity tons3150

Description

Capacity : 3150 tons,

Stroke : 305 mm,

Stroke per min. : 60

Clear stand width : 1250 mm,

Table clamping surface

-Width from left to right : 1235 mm,

-Depth from front to back : 1600 mm,

Slide clamping surface

-Width from left to right : 1120 mm,

-Depth from front to side rear : 1120 mm,

Clear heights between table and carriage

-Stroke and slide adjustment bottom (without protective plates) : 935 mm,

-Stroke and slide adjustment above (without protective plates) : 1264 mm,

Central height adjustment of the carriage through auxiliary motor and gearbox : 24 mm,

Adjustment motor rated capacity : 7.35 kW,

Adjustment motor number of revolutions : 14.5 rpm,

Drive motor rated capacity : 150 kW,

Drive motor number of revolutions : 1500 rpm,

Electrical equipment is designed for : 3 Cycles, 380 V, 50 Hz,

Required compressed air : 50 atu,

Total air consumption per stroke : 85 l,

Total weight : 203 tons.


With

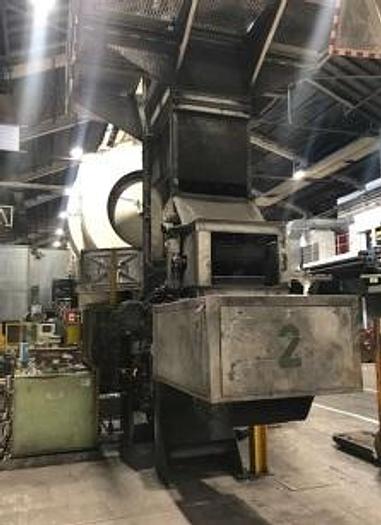

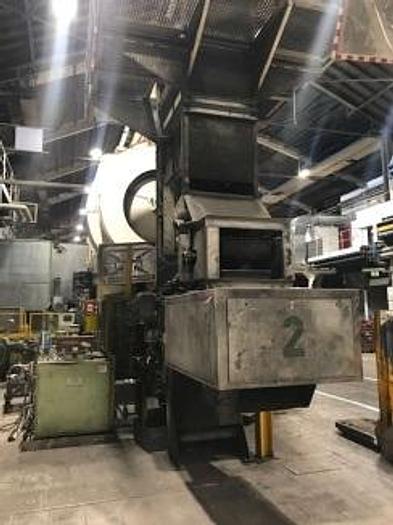

  1. Step Feeder with Tipper, Make Fröhlich, YoM: 2014

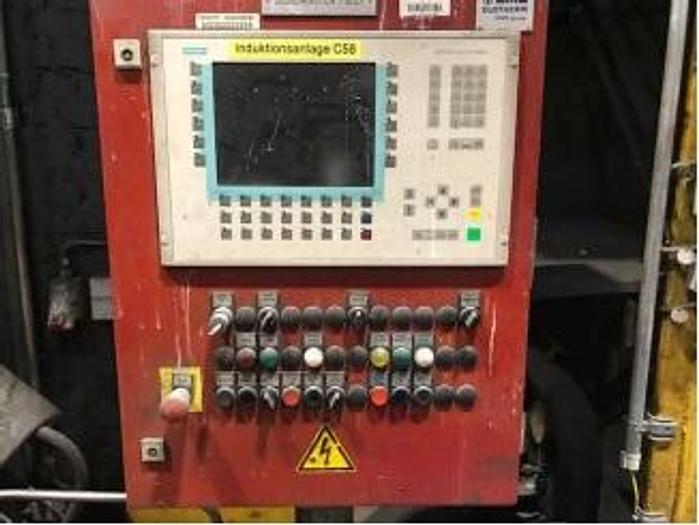

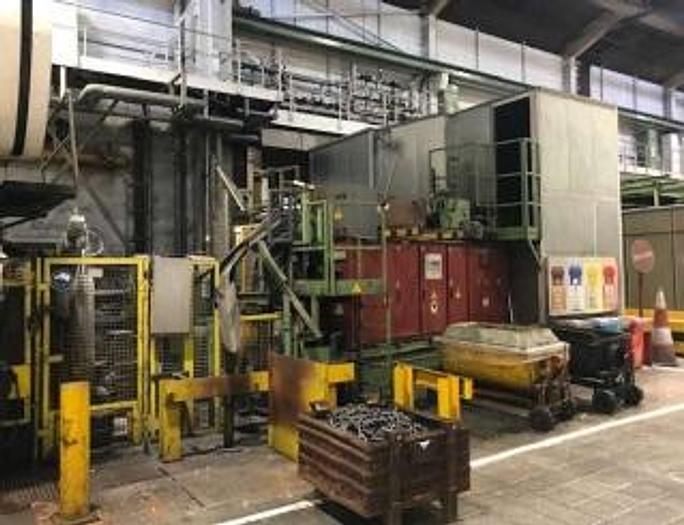

  2. Induction Furnace, Make SMS Elotherm BTH 2/2405, YoM: 2004

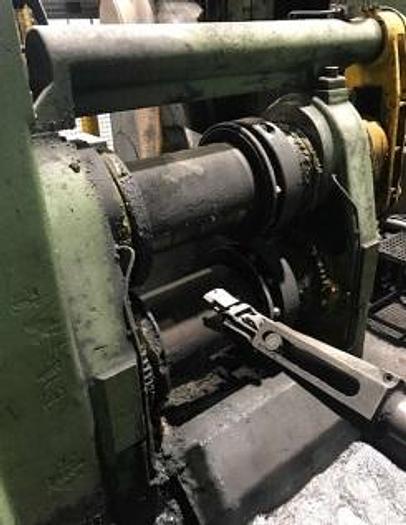

  3. Stretching Rolls, Make Eumuco ARWS 1A, YoM: 1995

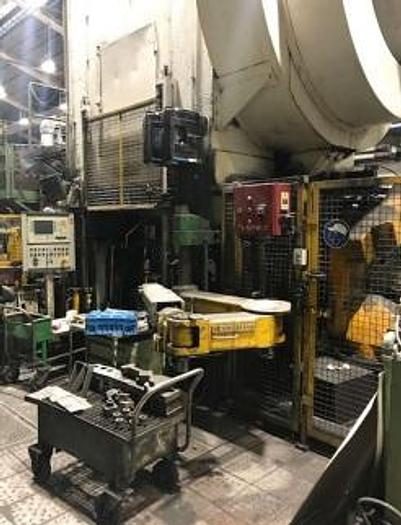

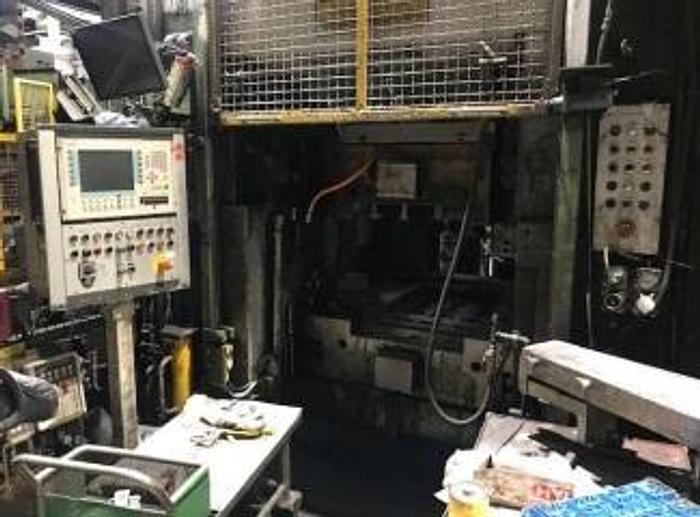

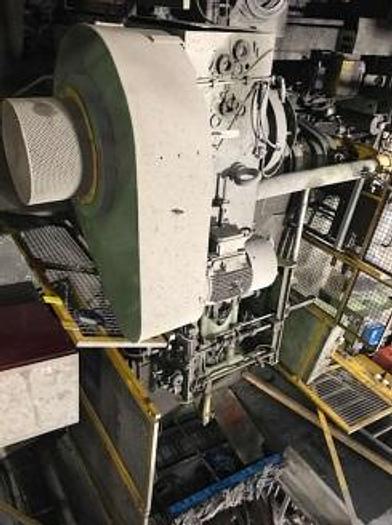

  4. Forging Press, Make Hasenclever VEPES 3150, YoM: 1972

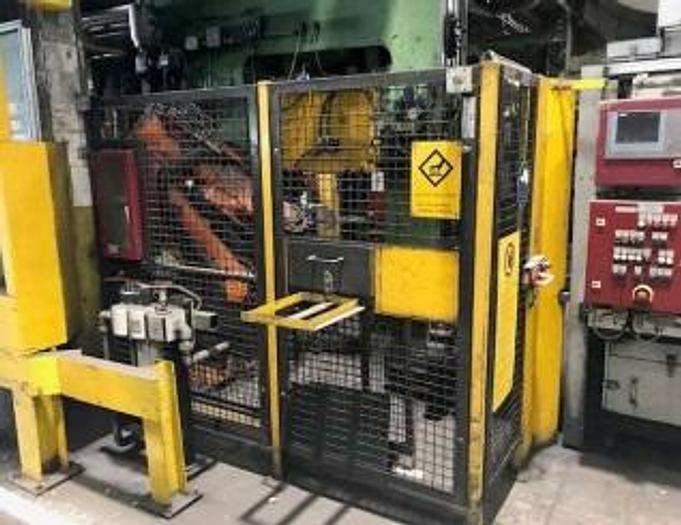

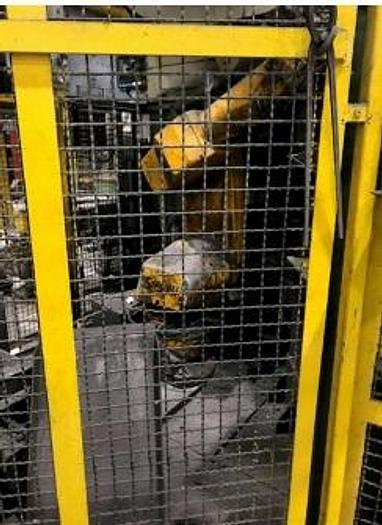

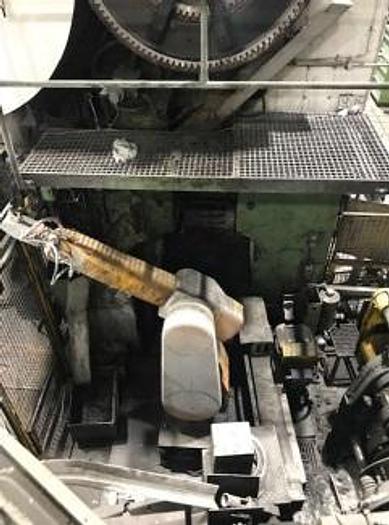

  5. (3) Robots, Make Stäubli, YoM: 2009
