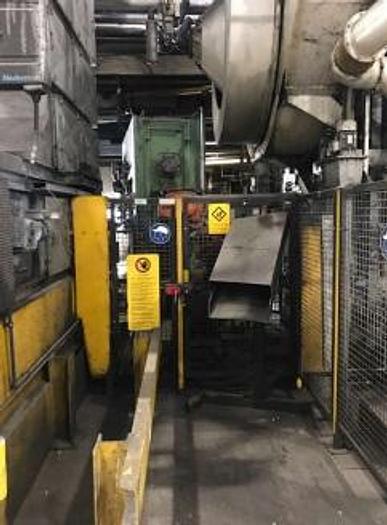

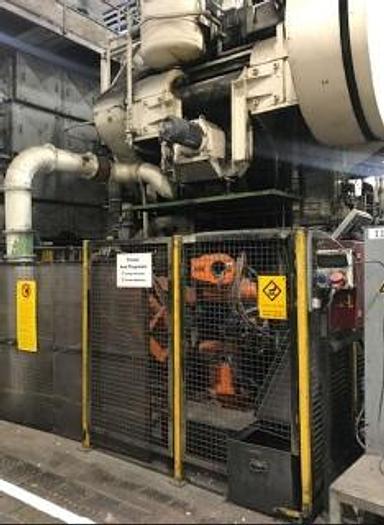

Hot Forging Line Hasenclever VEPES3150

Sold

Specifications

ManufacturerHasenclever
ModelVEPES3150
Year1972
ConditionUsed
Stock NumberMA2480
Item conditionGood condition
Capacity tons3150

Description

Capacity : 3150 tons,

Stroke : 305 mm,

Stroke per min. : 60,

Clear stand width : 1250 mm,

Table clamping surface

-Width from left to right : 1235 mm,

-Depth from front to back : 1600 mm,

Slide clamping surface

-Width from left to right : 1180 mm,

-Depth from front to side rear : 1120 mm,

Clear heights between table and ram

-Stroke and slide adjustment bottom (without protective plates) : 1026 mm,

-Stroke and slide adjustment above (without protective plates) : 1355 mm,

Central height adjustment of the carriage through auxiliary motor and gearbox : 24 mm,

Adjustment motor rated capacity : 7.35 kW,

Adjustment motor number of revolutions : 14.5 rpm,

Drive motor rated capacity : 150 kW,

Drive motor number of revolutions : 1500 rpm,

Electrical equipment is designed for : 3 Cycles, 380 V, 50 Hz,

Required compressed air : 50 atu,

Total air consumption per stroke : 85 l,

Total weight : 203 tons.

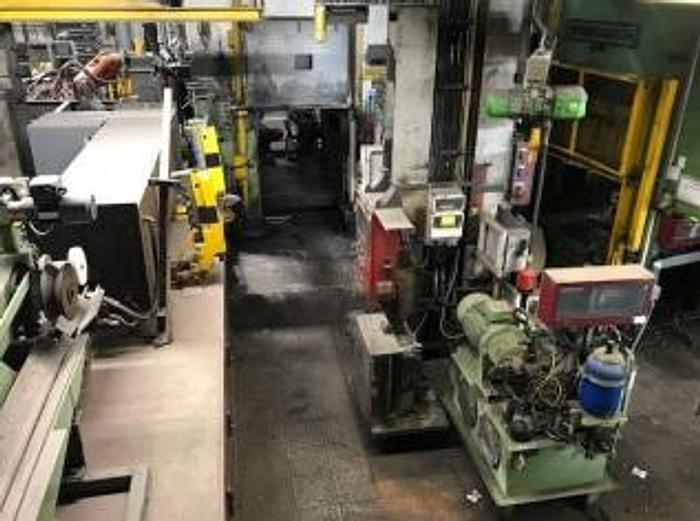

With

1. Spiral Conveyor, Make Fröhlich, YoM: 1987

2. Induction Furnace, Make AEG Elotherm BTH2/2 405-NC, YoM: 1999

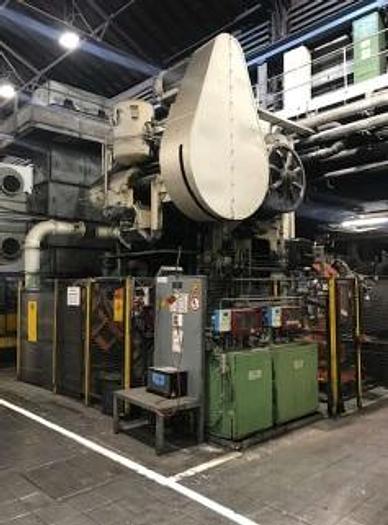

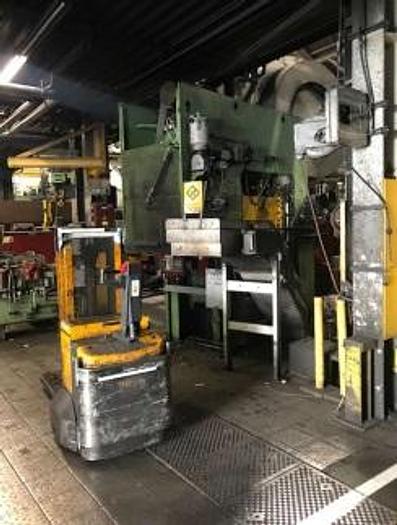

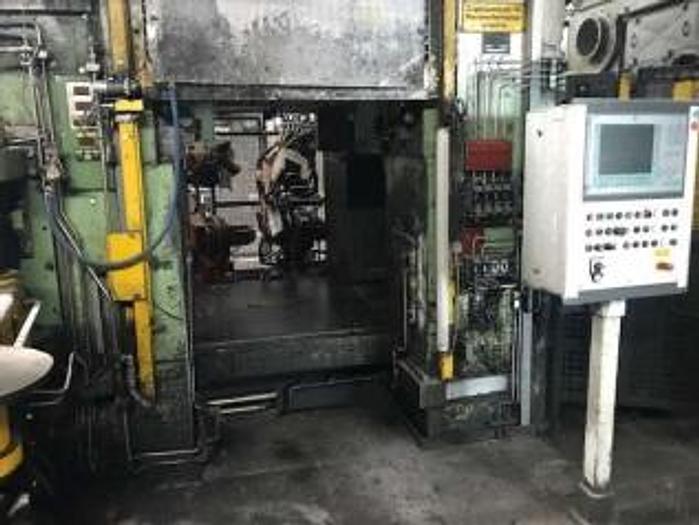

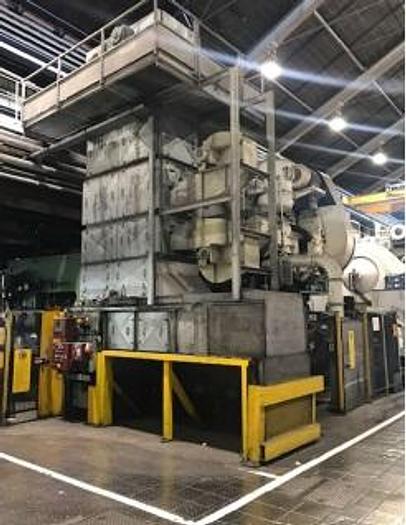

3. Forging Press, Make Hasenclever VEPES 3150, YoM: 1972

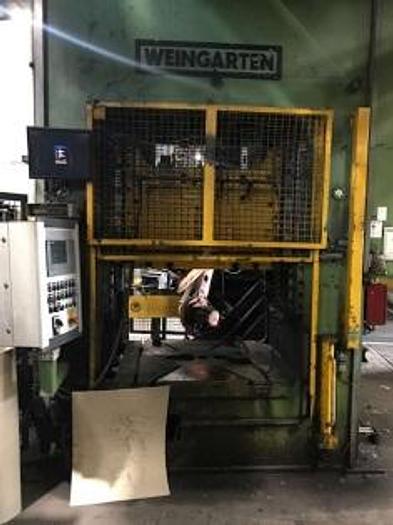

4. Trimming Press, Make Weingarten DE2000, 12, YoM: 1975

5. Cooling Tower, Make Köbo/Plappert, YoM: 1999

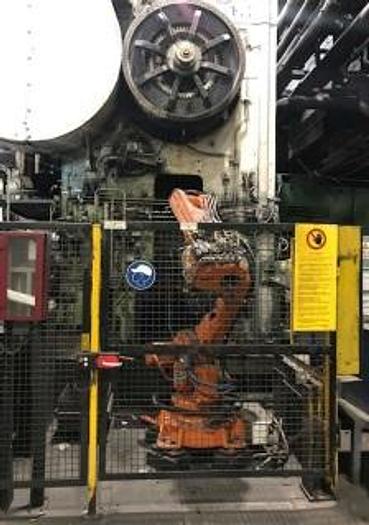

6. (5) Robots, Make ABB IRB6620-150/2,2, YoM: 2012
