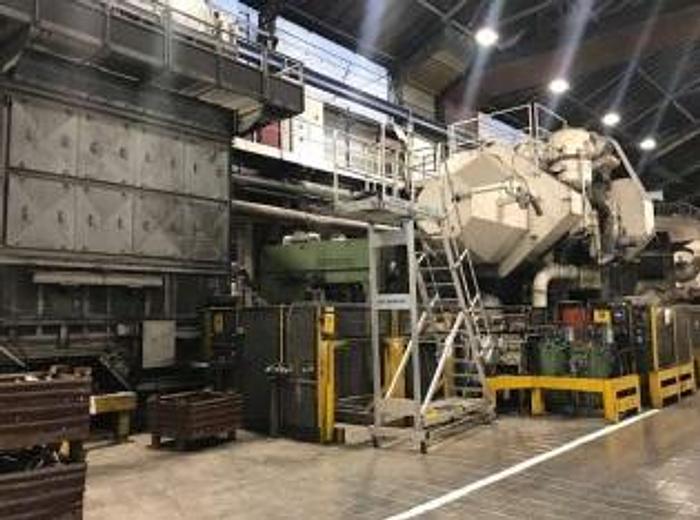

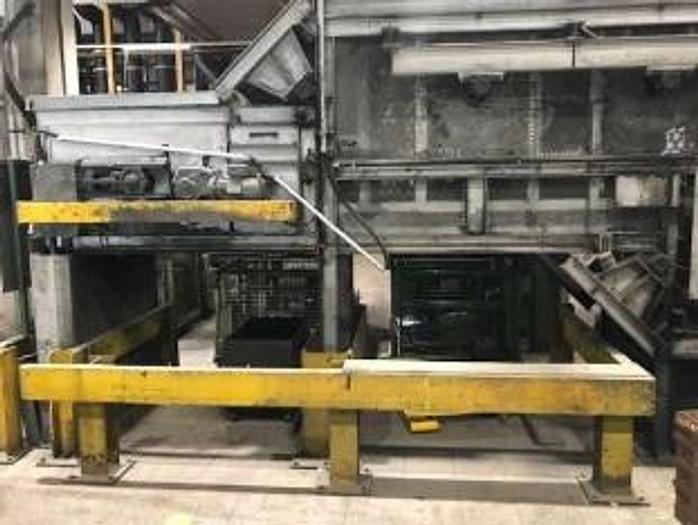

3150 tons Hot Forging Line Hasenclever VEPES3150

Capacity : 3150 tons,

Stroke : 305 mm,

No. of strokes per min. : 70,

Clear stand width : 1250 mm,

Table clamping surface

-Width from left to right : 1235 mm,

-Depth from front to back : 1600 mm,

Slide clamping surface

-Width from left to right : 1180 mm,

-Depth from front to side rear : 1160 mm,

Clear heights between table and ram

-Stroke and slide adjustment bottom (without protective plates) : 935 + 300 mm,

-Stroke and slide adjustment above (without protective plates) : 1264 + 300 mm,

Central height adjustment of the carriage through auxiliary motor and gearbox : 24 mm,

Adjustment motor rated capacity : 7.35 kW,

Adjustment motor Speed : 14.5 rpm,

Drive motor rated capacity : 150 kW,

Drive motor number of revolutions : 1500 rpm,

Electrical equipment is designed for : 3 Cycles, 380 V, 50 Hz,

Required compressed air : 50 atu,

Total air consumption per stroke : 85 l,

Total weight : 198 tons.

With

1. Feeder, Make Fröhlich WS800/1000, YoM: 1983

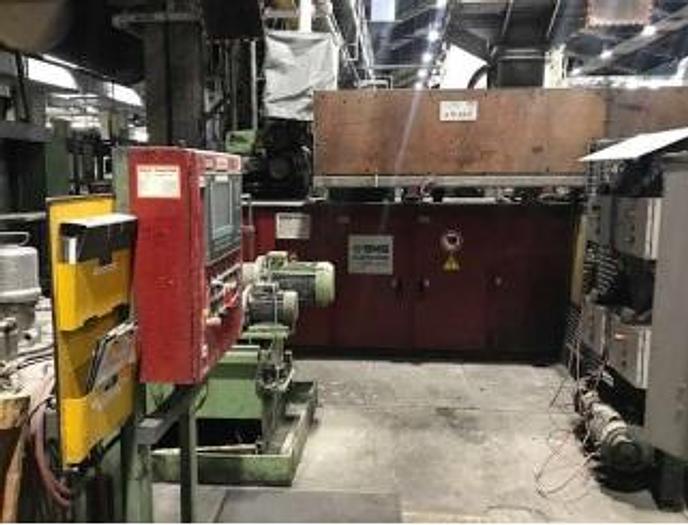

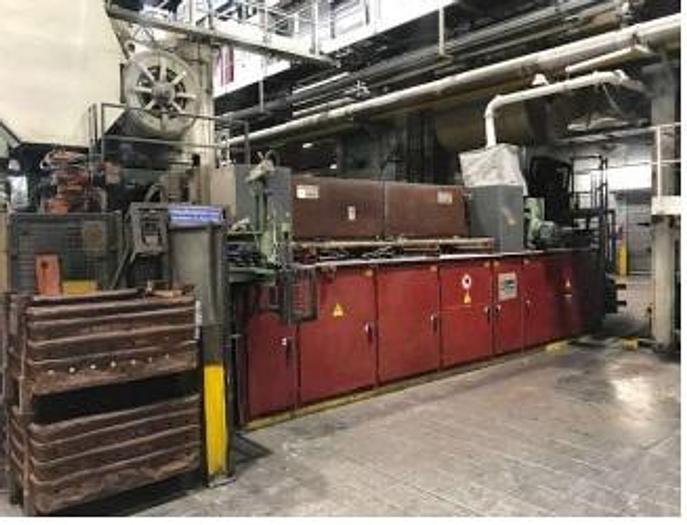

2. Induction Furnace, Make AEG Elotherm BTH2/4805, YoM: 2008

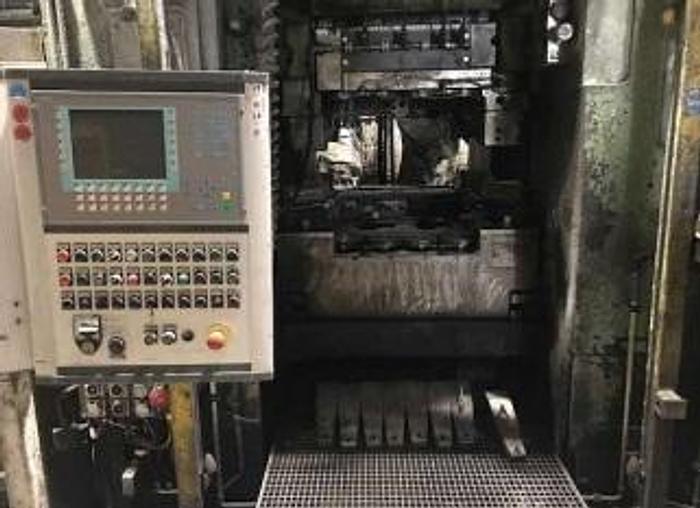

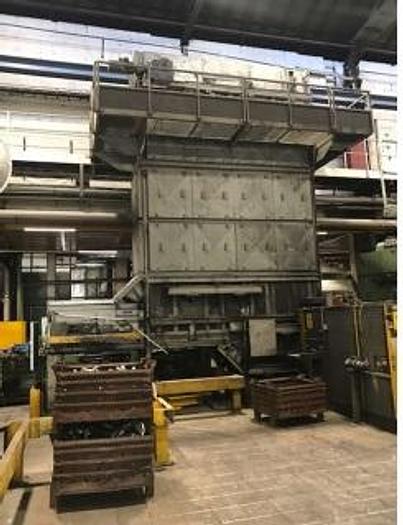

3. Forging Press, Make Hasenclever VEPES 3150, YoM: 1977

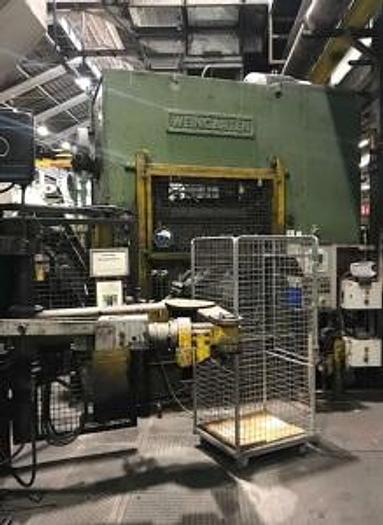

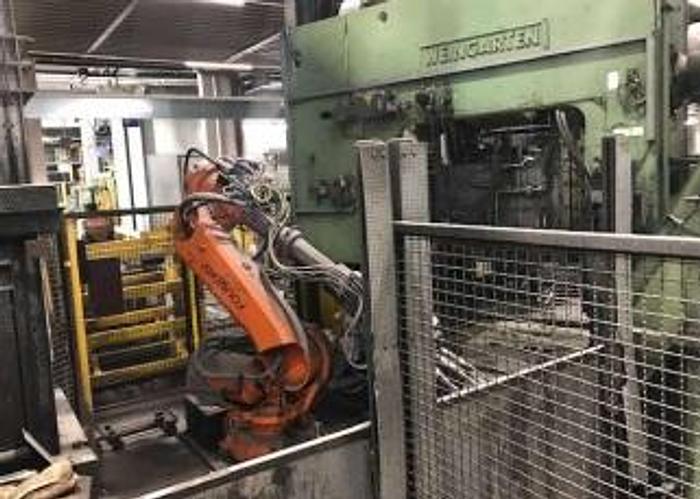

4. Trimming Press, Make Weingarten DE200, 12SP, YoM: 1976

5. Cooling Tower, Make Köbo, YoM: 1976

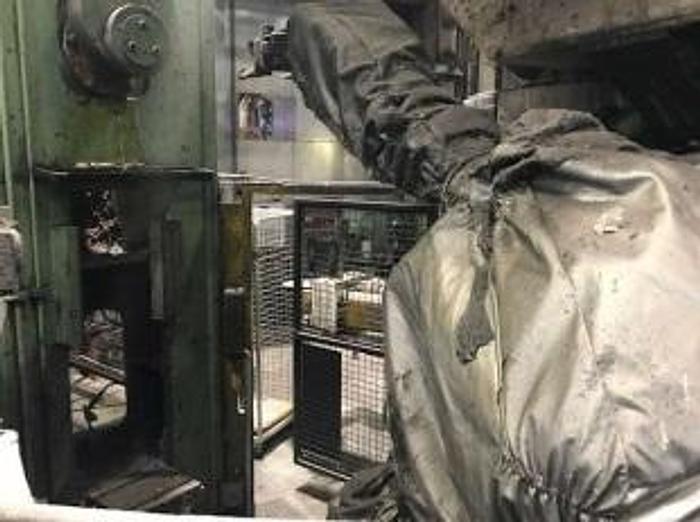

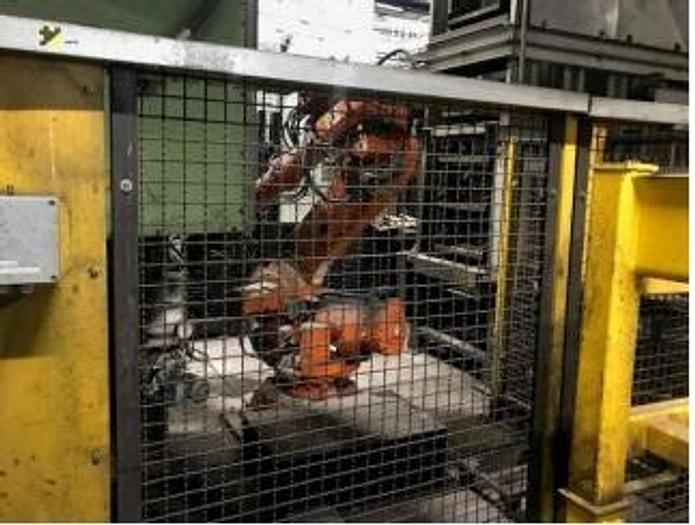

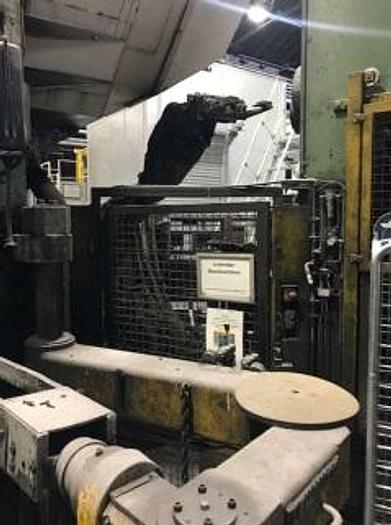

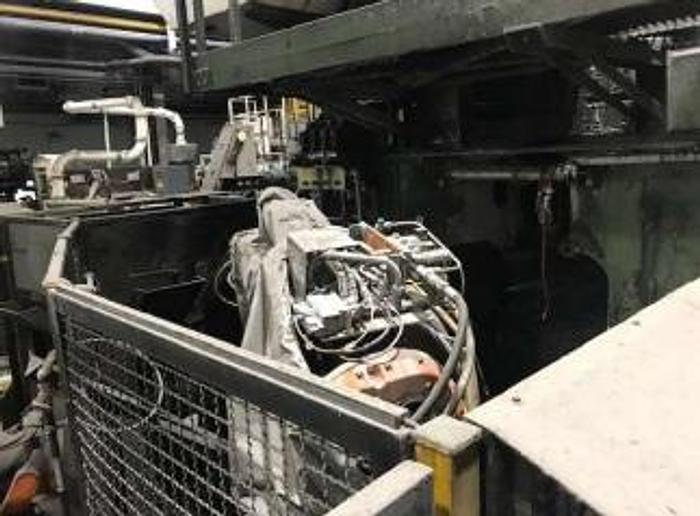

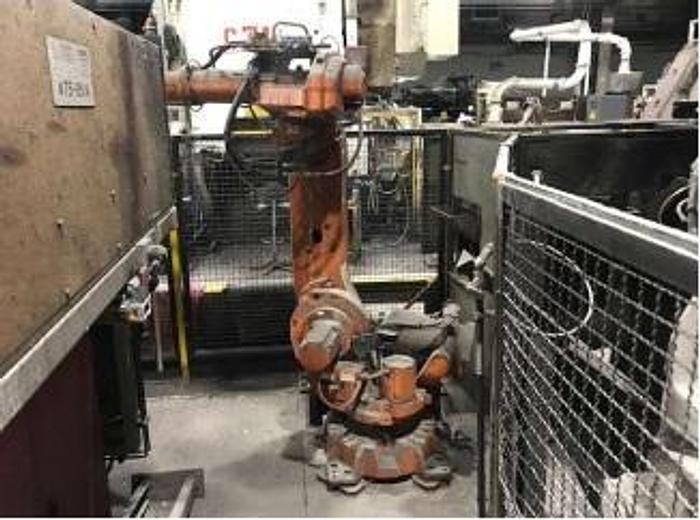

6. (6) Robots, Make ABB IRB6620-150/2,2, YoM: 2009
