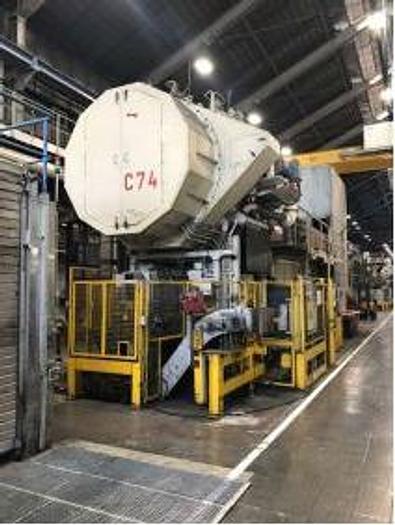

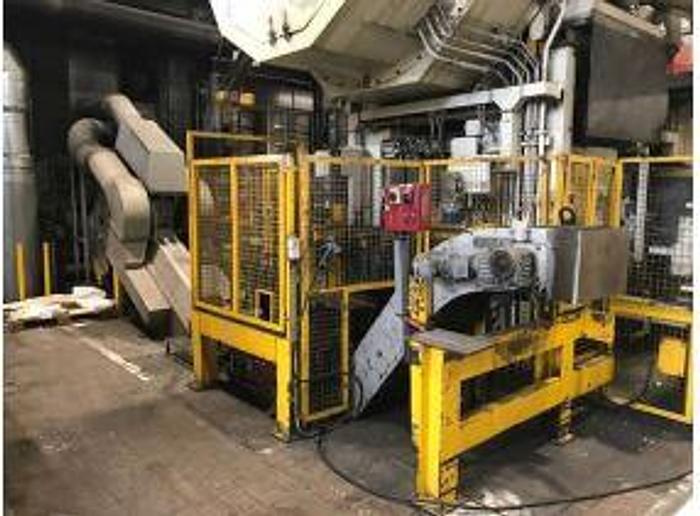

Hot Forging Line Eumuco AMP1600
Specifications
Manufacturer | Eumuco |
Model | AMP1600 |
Year | 1986 |
Condition | Used |
Stock Number | MA2476 |
Item condition | Good condition |
Capacity tons | 1600 |
Description
Capacity : 1600 tons,
Clear stand width : 1160 mm,
Table clamping Surface:
Width from left to right : 1120 mm,
Depth front to back : 1400 mm,
Slide clamping surface :
Width from left to right : 1180 mm,
Depth front to back : 1120 mm,
Clear heights between table and carriage :
Stroke and slide adjustment below : 1026 mm,
Stroke and slide adjustment at top : 1355 mm,
Plunger adjustment path : 18 mm,
Ram output
Ram ejector stroke: approx . 32 mm (mechanical),
Table ejector stroke : up to 130 mm (hydraulic),
Ram stroke : 310 mm,
Number of strokes per minute : 80 max.
EHA automatic walking beam
Step : 0-400 mm,
Lifting stroke : 0-250 mm,
Additional front stroke max : 300 mm,
Opening stroke : 0-200 mm,
Load capacity max. : 100 kg,
Performance
Rated power : 130 kW,
Working capacity : 180 kJ,
Connection values :
Control voltage (AC) : 230 V,
Frequency : 50 Hz
Connected load : 285 kVA
Compressed air required : approx. 100 m3/h
- Hydr. Tipping Feeder and Spiral Conveyor, Make Fröhlich, YoM: 2002
- Induction Furnace, Make AEG Elotherm BTH 2/4805, YoM: 2002

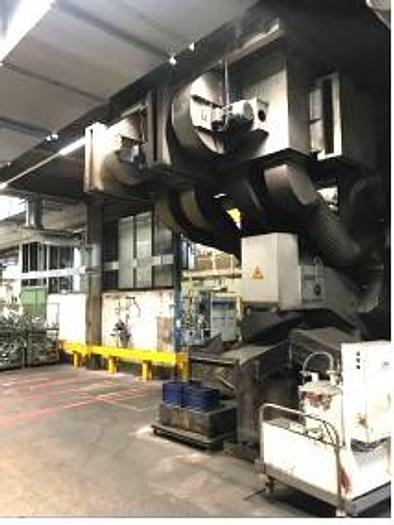

- Forging Press, Make Eumuco AMP 1600, YoM: 1972/2002
- Scraper Conveyor
- Transport Band, Make Comes, YoM: 2002
