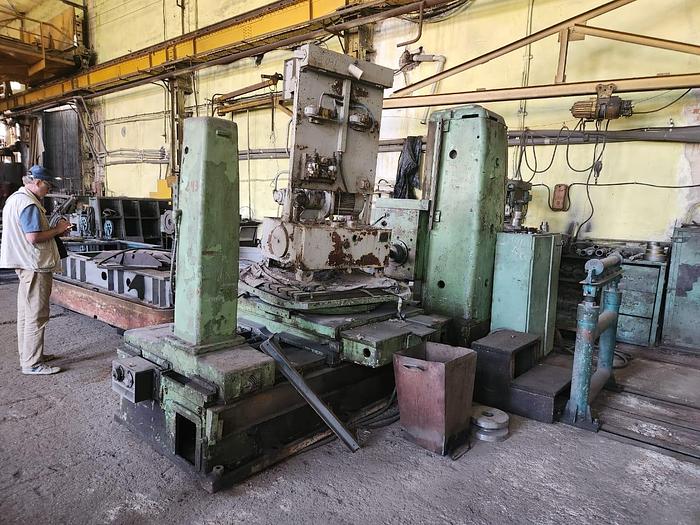

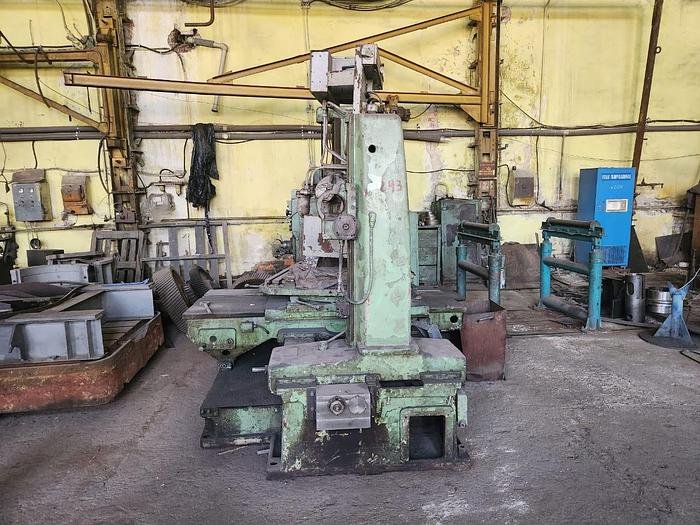

Lathe Vertical Turning Tos WH80

Spindle diameter : 80 mm (taper MK5),

Max boring diameter by standard toolholder : 610 mm,

Max stroke of toolslide (Max. width of processing surface) : 250 mm,

Longitudinal displacement of the table : 1250 mm,

Table size : 1120 x 1000 mm,

Max. weight of workpiece: 2000 kg

Traveling, mm: X-1150; Y-950 ; Z-1250; W: 510,

Faceplate diameter: 520 mm,

Spindle speed range (21 steps): 14 - 1400 Rpm,

Feeds (21 steps): 0,025 up to 240 mm/min,

Rapid feeds : 2600 mm/min,

Power of rapid feed motor: 1,1 kW,

Power of main drive motor : 7,5 kW,

Dimensions: L x W x H: 4950 x 2500 x 2550 mm,

Weight of machine about: 9250 Kg,

Completed with block level and Tailstock but w/o Faceplate.
