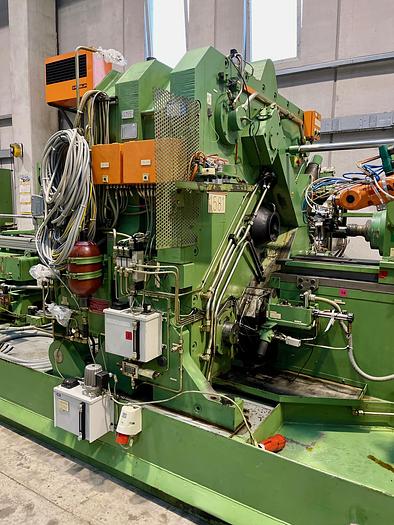

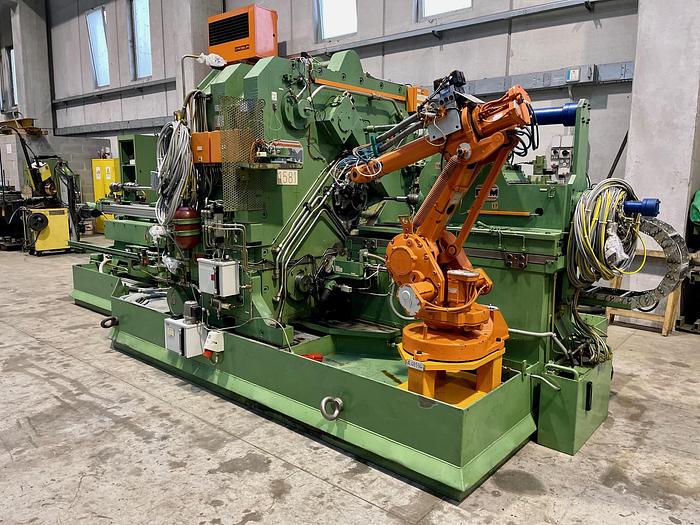

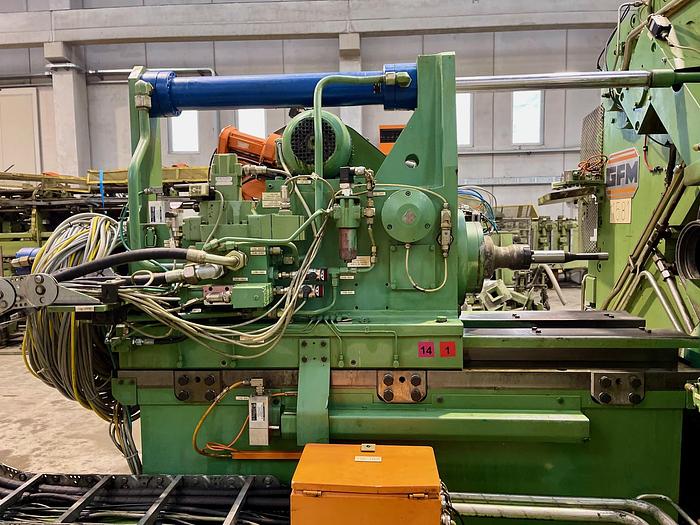

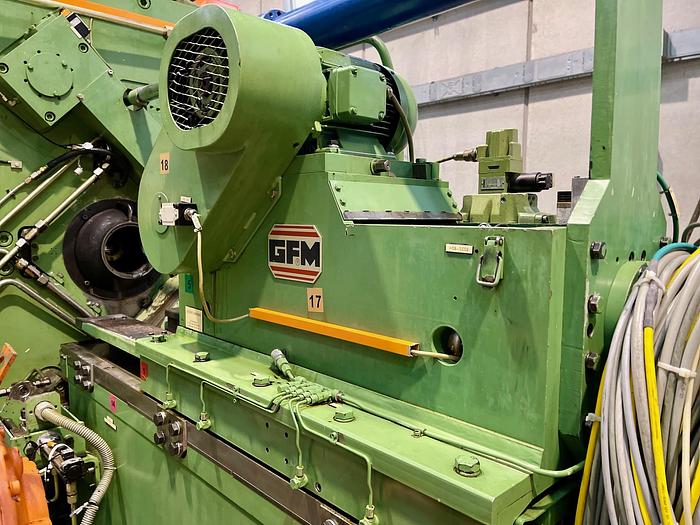

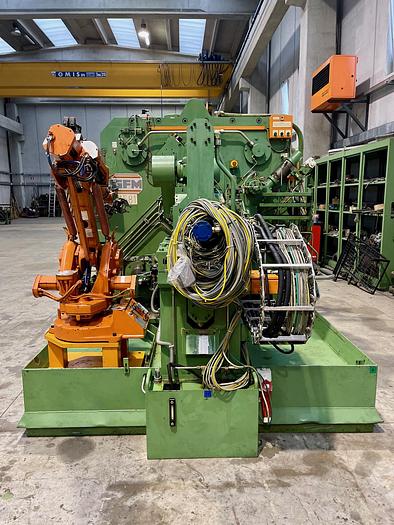

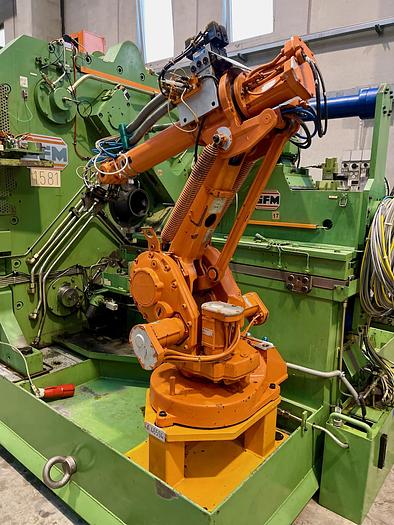

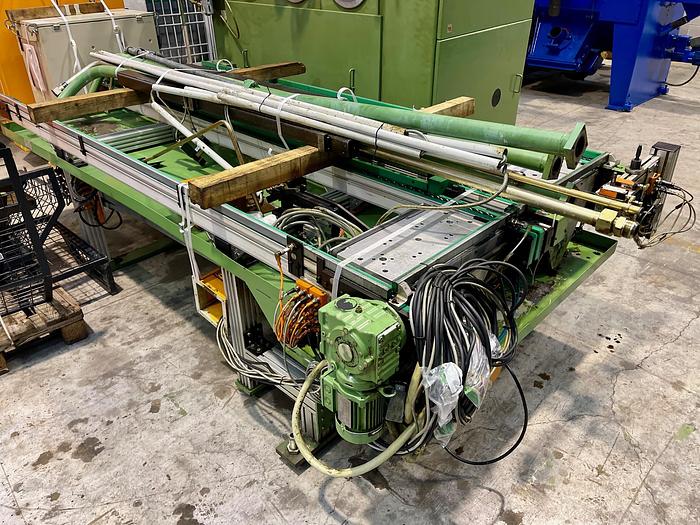

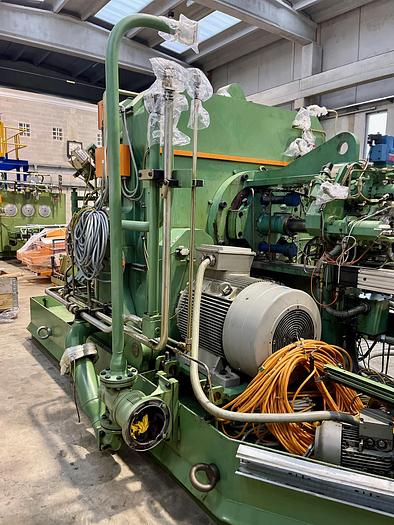

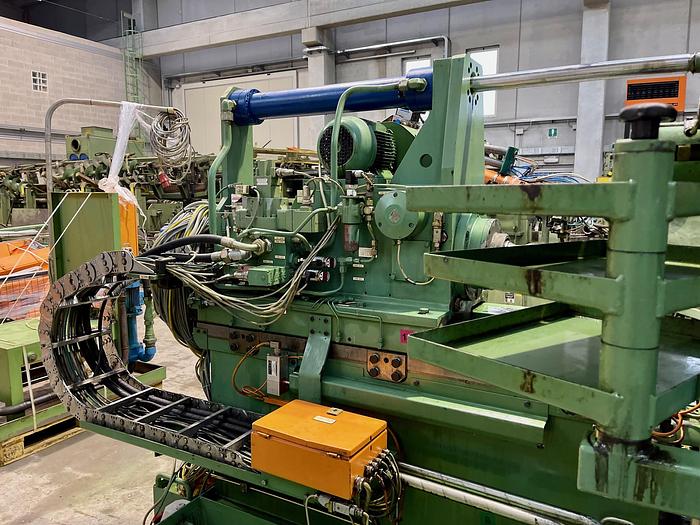

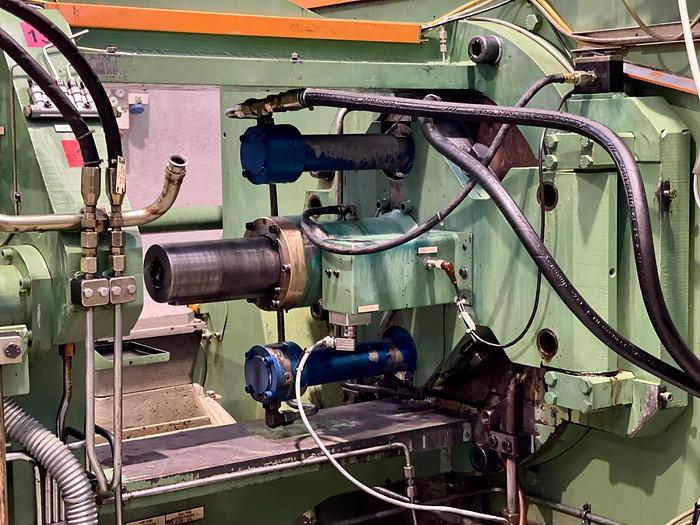

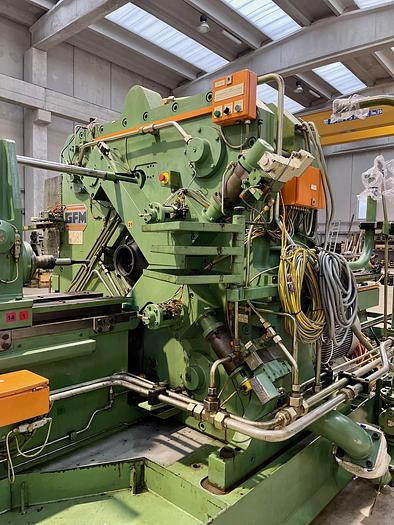

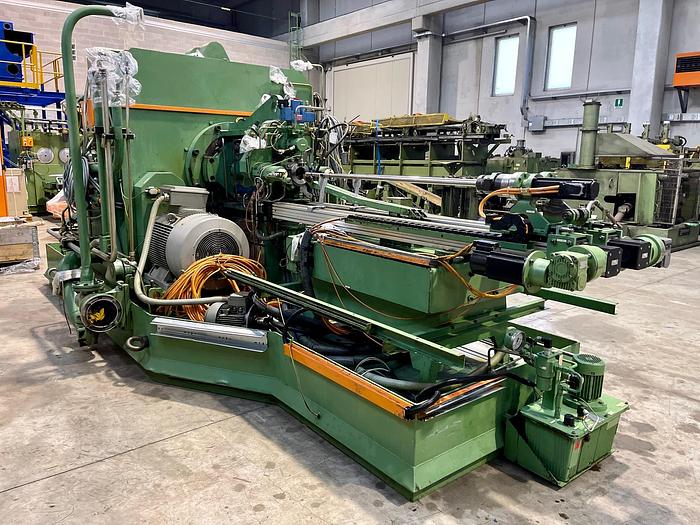

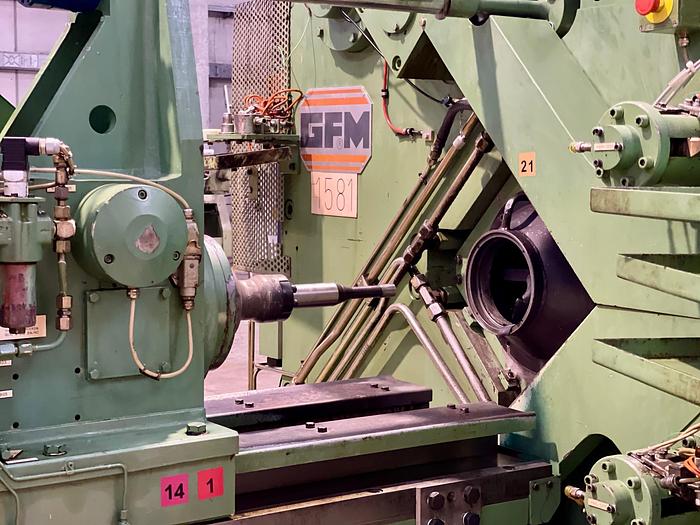

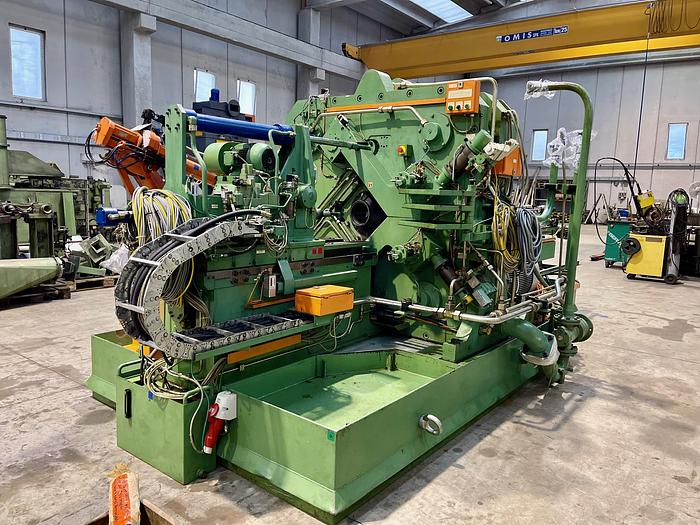

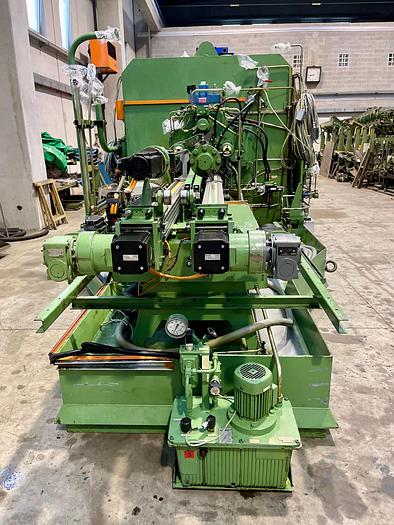

Radial Forging GFM SKK10

Shear force per hammer : 1250 kN,

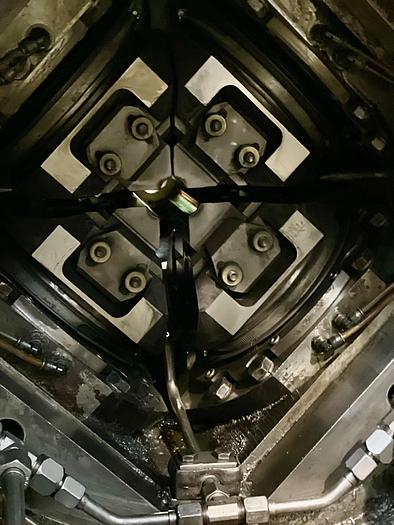

Number of hammers : 4,

Strokes per min : 1500 / min,

Diameter adjustment range : 60 mm,

Forging eccentricity : 2,5 mm,

Hammer length : 106 mm,

Bar/Tube diameter max : 58 mm,

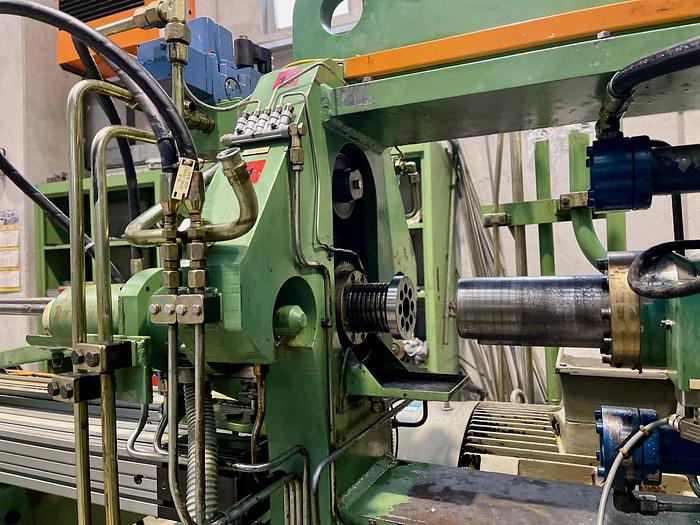

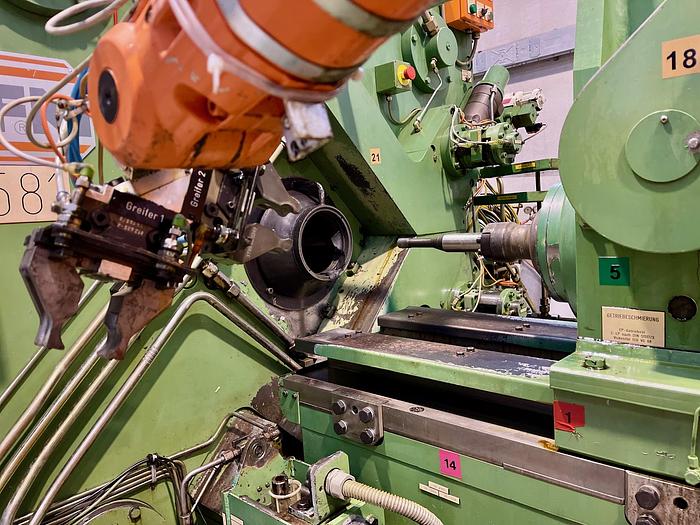

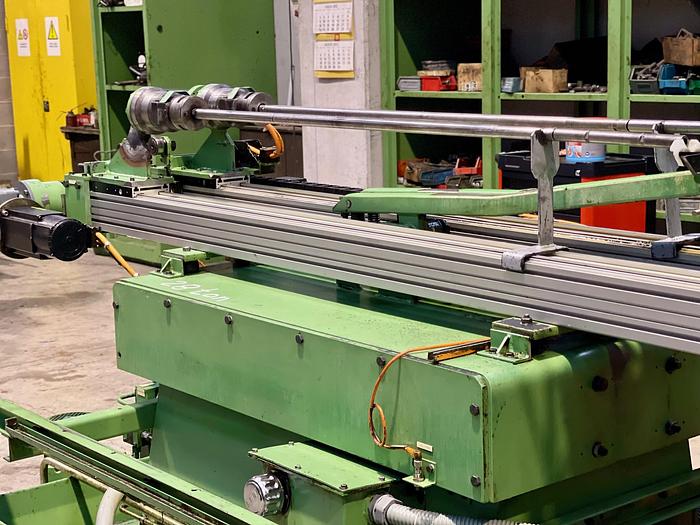

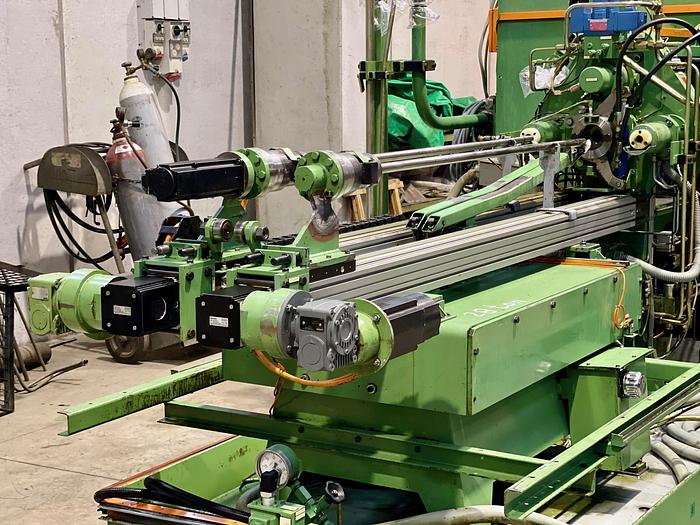

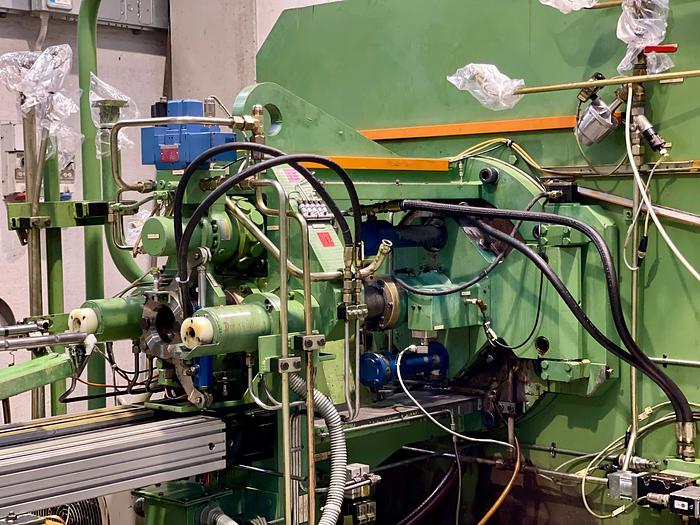

Clamping head:

Feed force : 1-70 kN,

Feed : 5-500 mm/s,

Clamping head bed:

Workpiece length max : 175 mm,

Clamping head stroke : 600 mm,

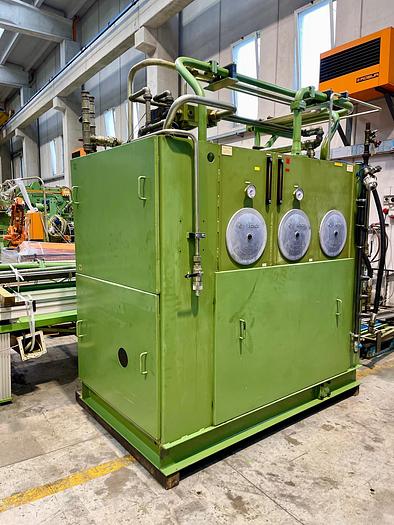

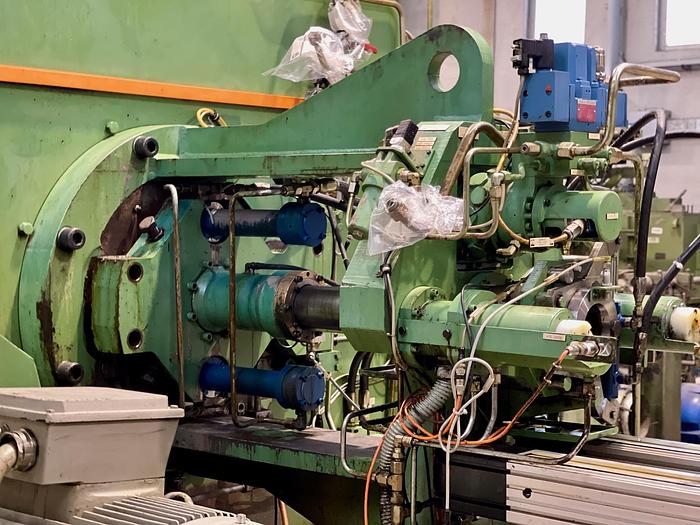

Hydraulic counter-holder:

Clamping force max : 2-40 kN,

Stroke : 200 mm,

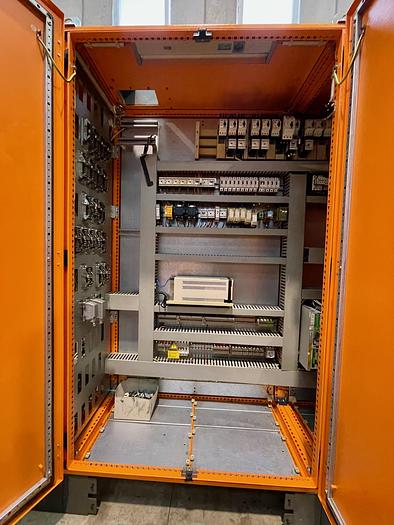

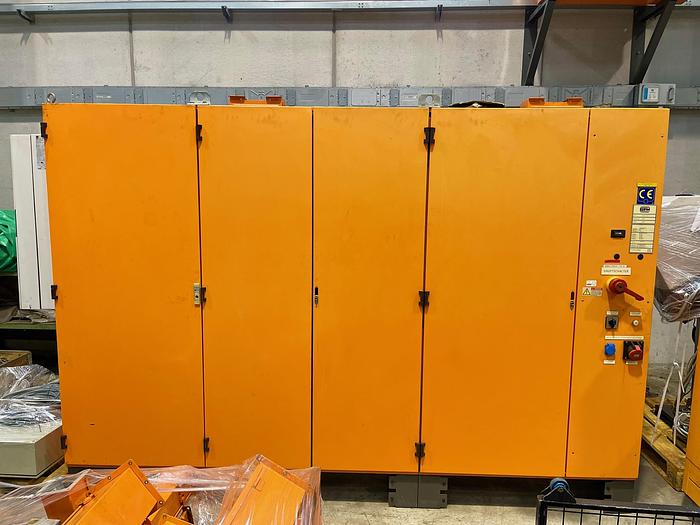

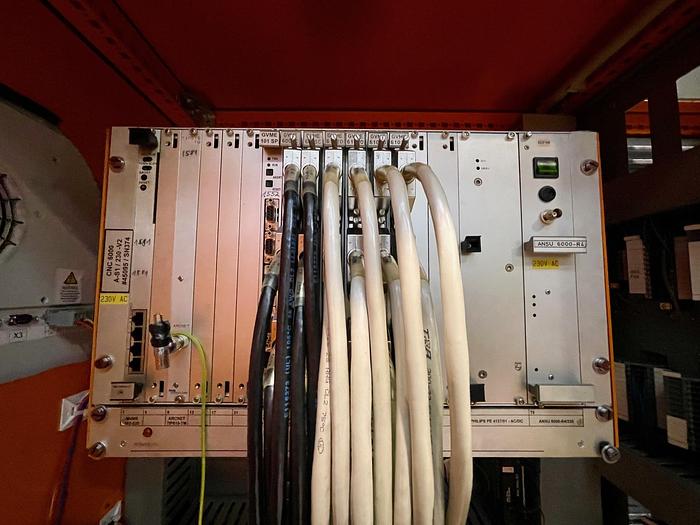

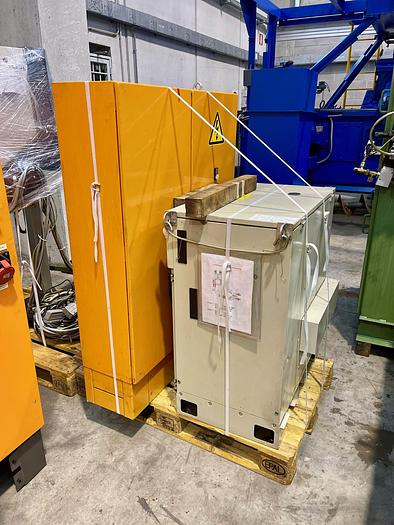

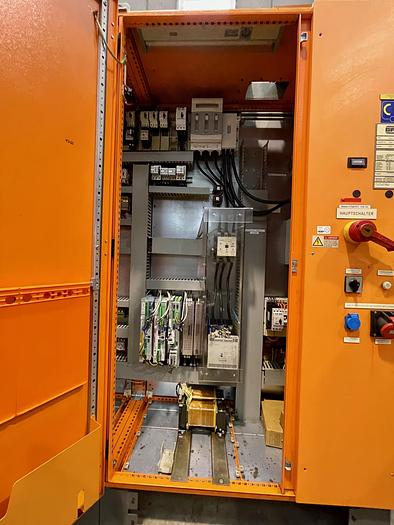

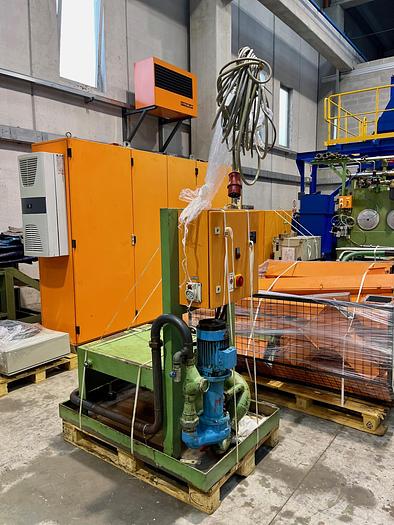

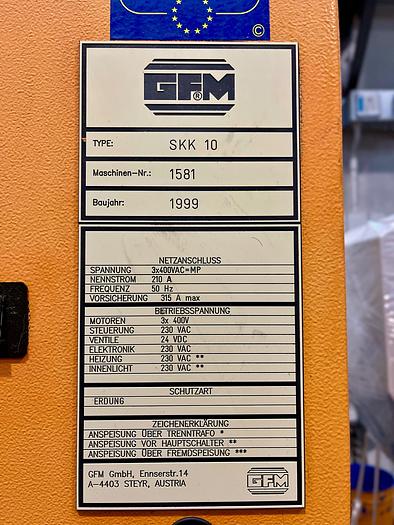

Electric Equipment:

Forging motor : 75 kW 400 V 50 Hz,

Clamping head motor : 2,2 kW 400 V 50 Hz,

Various hydraulic motors : 35 kW 400 V 50 Hz,

Remaining consumers : 4,5 kW 400 V 50 Hz,

Auxiliary equipment : 1,3 kW 220 V 50 Hz,

Total nominal power : 118 kW,

Cooling water:

Pressure : 3-6 bar

Consumption at 35°C entry / 40° C exit : 9 m3/h,

Air:

Pressure min : 5 bar

Consumption (air drawn in) : 1 Nm3/min.

Total weight : 30 tons.

Parts were being produced on this machine Automotive shafts (Bosch)

It can be used for any forging application: Automotive parts, shafts, steering shafts, cam shafts, barrels.

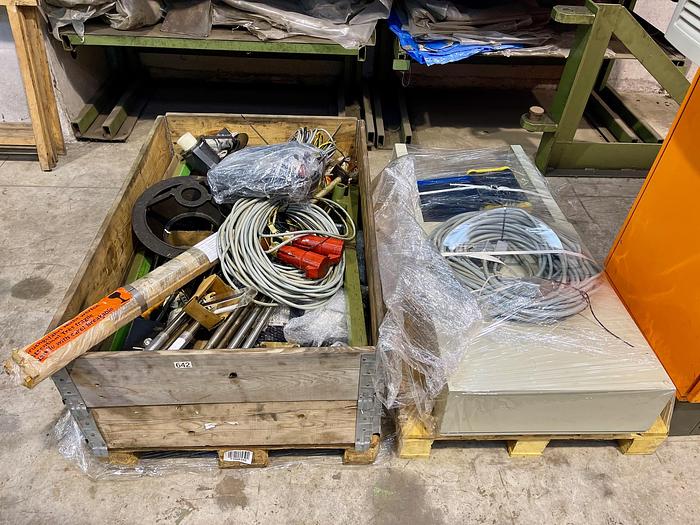

All technical documents and manuals available.
