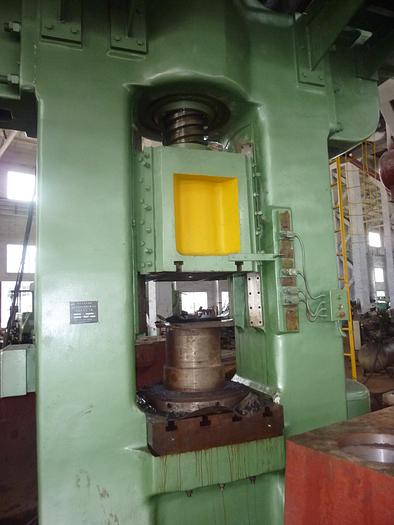

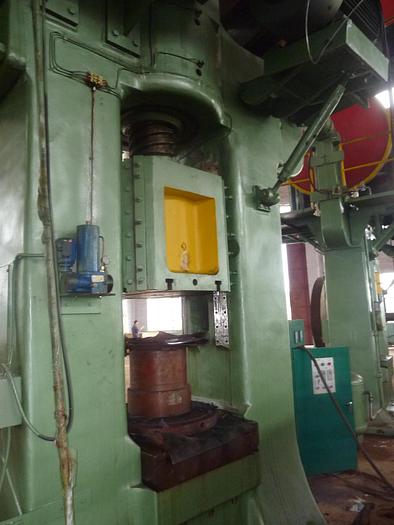

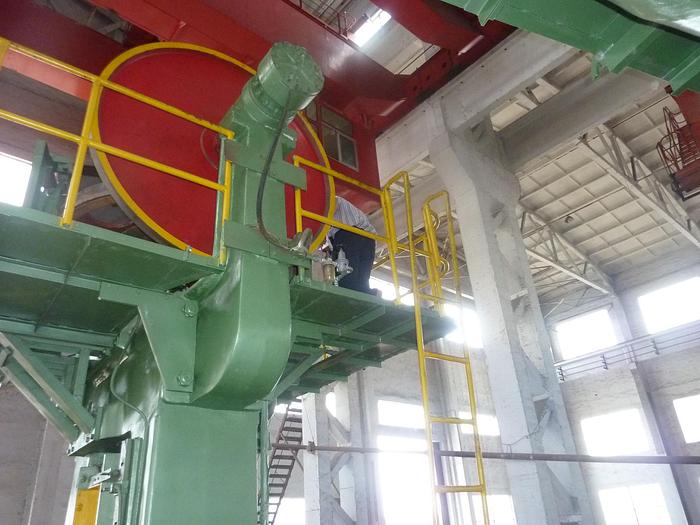

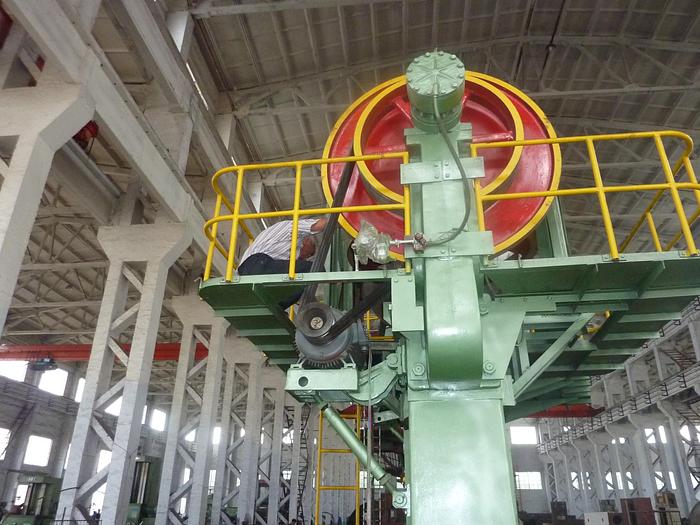

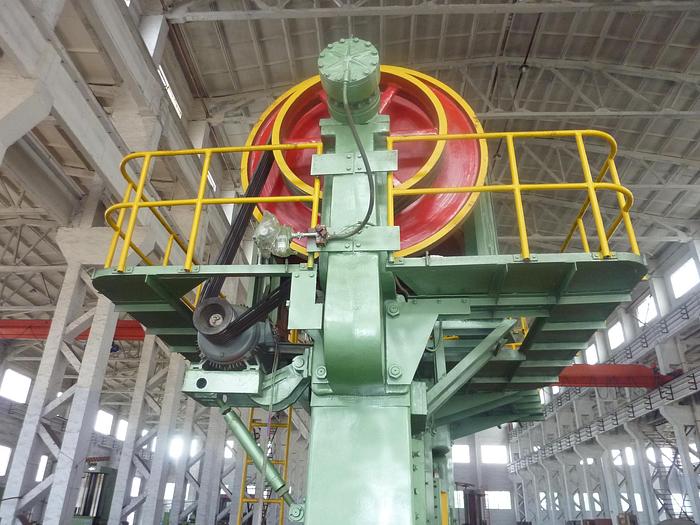

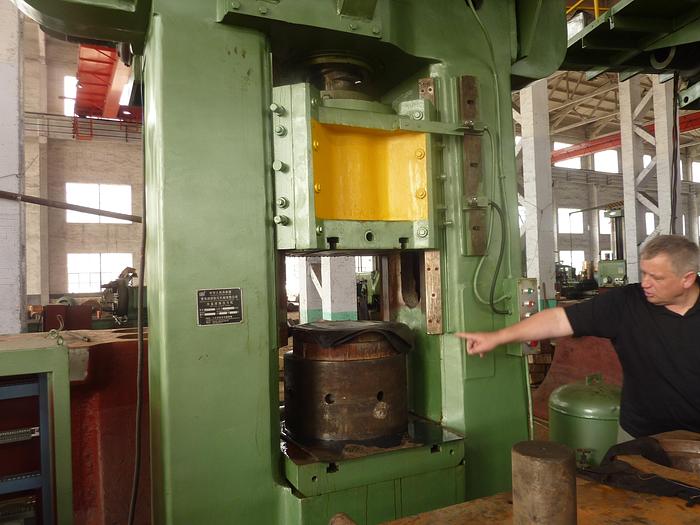

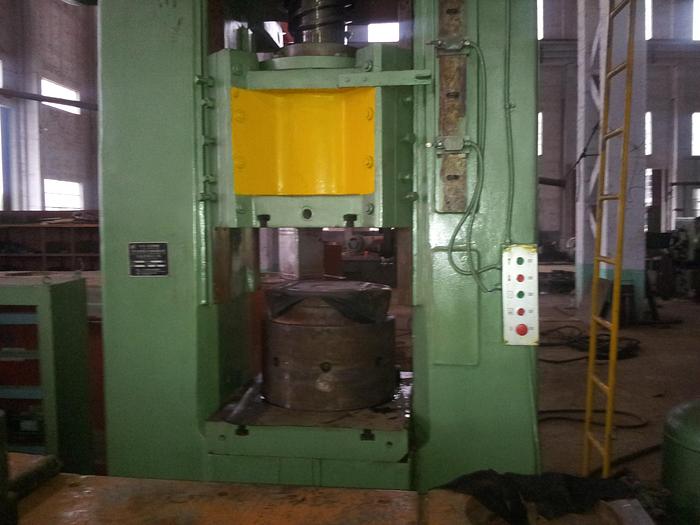

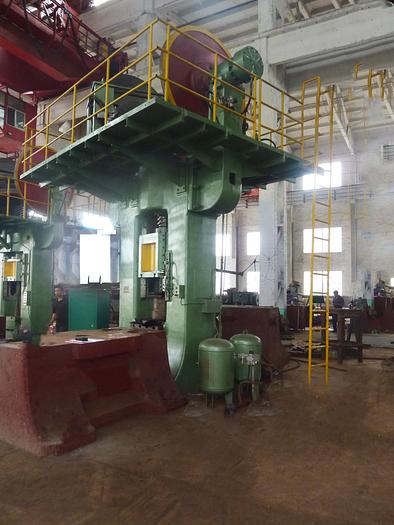

630 tons Press Friction Screw 53-630A
Specifications
| Manufacturer | Qingdao Runtrust Yiyou Forging Machinery |
| Model | 53-630A |
| Year | 2011 |
| Condition | Used |
| Stock Number | MA2455 |
| Item condition | Good condition |
| Capacity tons | 630 |
Description

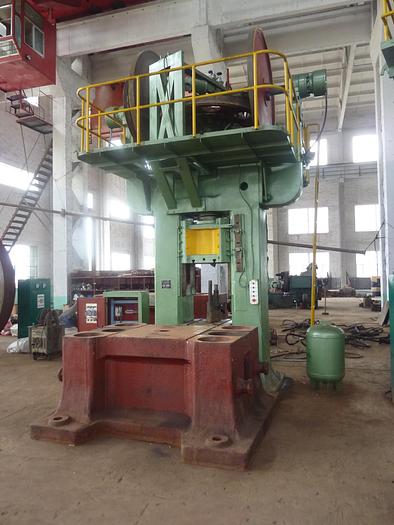

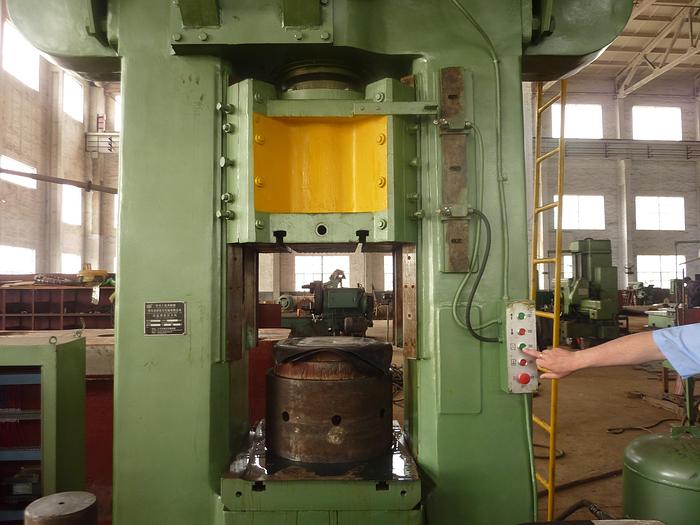

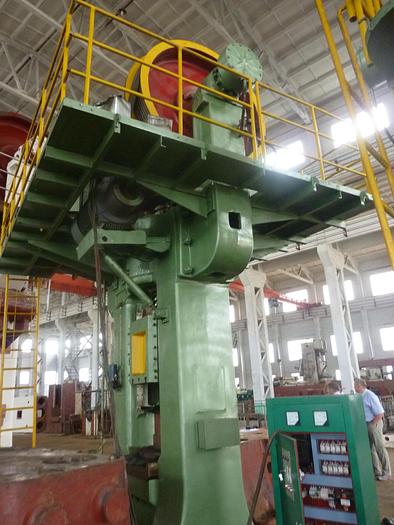

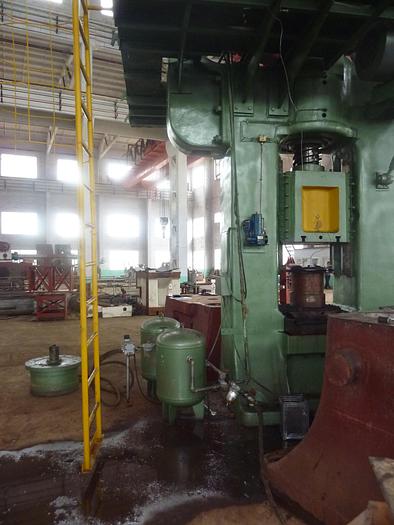

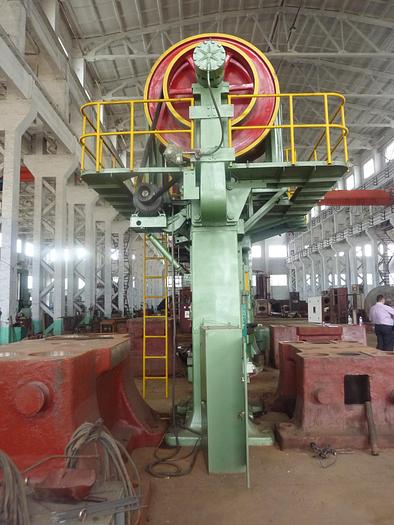

Double Disc Friction Screw Press
Capacity : 630 tons,
Nominal Horse Power : 6300 KN,
Energy : 80 KJ,
Ram stroke : 600 mm,
No. of stroke : 11 min,
Guide strip distance : 650 mm,
Table dimension (Working Table-board) : 920 x 820 mm,
Ram Bottom (Guide Block Underside) : 760 x 700 mm,
Table bolster height : 180 mm,
Mini die height : 470 mm,
Ejecting stroke : 100 mm,
Overall Dimension Front Back × Left Right × Height : 4600 x 4600 x 6060 mm,

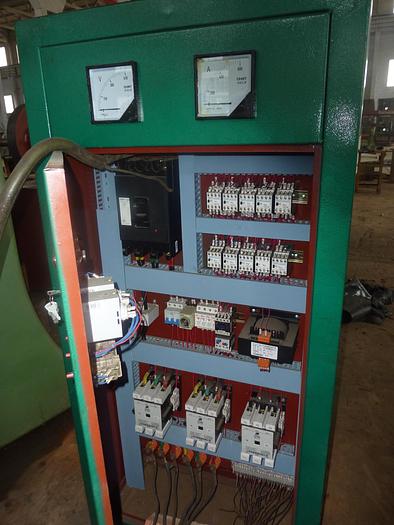

Electric Power of Mainframe : 55 KW,
Height above the ground : 5910 mm,
Weight : 42 tons.
