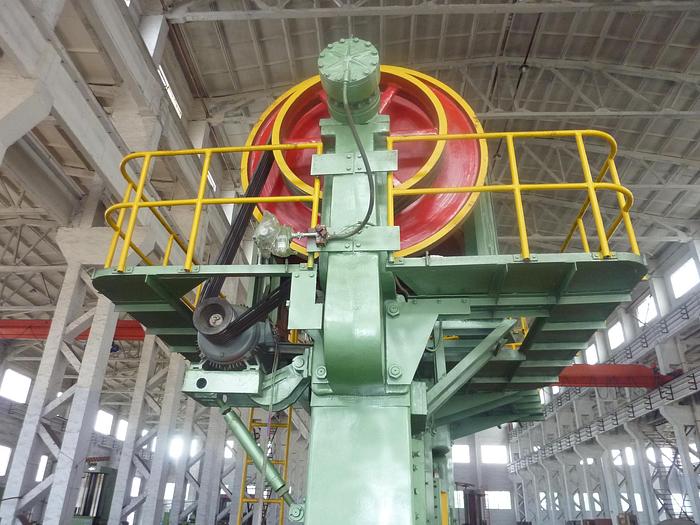

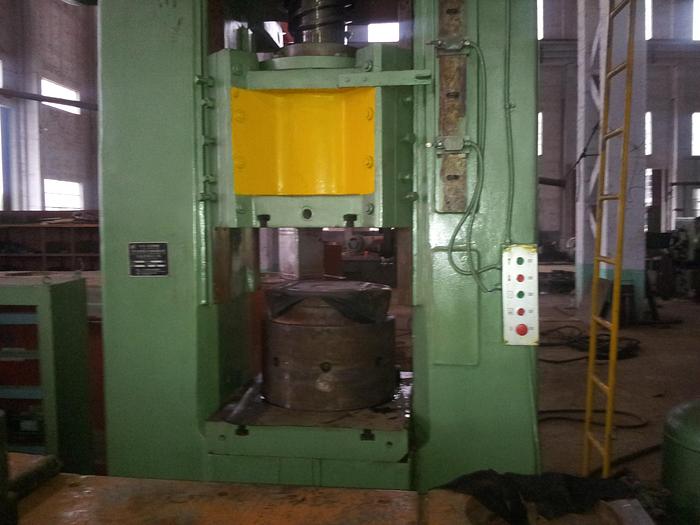

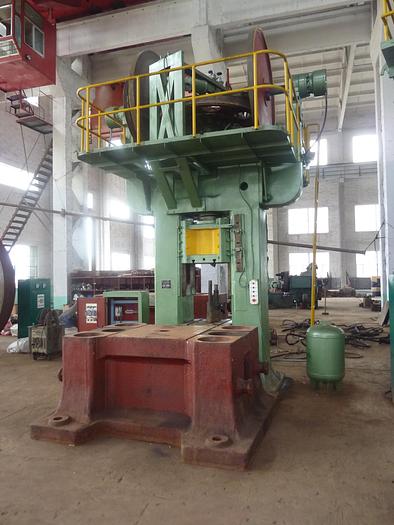

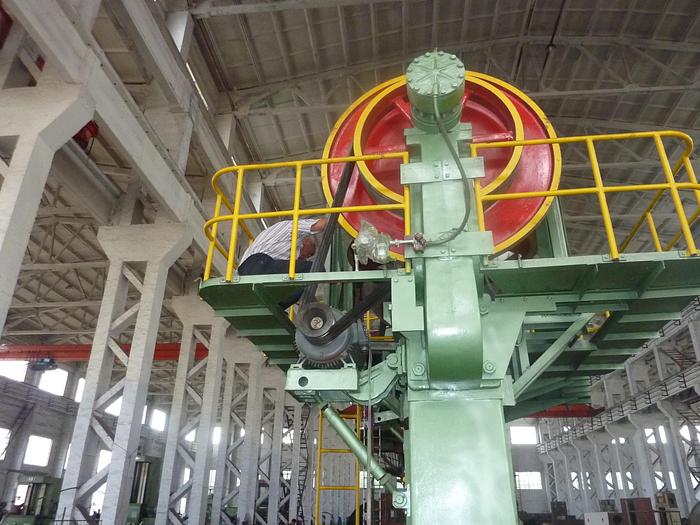

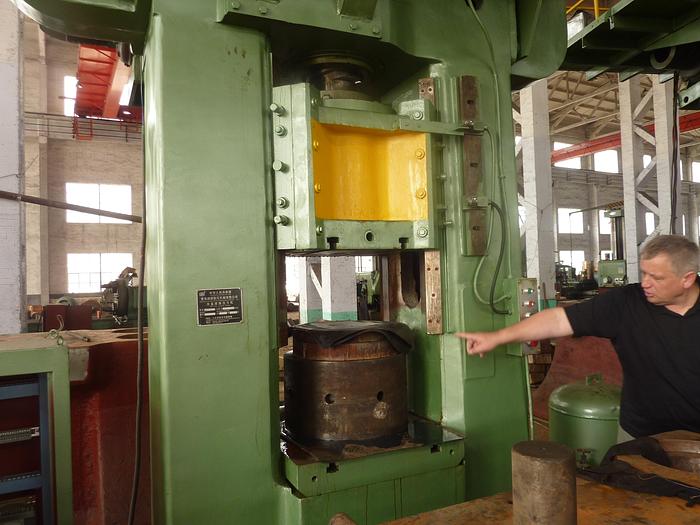

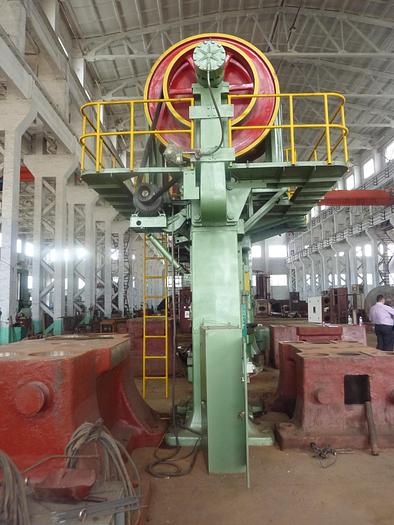

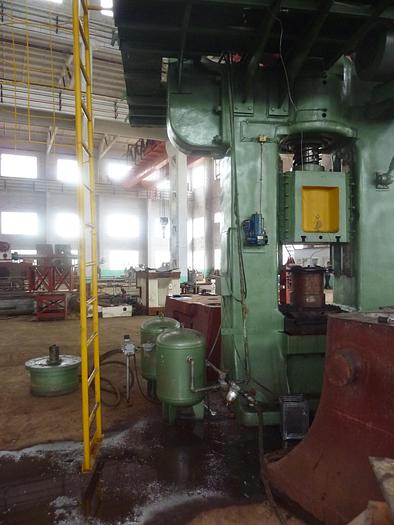

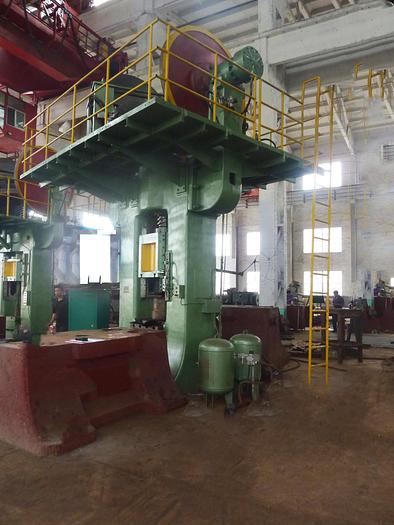

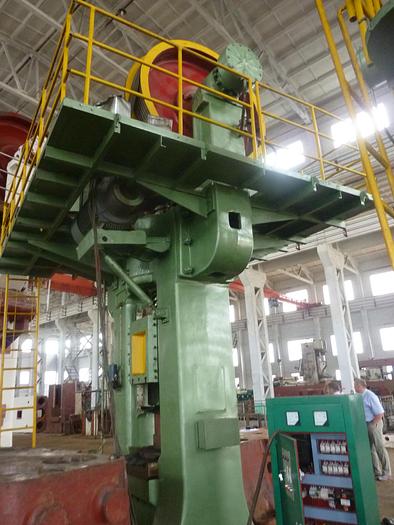

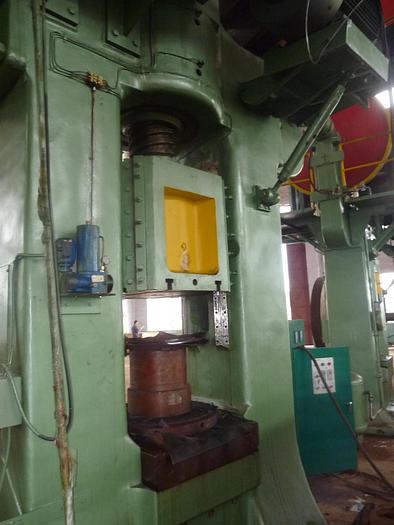

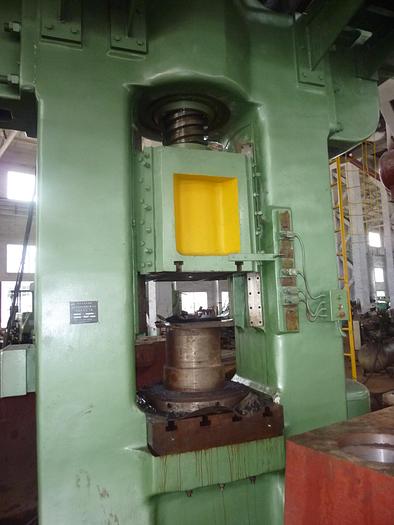

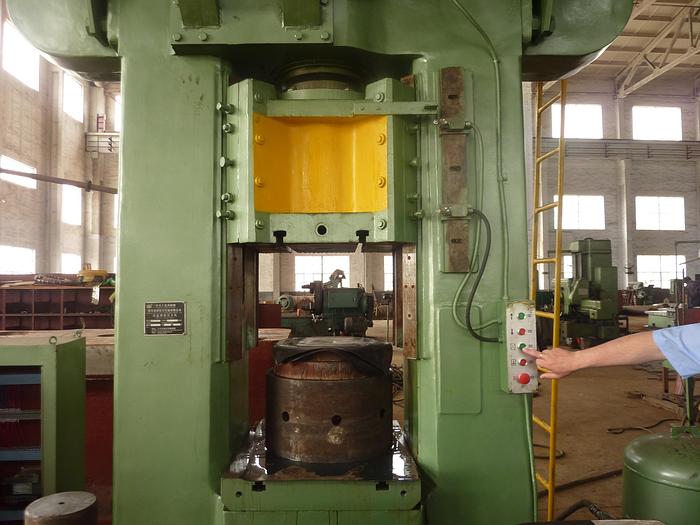

400 tons Press Friction Screw J53- 400D

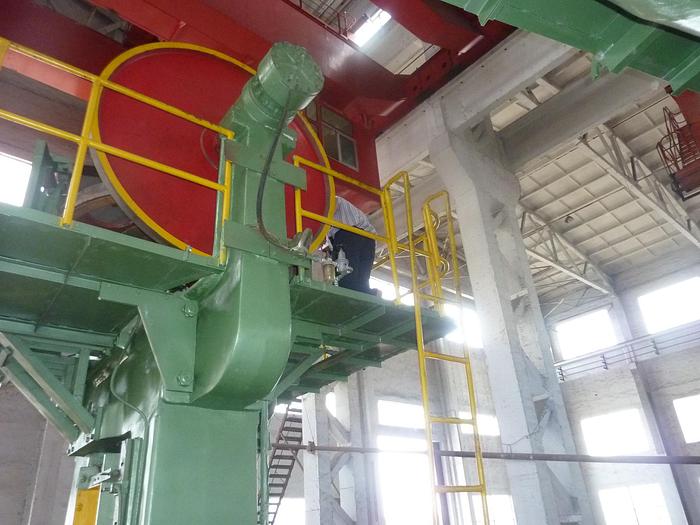

Double Disc Friction Screw Press

Capacity : 400 tons,

Nominal Horse Power : 4000 KN,

Energy : 40 KJ,

Ram stroke : 500 mm,

No. of stroke : 14 min,

Guide strip distance : 650 mm,

Min. Closing Height : 520 mm,

Table dimension (Working Table-board) : 820 x 730 mm,

Ram Bottom (Guide Block Underside) : 636 x 636 mm,

Table bolster height : 120 mm,

Mini die height : 400 mm,

Ejecting stroke : 100 mm,

Overall Dimension Front Back × Left Right × Height : 3200 x 3600 x 5465 mm,

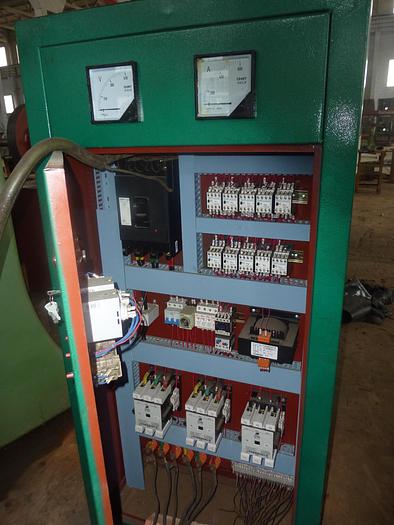

Electric Power of Mainframe : 30 KW,

Height above the ground : 5065 mm,

Weight : 22 tons.
