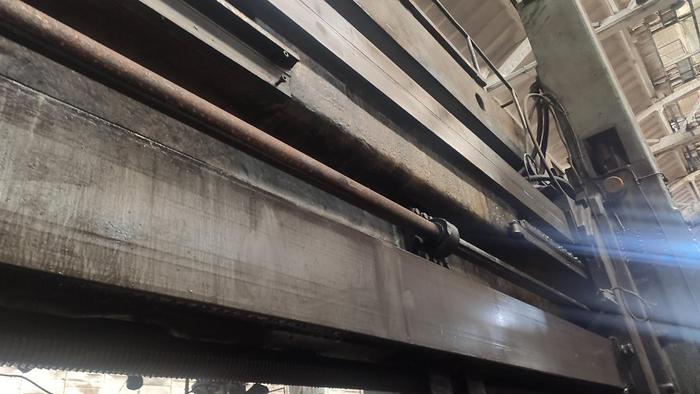

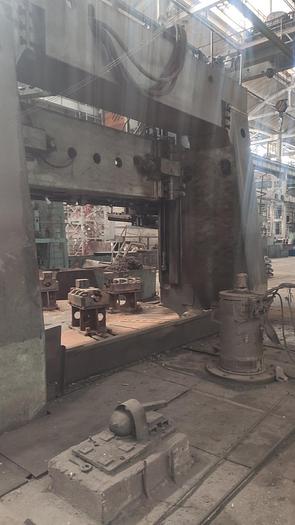

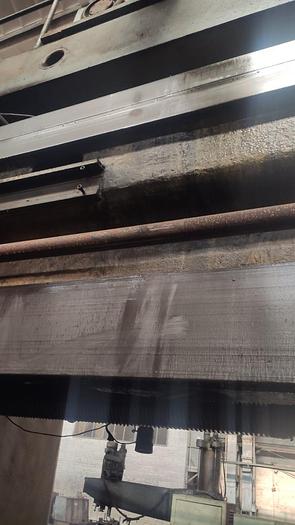

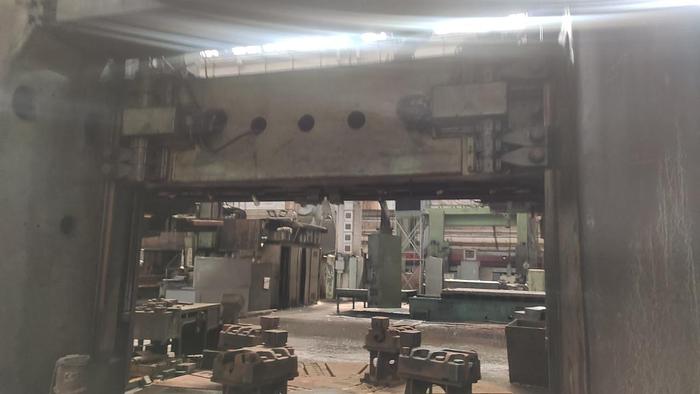

Lathe Vertical Turning Kolomna 1540

Diameter of workpieces accommodated (max) : 4000 mm,

Height of workpieces accommodated (max) : 2400 mm,

Weight of workpieces accommodated (max) : 50 tons,

Face plate diameter : 4000 mm,

Maximum ram slide stroke :

- top right hand turning : 1250 mm,

- top left hand combined : 1250 mm,

Maximum cutting moment applied on the table : 160 kN.m,

Range of face plate speeds : 0.52----48.7 r.p.m.,

Range of vertical and horizontal feeds : 0,059 ...470 mm/min,

Speed of ram slide and tool head rapid travel : 3125 mm/min

Power of primary motion electric motor (not less than) : 63 kW,

Overall dimensions of the machine :

- length : 5900 mm,

- width : 10100 mm,

- height : 7200 mm,

- height above the floor level : 6000 mm,

Mass of the machine with electrical equipment : 100 tons.
