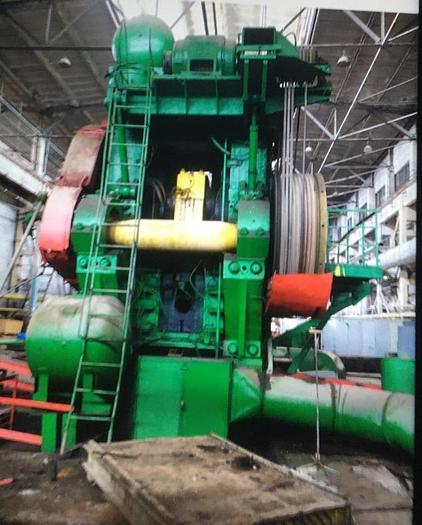

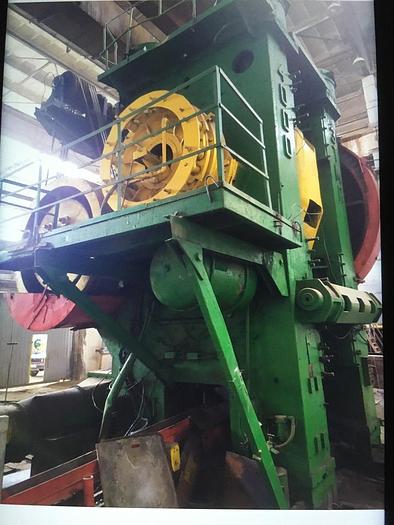

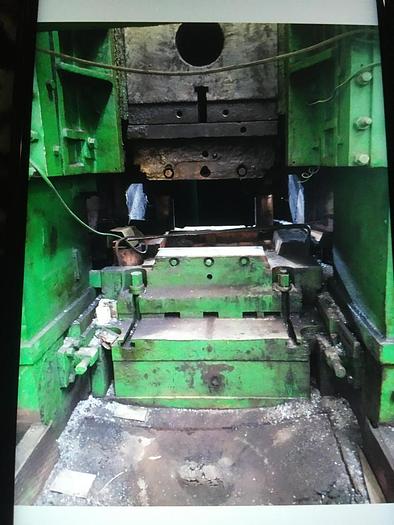

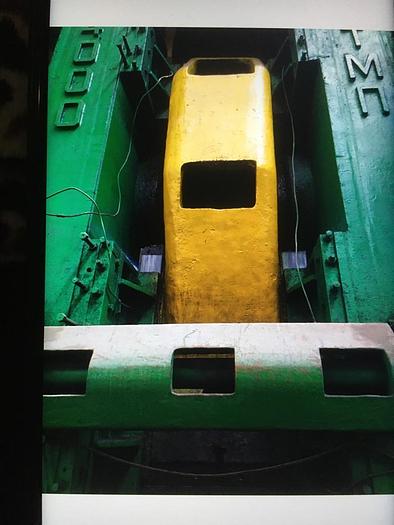

4000 ton Press Hot Forging TMP Voronezh Russia
Specifications
Manufacturer | TMP Voronezh Russia |
Model | K8546 |
Year | 1971 |
Condition | New |
Stock Number | MA2434 |
Item condition | Good working condition |
Capacity tons | 4000 |
Description
Capacity : 4000 tons,
Slide stroke : 400 mm,
Number of slide stroke per min : 50,
Min.enclosed height : 1000 mm,
Adjustment of distance from bed to slide : 15 mm,
Bed dimensions : L to R : 1570 mm,
F to B : 1620 mm,
Slide dimensions : L to R : 1420 mm,
F to B : 1420 mm,
Knockout stroke : Top knockout : 80 mm,
Bottom knockout : 70 mm,
Total power of drive : 250 kw,
Overall dimensions : L to R : 6300 mm,
F to B : 4850 mm,
Height : 7300 mm,
Weight approx. : 377 tons.
