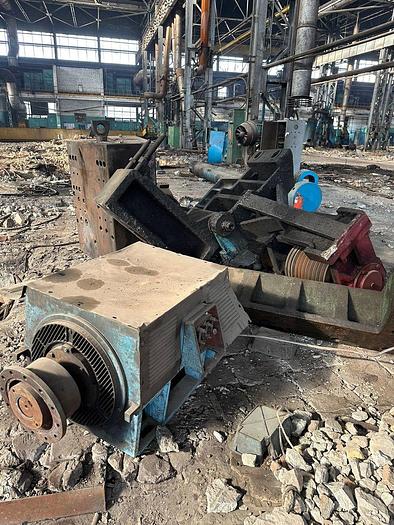

Upsetter Kramatorsk B1145A

13"

Capacity : 3150 tons,

Nominal force : 31500 kn,

Movable die stroke : 350 mm,

Maximum bar dia : 280 mm,

Maximum upsetting ram stroke : 700 mm,

Upsetting ram work stroke : 480 mm,

Upsetting ram return stroke with closed dies : 270 mm,

Measurements of the dies (L x W x H) : 1020 x 390 x 1300 mm

Distance between upsetting ram and dies stroke forward : 290 mm,

Distance between bed and unmovable die : 280 mm,

Numbers of ram stroke per minute : 23,5 hub/min,

Main drive motor power : 250 kw,

Voltage : 380/50 Hz

Complete power of the electric equipment : 260 kw,

Overall dimensions: Floor space : 10305 x 7150 mm,

Height above floor level : 4960 mm,

Mass : 421 tons.

Mechanically complete, no electric

Original manual is available.
