Hot Forging Line Jaewoo (J&H)
Specifications
| Manufacturer | Jaewoo (J&H) |
| Model | JFP1350 |
| Year | 2019 |
| Condition | Used |
| Stock Number | MA2389 |
| Item condition | Good condition |
| Capacity tons | 1350 |
Description

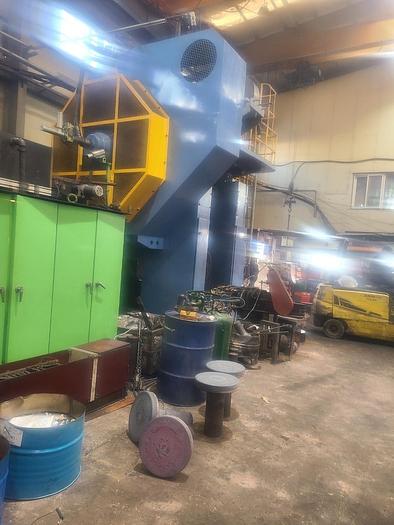

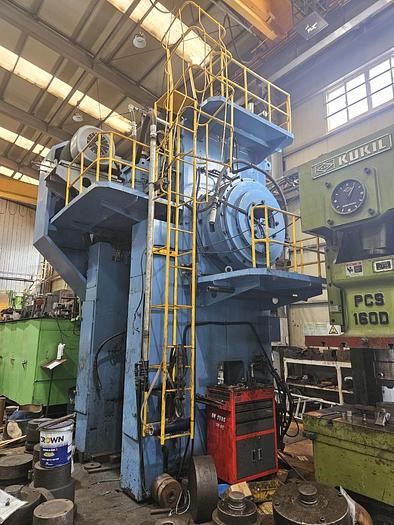

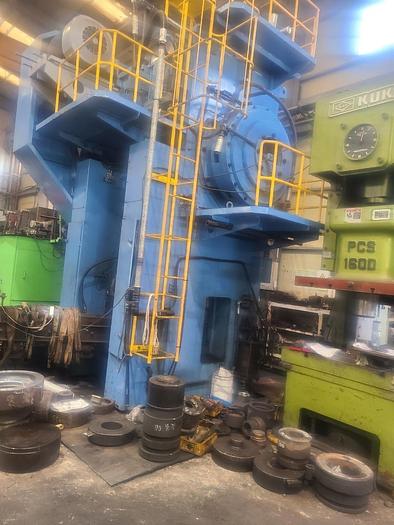

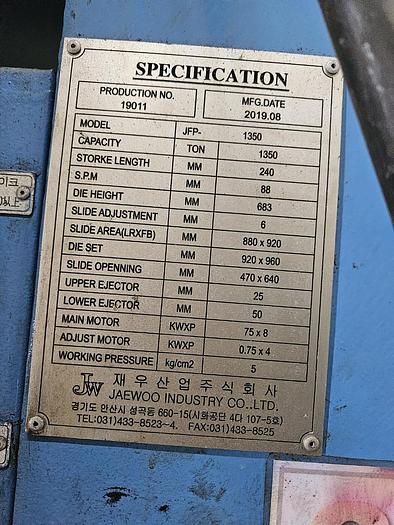

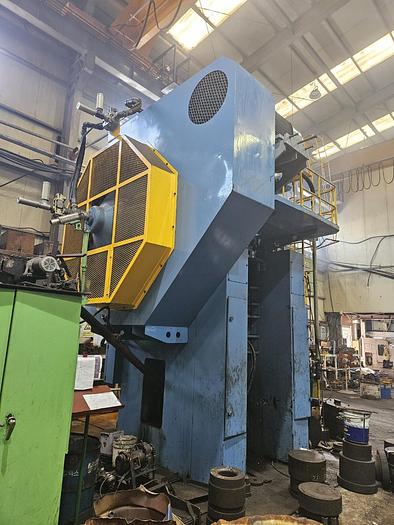

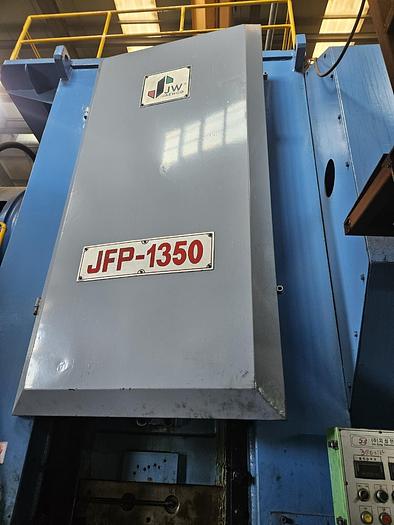

1) Press Hot Forging
Capacity : 1350 tons,
Stroke : 240 mm,
Stroke per min : 88,
Die height : 683 mm,
Slide adjustment : 6 mm,
Slide area (LR x FB) : 880 x 920 mm,
Bolster area : 920 x 960 mm,
Slide opening : 470 x 640 mm,
Upper ejector : 25 mm,
Lower ejector : 50 mm,
Main motor : 75 x 8 kW x P,
Adjust motor : 0.75 x 4 kW x P,
Working Pressure : 5 kg/cm2.
Weight 70 tons

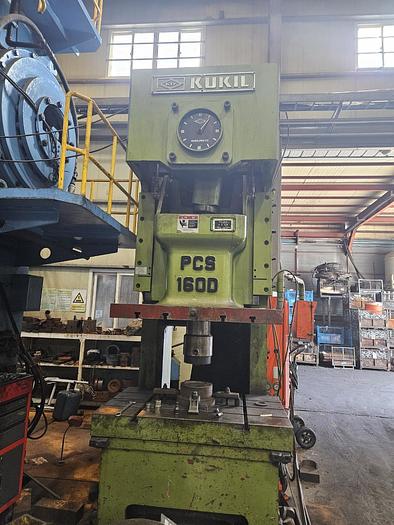

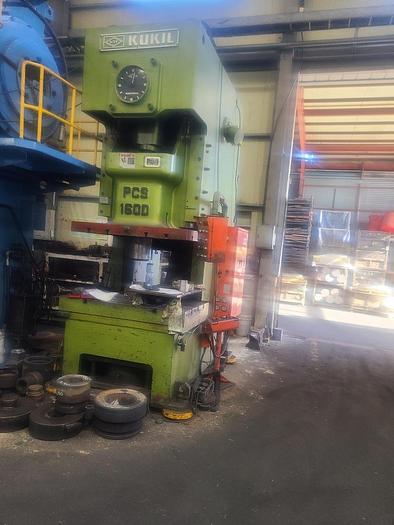

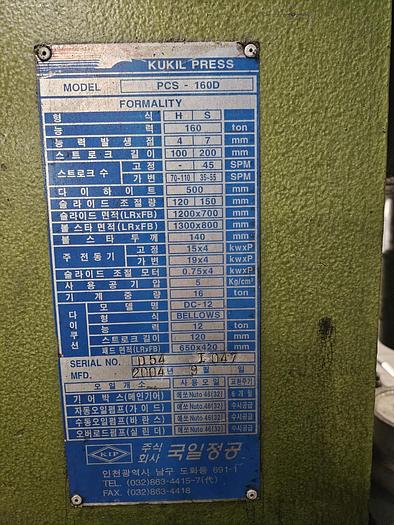

2) Trimming Press
Make : Kukil,
Model : PCS 160D,
Yom : 2004,
Capacity : 160 tons,
Stroke per min. : 45,
Die height : 500 mm,
Slide area : 1200 x 700 mm,
Bolster area : 1300 x 800 mm,
Die cushion : 2 tons.

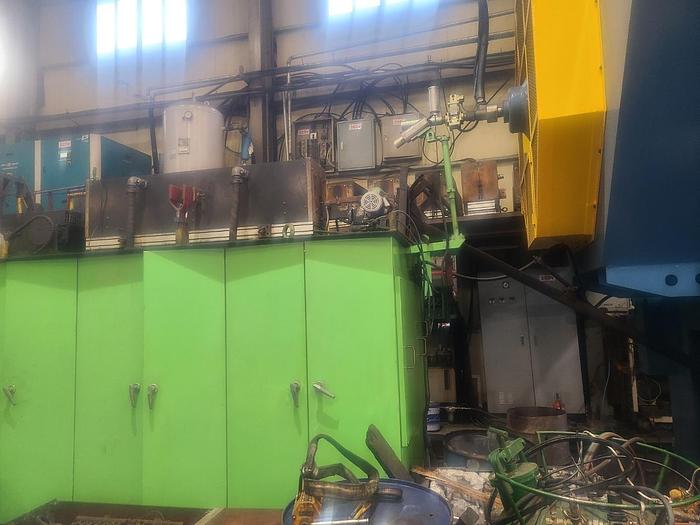

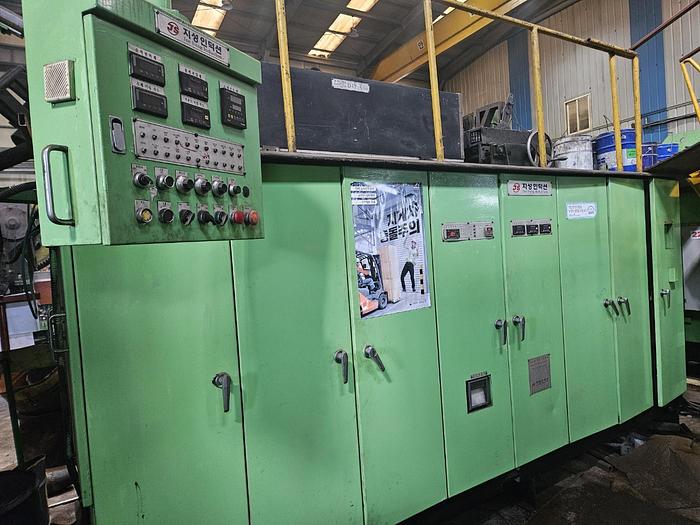

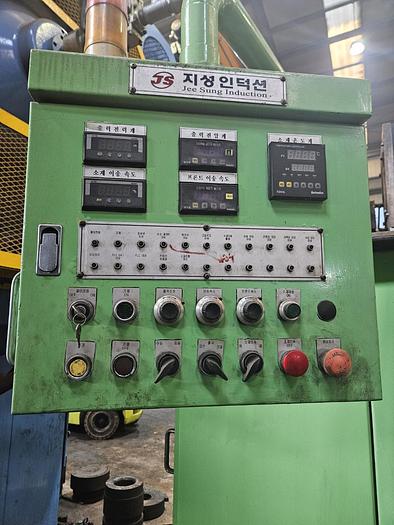

3) Induction Heater
Make : Jee Sung,
Model : IH242-600,
Yom : 2017,
Input voltage : 3P 580 V,
Output voltage : 900 V,
Output power : 600 kw,
Frequency : 2.4 Khz.
Technical manuals available.
Cold running is possible.
