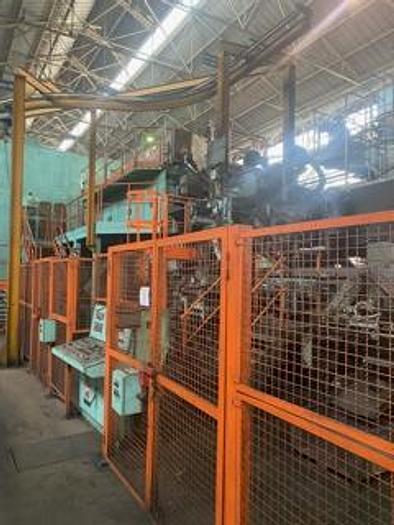

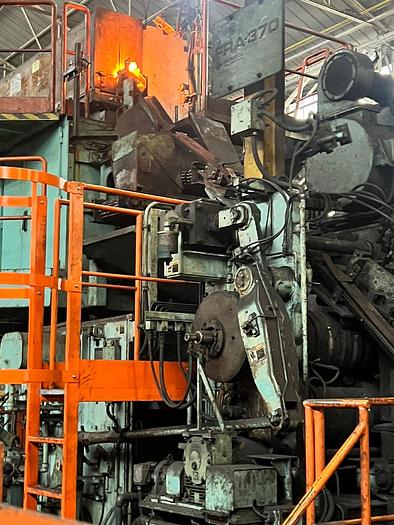

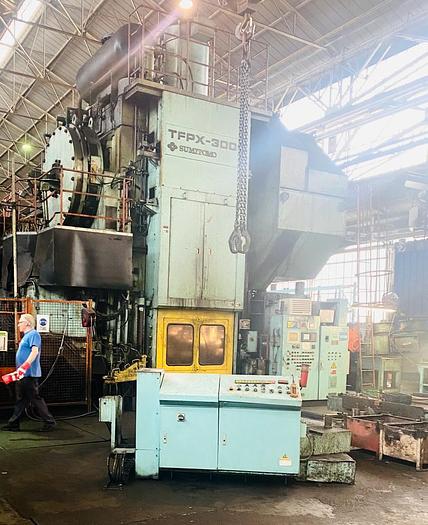

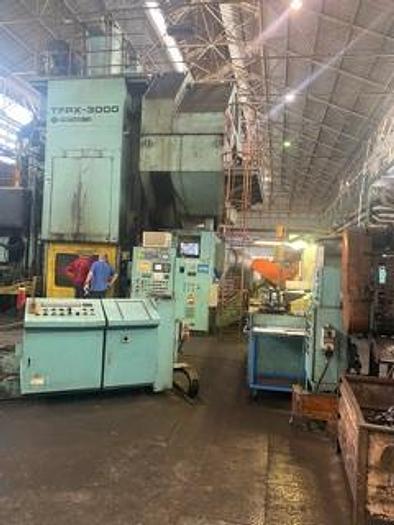

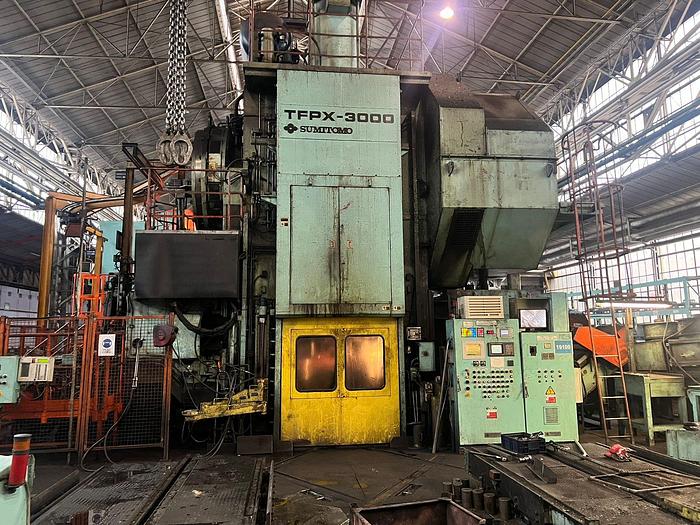

3000 tons Hot Forging Transfer Press Line Sumitomo TFPX-3000

Hot Forging Transfer Press Line

Capacity : 3000 tons,

SPM : 20~50 (Variable),

Alezzo closed mold : 1050 mm,

Course : 360 mm,

Max strokes/min : 30,

Molding stations : 4,

Cutting stations : 2

Smaller base size : 1500 x 1600 mm,

Slide Registration : 8 mm,

Slide side ejection : 35 mm,

Tons Extraction Slide : 35,

Tons Bottom side mechanical ejection : 15 mm,

Lower side hydraulic ejection : 35 mm,

Total expulsion : 50 mm,

Tons lower extraction : 45 Tons,

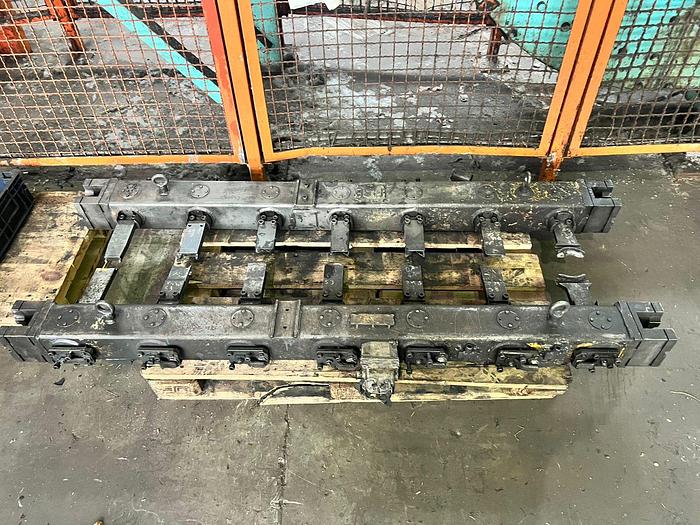

Transfer

Advancement Stroke : 240 mm,

Grip stroke : 60-90 mm,

Lifting stroke : 30-100 mm,

Furance

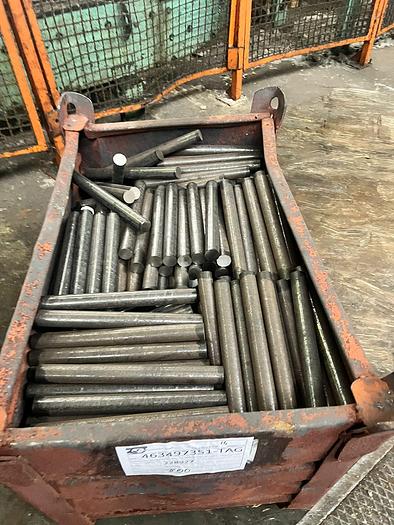

Piece diameter range : 30-60 mm,

Piece length : 40-400 mm,

Length/diameter ratio : di 1.3,

Max piece weight : 6 Kg.

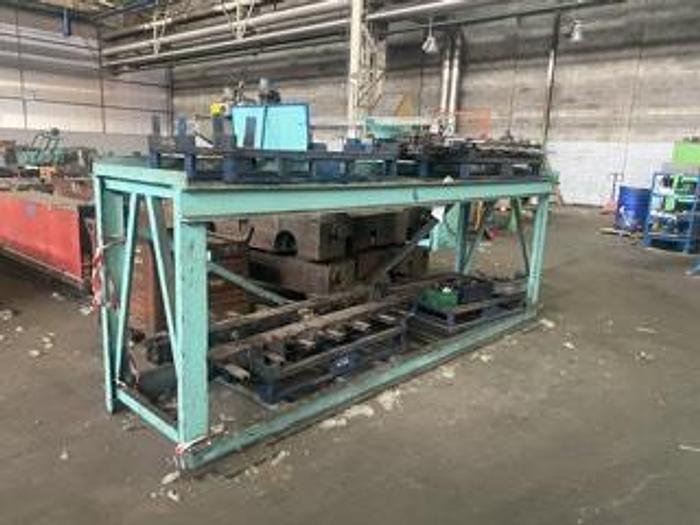

The press line has many spare parts and tooling available.

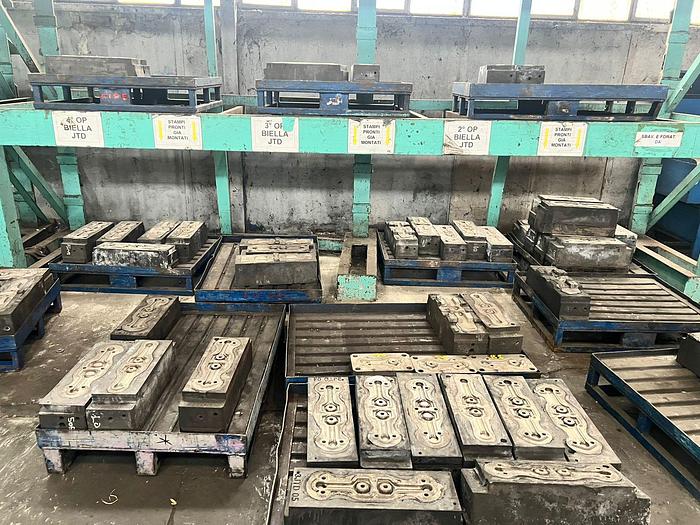

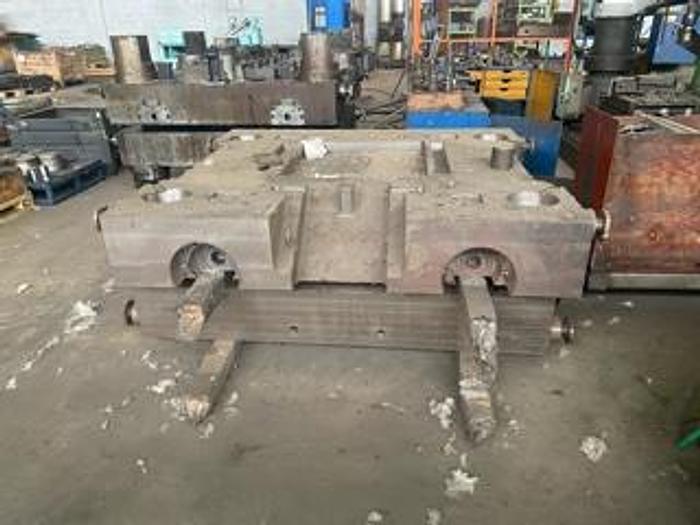

There are 5 sets of Die Holders (Bolsters) with the press.

Manufacturing Connecting Rods currently and customer is also ready to continue with the orders.

5 years ago Sumitomo overhauled the whole press.

All technical documents and drawings available in paper form.

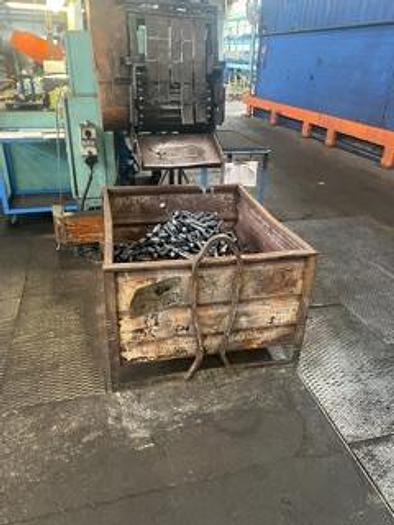

Produced parts on this Press - Connecting rods (95%) and wheel spindle (5%)

Production capacity with the transfer press like per shift or per month basis is around 8.000 pieces/shift.

Yom 1999, overhauled 2017.
