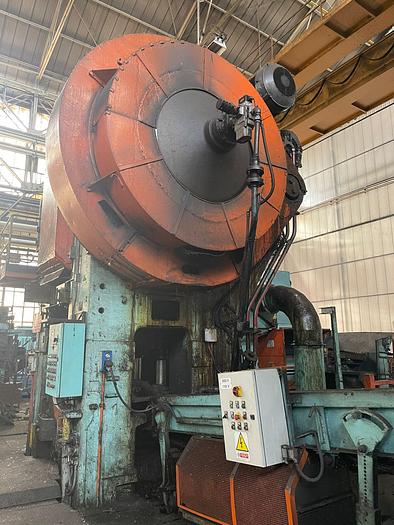

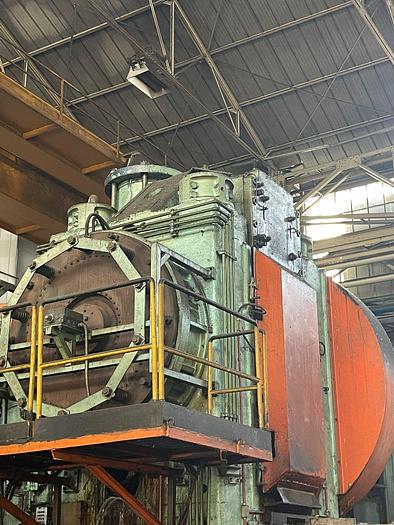

Press Hot Forging SP200B Eumuco

Capacity : 2000 tons,

Ram Stroke : 350 mm,

Stroke per minutes : 60,

Daylight : 1240 mm,

Table dimensions (FB x LR) : 1240 x 1430 mm,

Ram dimensions (FB x LR) : 1200 x 1120 mm,

Table adjustment : 22.5 mm,

Upper ejector stroke : 30 mm,

Lower ejector stroke : 200 mm,

Engine Power : 180 CV,

Width : 4600 mm,

Height : 6000 mm,

Depth : 4100 mm,

Light between columns : 1250 mm,

Table level from the ground : 850 mm,

Side window : 800 x 1000 mm.

Upper die Holder : 1080 x 1080 mm,

Lower die Holder : 1120 x 1400 mm.
