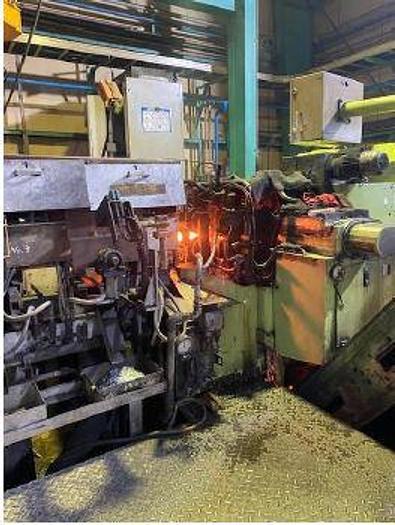

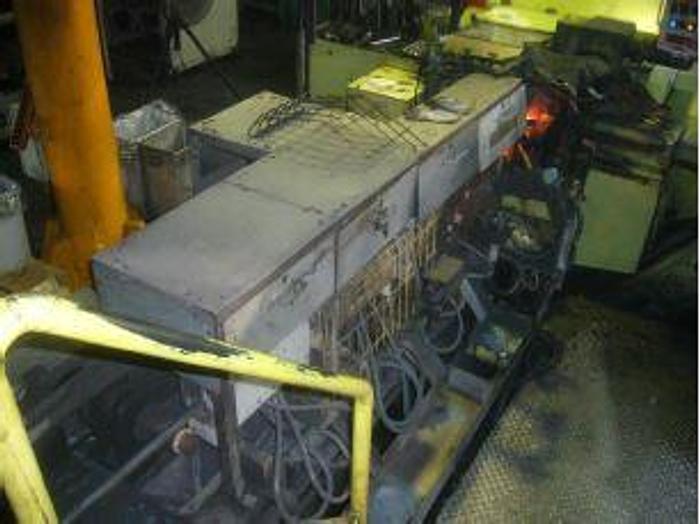

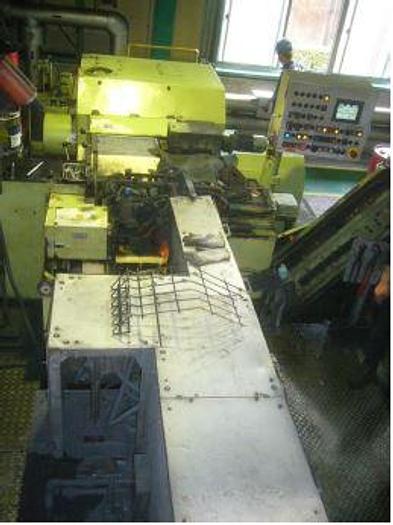

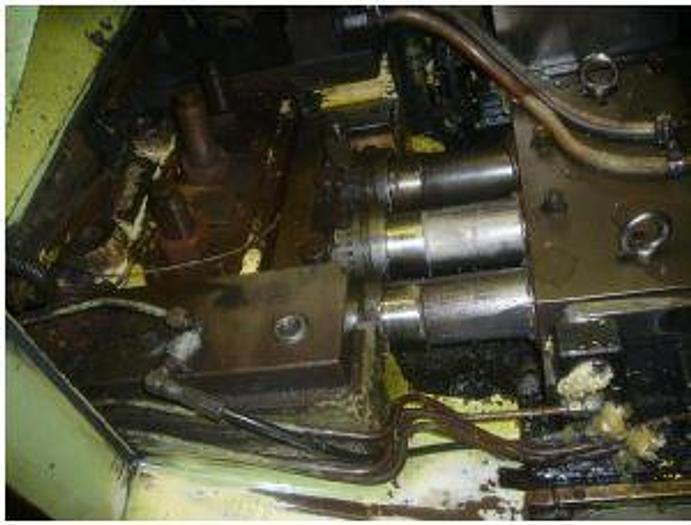

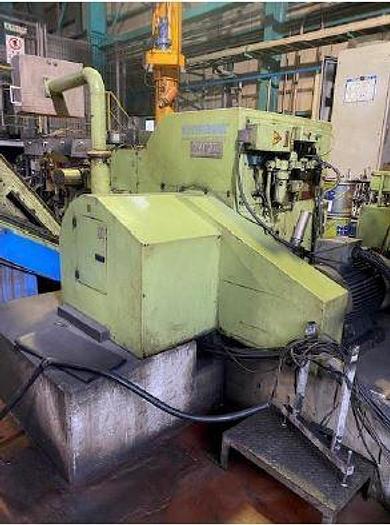

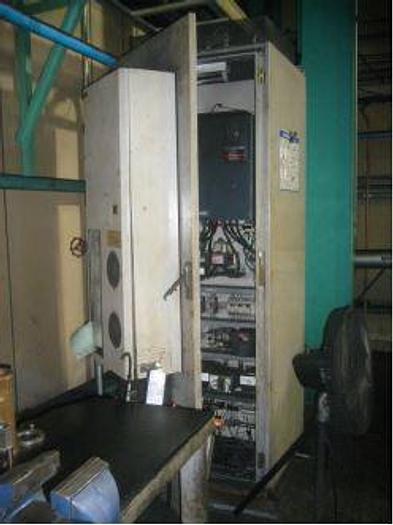

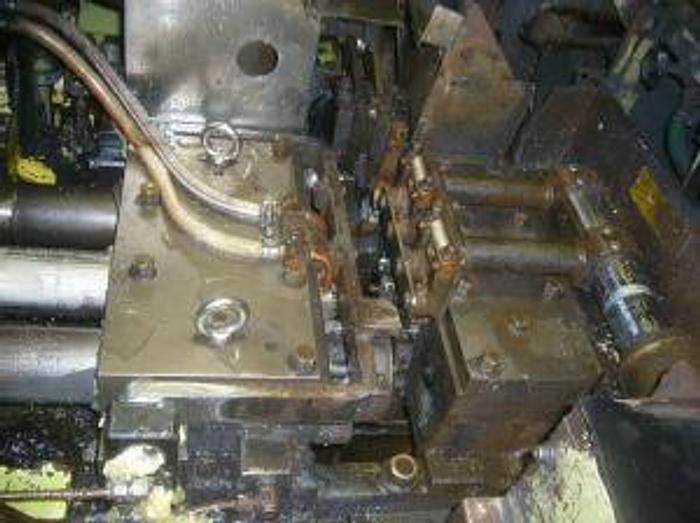

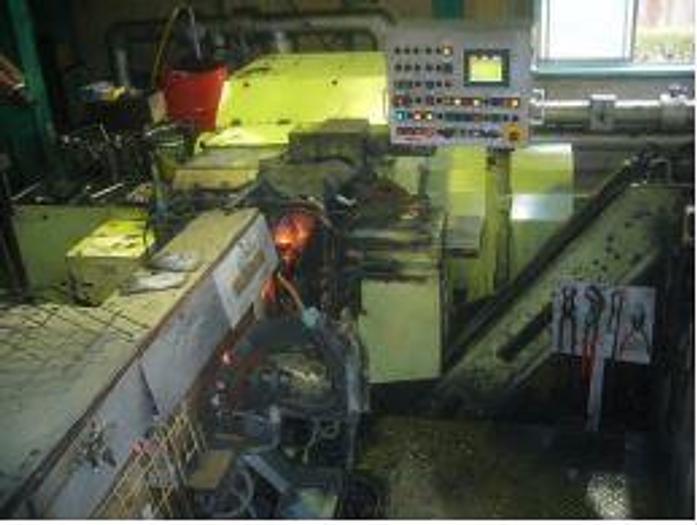

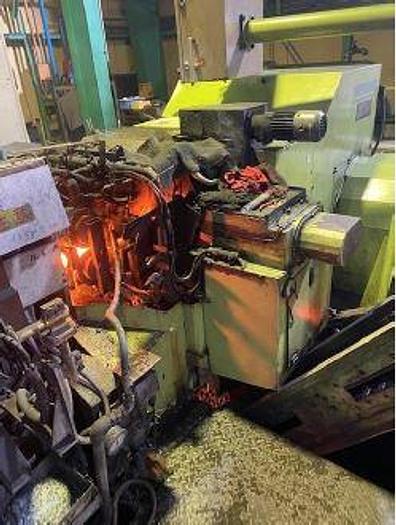

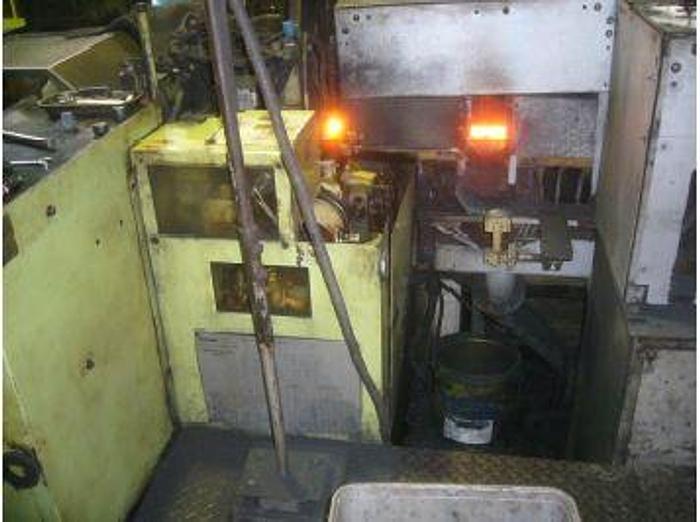

Part Former Hot Hatebur AMP20S

Number of Forming Stations : 3,

Total Forging Pressure : 900 kn,

#1 Station Forging Pressure : 400 kn,

#2 Station Forging Pressure : 70 kn,

#3 Station Forging Pressure : 400 kn,

Continual Drive Motor Power : 30.0 kW,

SPM Variable Drive : 120-180 rpm,

Machine Weight with Main Motor : 11.5 tons,

Length with Drive Motor : 3430 mm,

Width : 2710 mm,

Height: 1550 mm,

Bar Feed Height from Floor : 800 mm,

Ram Stroke: 110 mm,

Maximum KO Stroke ( Die) : 55 mm,

Feed Length ( theoritecal)  45 mm,

Die Diameter: SEE BELOW:

1st Station: 80 mm,

2nd Station: 100 mm,

3rd Station: 80 mm,

Maximum Punch Diameter when Piercing Hole: SEE BELOW:

1st Station : 75 mm,

2nd Station : 75 mm,

3rd Station : 75 mm,

WORKING RANGE :: SEE BELOW

Max./Min. Bar Diameter : 28 mm/14mm,

Cutoff Length : 15-40 mm,

Max. Forging Diameter : 38 mm,

Max. Across Flat Hex : 36 mm,

Max. Across Flat Square : 27 mm,

Electrics: Primary Power : 3 x 220 Volts/ 60Hz +/- 10%,

Equipped with:

Induction Heater ( w Inverter) Mitsubishi Electrics Type HW-13

Bar Feeding System with 32' Rack

Air Chiller for Heater ( RUA-SP3322) Toshiba Electrics

Plate Heat Exchanger (LX-195A-TNP-37) Nippan

Cooling Tower: 2

Parts & Scrap Conveyers

Quenching Tank

Water Pump for Quenching Tank

Water Pump for Die Block Cooler
