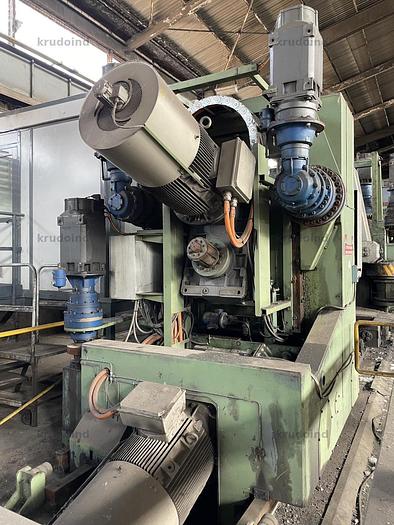

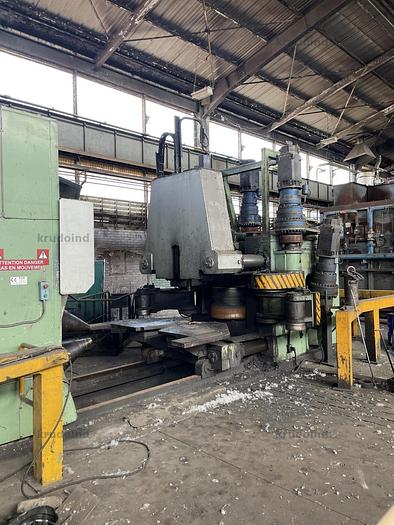

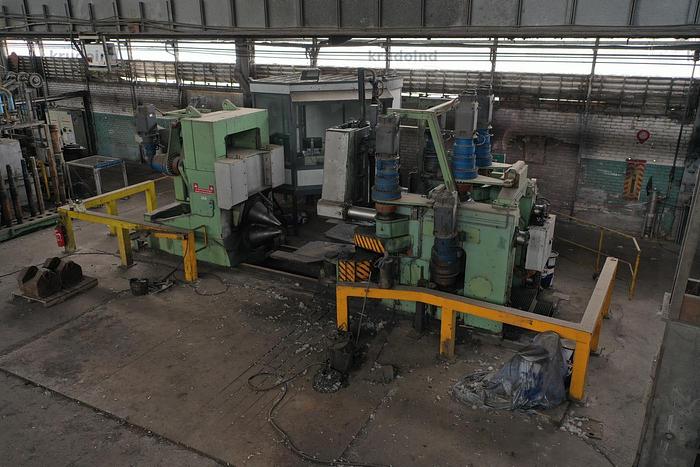

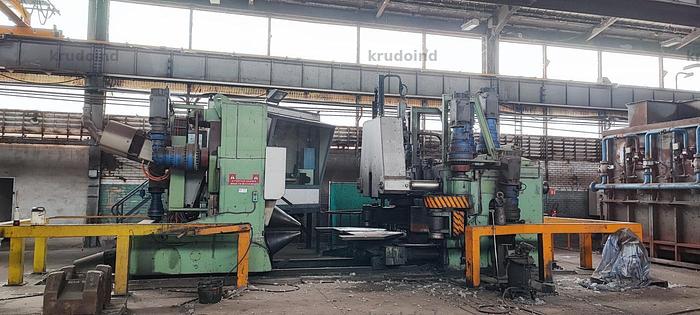

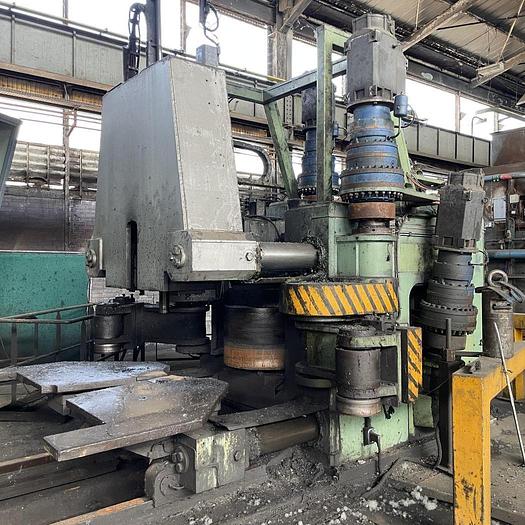

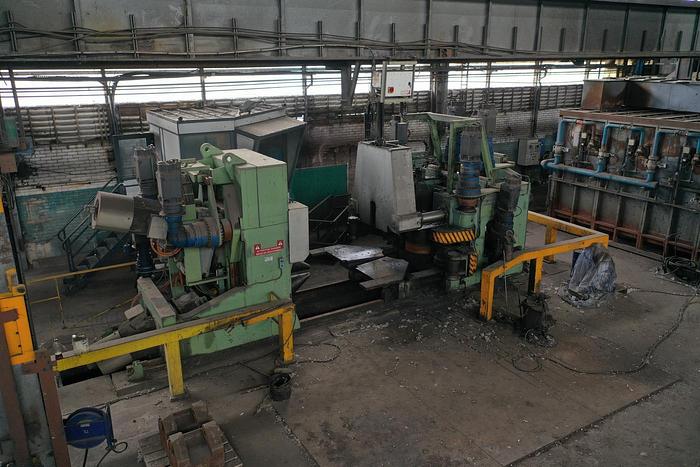

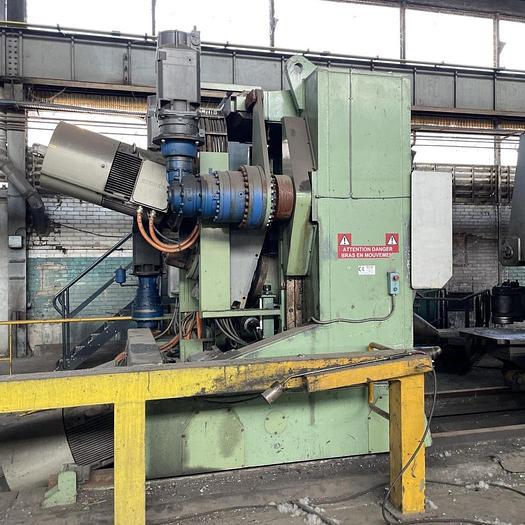

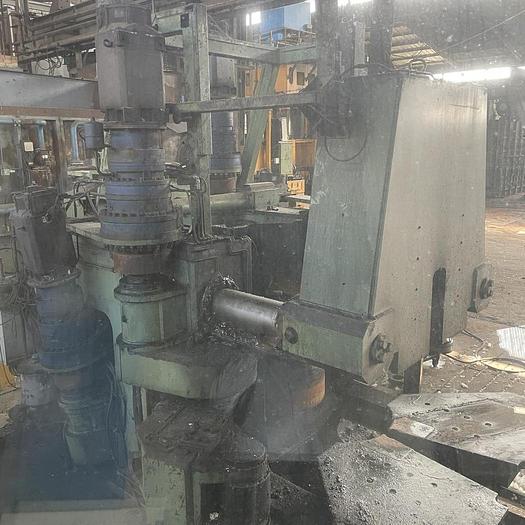

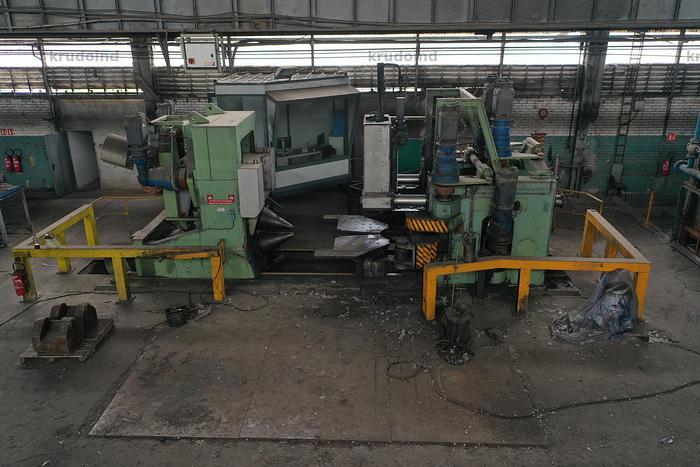

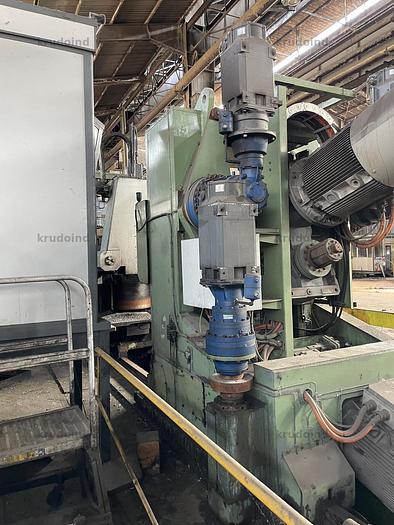

Ring Rolling Machine ECAI SMS-Meer LCG32
Specifications

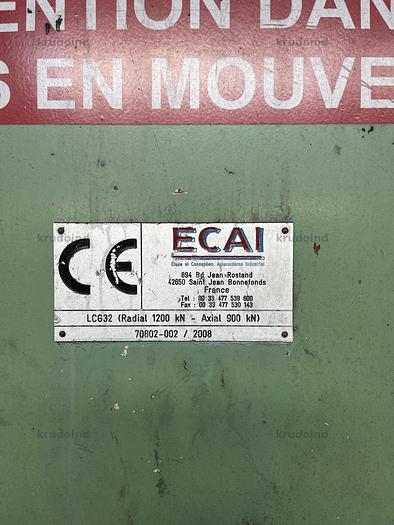

Manufacturer | ECAI SMS-Meer |
Model | LCG32 |
Year | 2008 |
Condition | Used |
Stock Number | MA2359 |
Item condition | Good condition |
Description
Radial Force : 125 tons,
Axial Force : 90 tons,
Maximum height : 500 mm,
Maximum Diameter : 2500 mm,
Maximum Weight : 2.5 tons,
Nominal Radial Power : 1200 KN,
Axial power : 900 KN,
Rolling speed : 0.5 - 1.5m/s,

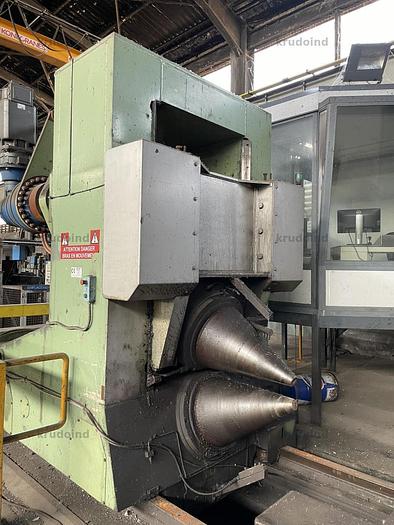

CONES length (axial cage) : 700 mm,
Frequency : 50Hz,
Minimum internal diameter : 110 mm (with mandrel of diameter 100),
Min/max thickness : 20 mm / 500 mm,
Thickness to height ratio : 5,
Operating conditions Ambient air temperature range : +5°C to + 45°C,
Water supply temperature: 30°C,
Humidity rate: 70% CAL,
ECAI LCG32 is a rolling mill with a radial force of 125 tons and an axial force of 90 tons. It can roll rings with a maximum height of 500 mm, a maximum diameter of 2500 mm and a maximum weight of 2.5 tons (these sizes are for standard steel). For alloy steels, Inconel, etc., they must be adjusted according to hardness.
