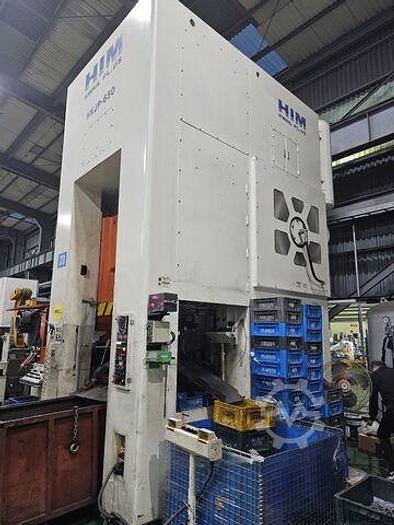

Press Knuckle Joint Coining Hwail HKJP-650

Sold

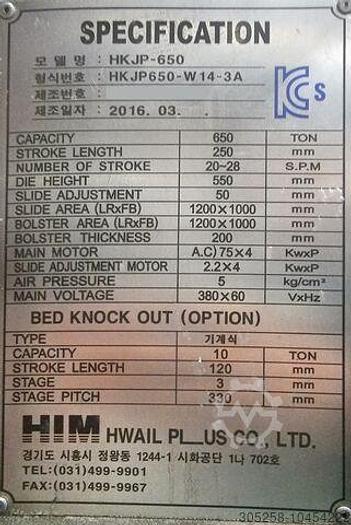

Specifications

ManufacturerHwail
ModelHKJP-650
Year2016
ConditionUsed
Stock NumberMA2354
Item conditionGood condition
Capacity tons650

Description

Capacity : 650 tons,

Stroke Length : 250 mm,

Number of Stroke : 20~28 SPM,

Die Height : 550 mm,

Slide Adjustment : 50 mm,

Slide Area : 1200 x 1000 mm,

Bolster Area : 1200 x 1000 mm,

Bolster Thickness : 200 mm,

Main Motor : AC 75 x 4 (KW x P),

Slide Adjustment Motor : 2.2 x 4 (KW x P),

Air Pressure : 5 kg/cm2,

Main Voltage : 380 x 60 V x Hz,

Bed Knock out (Option) :

Capacity : 10 tons,

Stroke Length : 120 mm,

Stage : 3,

Stage Pitch : 330 mm.
