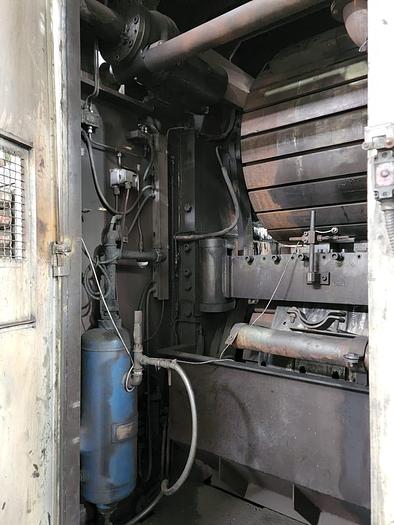

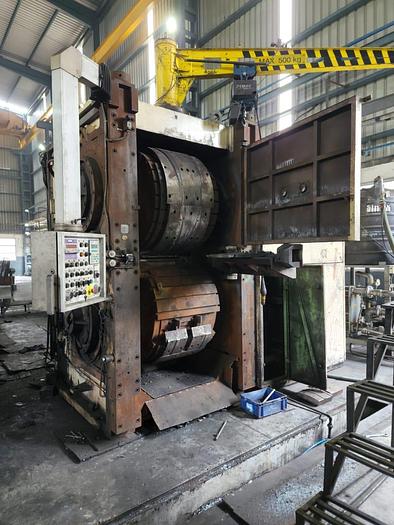

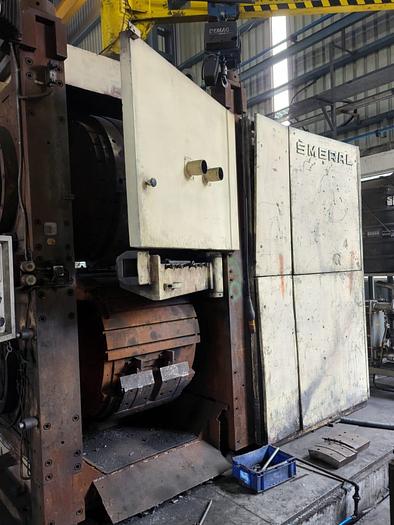

Cross Wedge Roll Smeral ULS100

Slugs dia. : 35-100 mm,

Max. slugs length : 500 mm,

Max. rolled products length : 750 mm,

Max. rolled products lengths with not reduced ends : 800 mm,

Max. stock reduction with 1050 °C min. temperature : 75 %,

Rolled products lengths accuracy (with both ends cut off) : ±0.5 %,

Rolling rolls speed rate : 9,

Compressed air attachment : 600 kPa,

Max. circle sector of forming tools in continuous operation : 240°,

In interrupted operation : 300°,

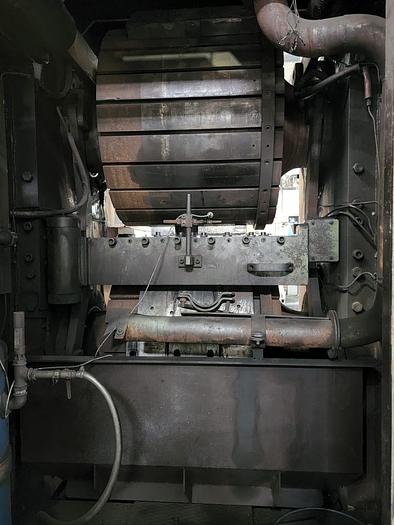

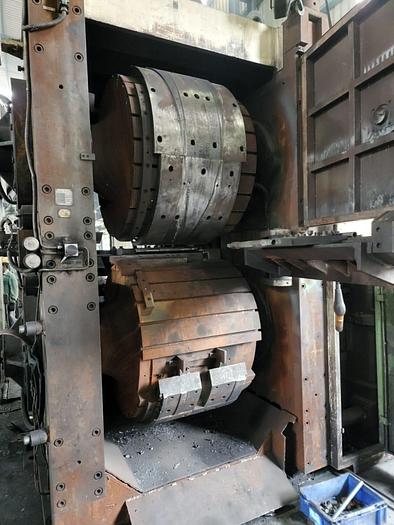

Dia. of rolling rolls : 1000 mm,

Width of rolling rolls : 800 mm,

Distance between rolling rolls axes : 1170 mm,

Adjustability of each rolling roll : ±25 mm

Main drive motor output : 158 kW,

Auxiliary crane capacity : 500 kg,

Sucked air total consumption : 250 l/1.
