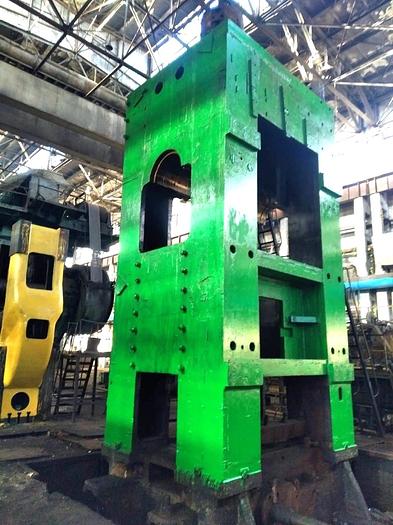

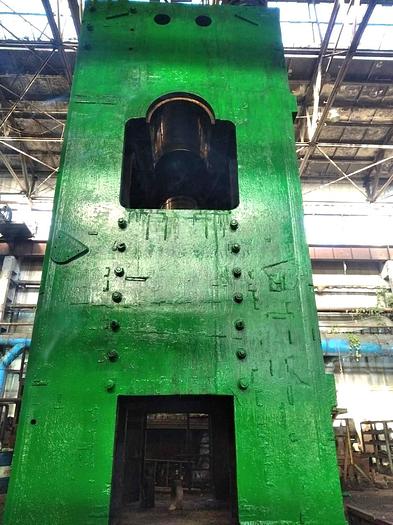

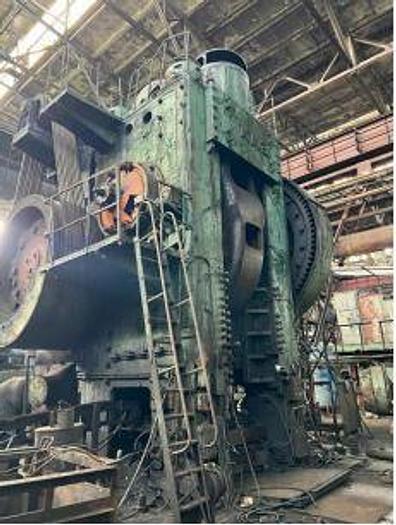

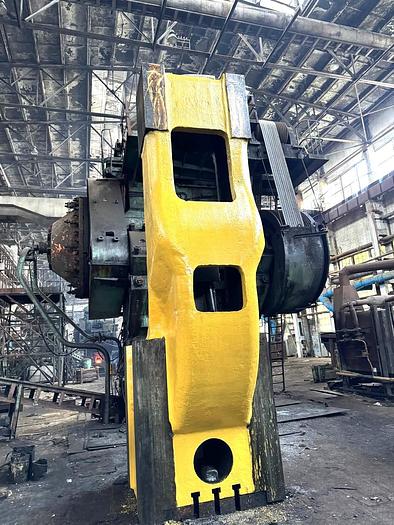

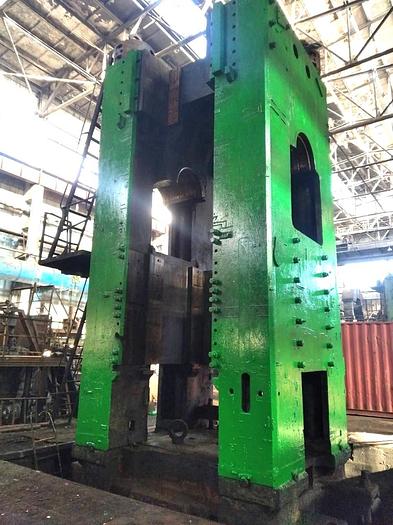

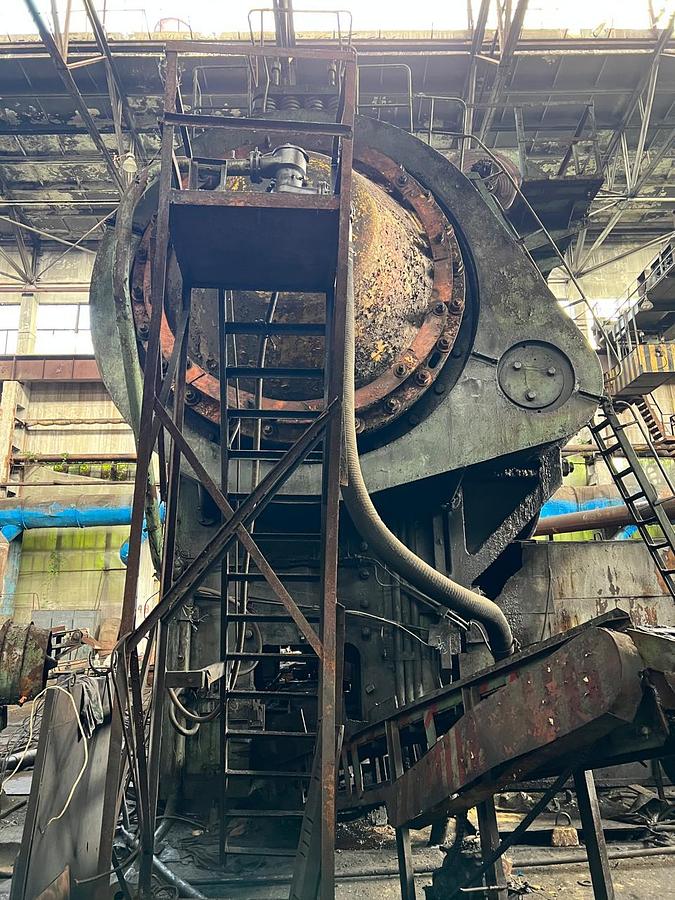

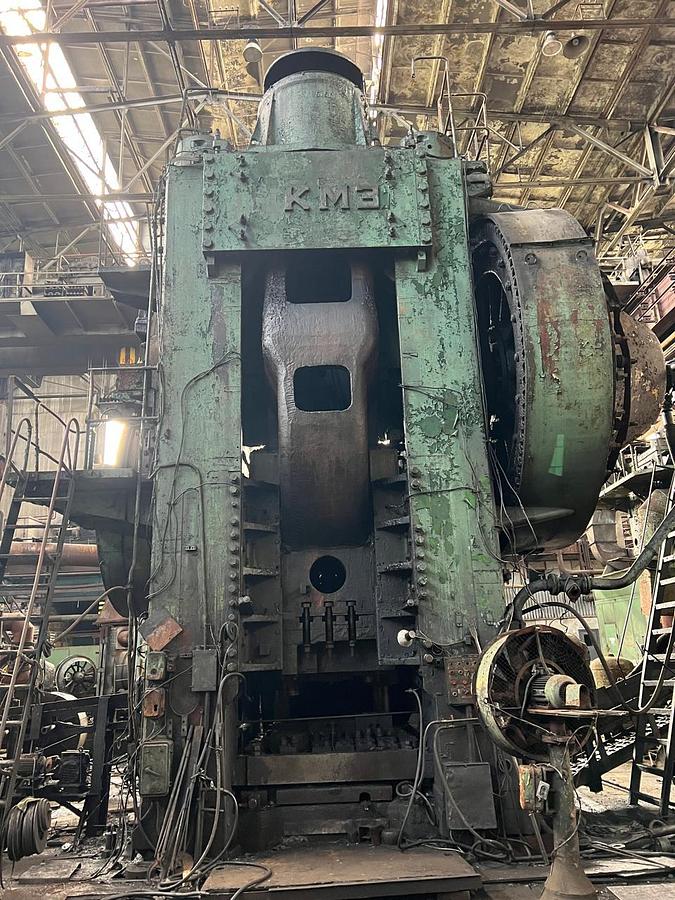

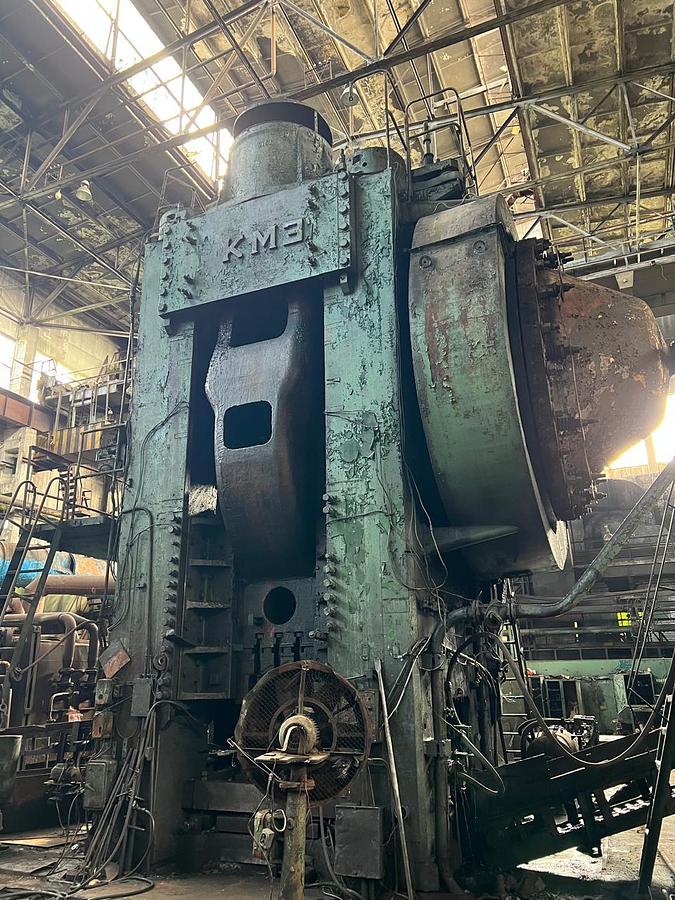

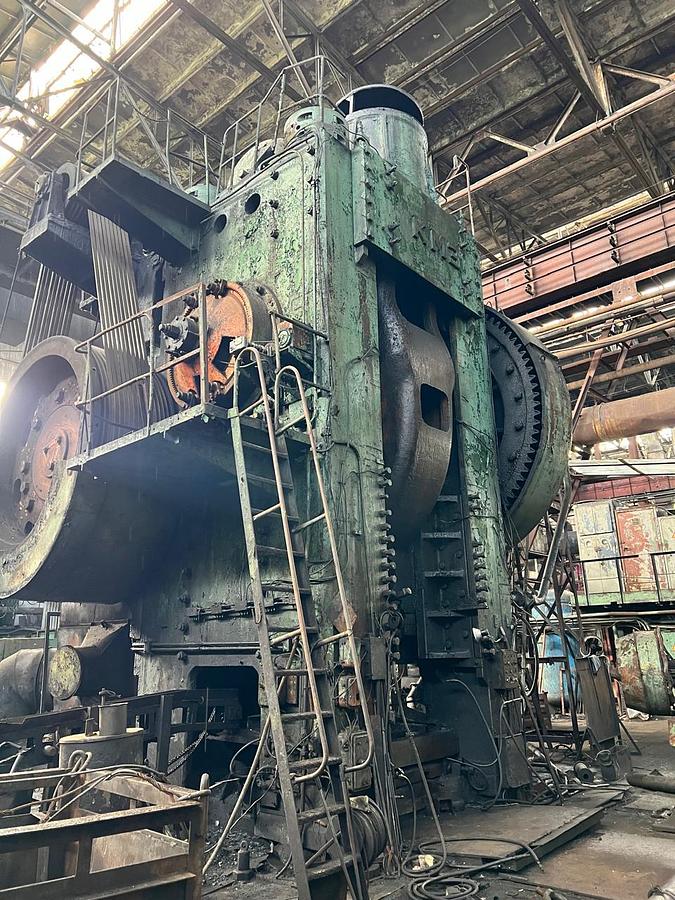

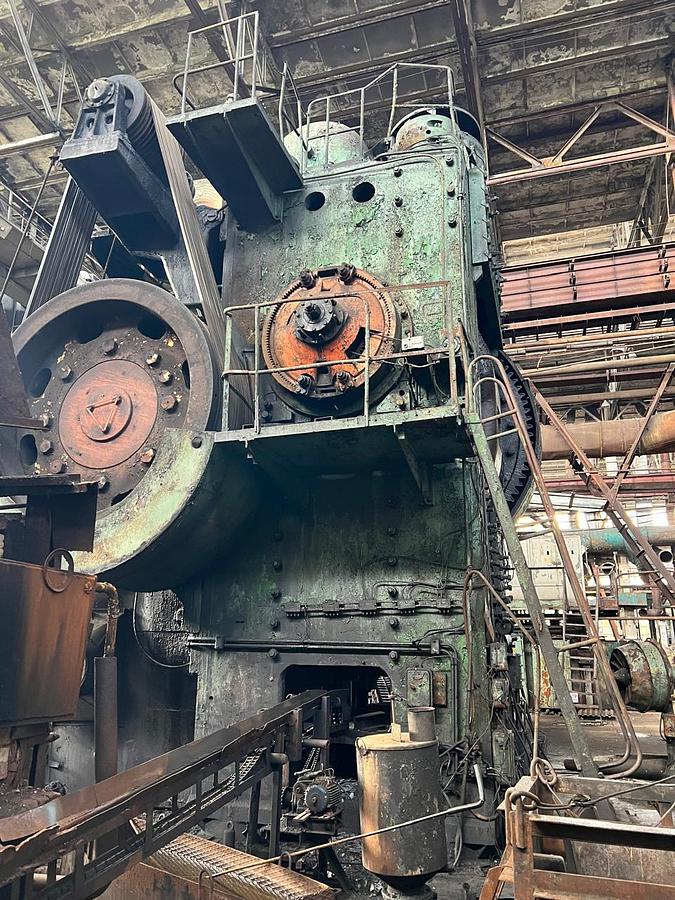

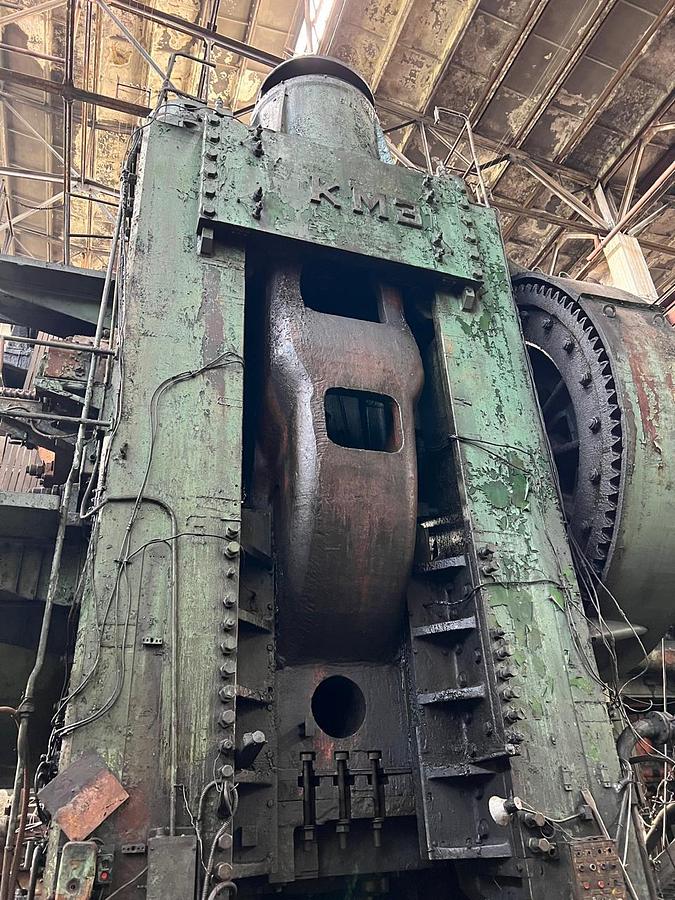

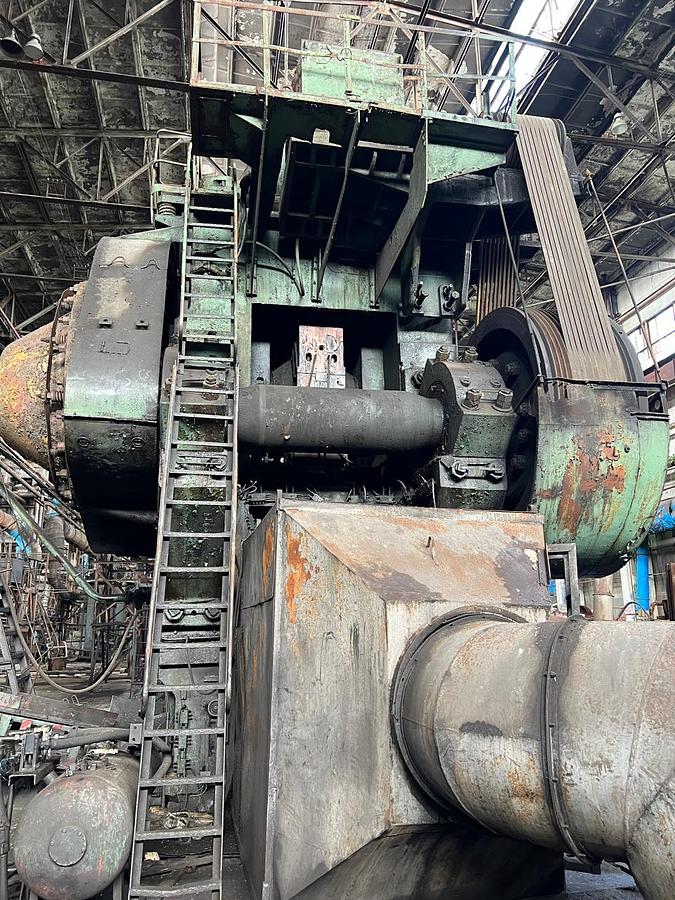

6300 tons Press Hot Forging NKMZ K8548

Capacity : 6300 tons,

Stroke : 460 mm,

Slide strokes per minute (continuous) : 40,

Shut height : 1150 mm,

Table height adjustment : 15 mm,

Distance between uprights clear : 1950 mm

Table working surface :

-L-to-R : 1600 mm,

-F-to-B : 1900 mm,

Slide dimensions :

-L-to-R : 1680 mm,

-F-to-B : 1680 mm,

Top ejector stroke : 100 mm,

Bottom ejector stroke : 230 mm,

Upper knock-out capacity : 10 tons,

Lower knock-out capacity : 16 tons,

Uprights openings dimensions :

-Width : 1100 mm,

-Height : 1250 mm,

Main drive motor power : 400 kW,

Overall dimensions :

-L-to-R : 8600 mm,

-F-to-B : 5900 mm,

-Height above floor level : 9300 mm,

Weight : 658 tons.

Die holder included.

• The press is supplied with brand new components as below:

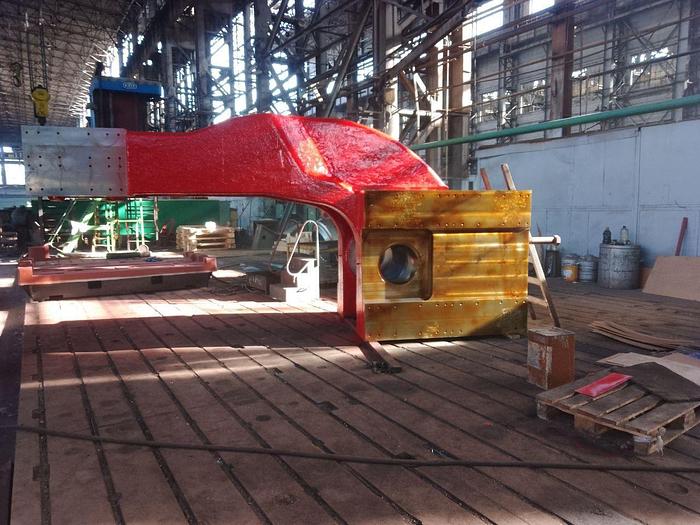

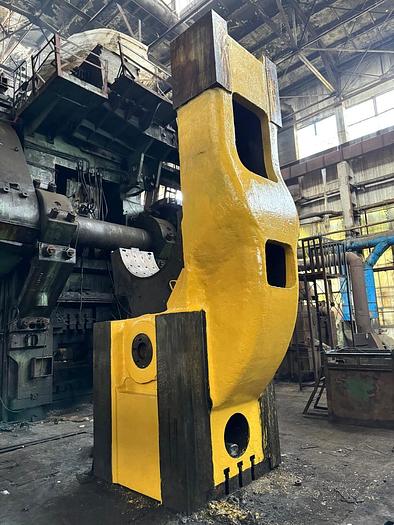

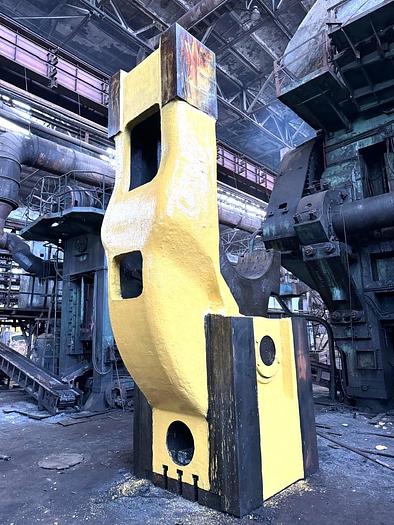

• New Ram Slider

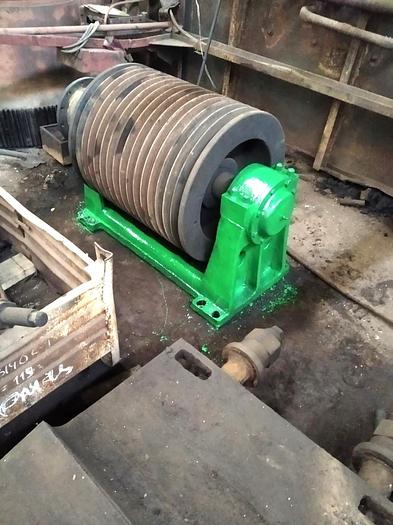

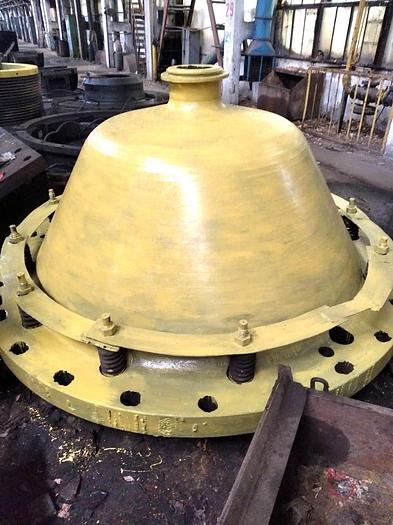

• New Water–cooled Brake

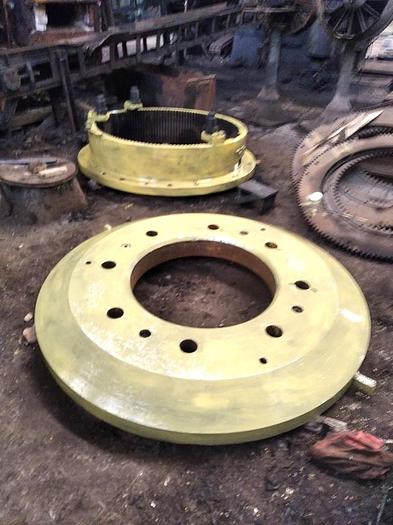

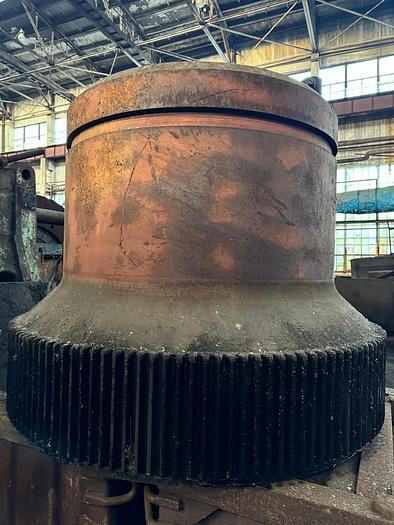

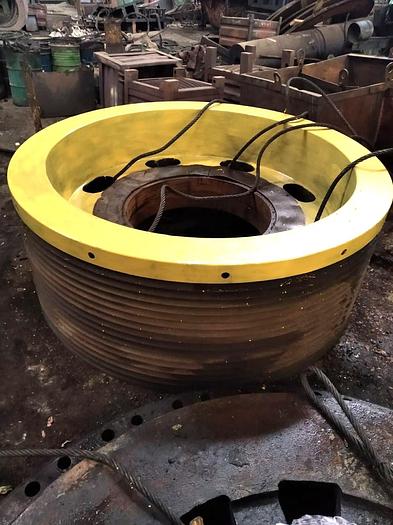

• New Drive Hub

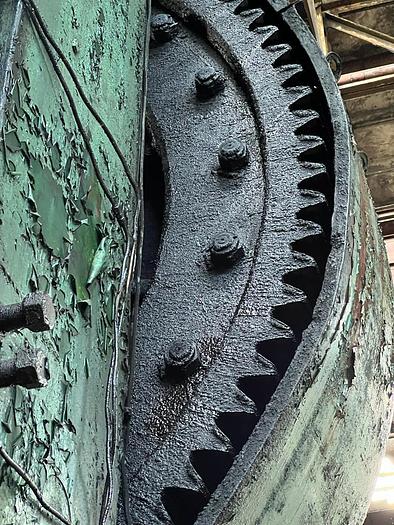

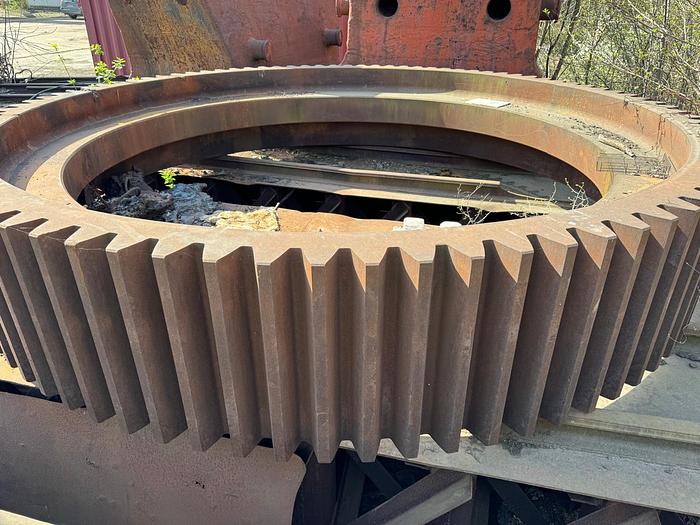

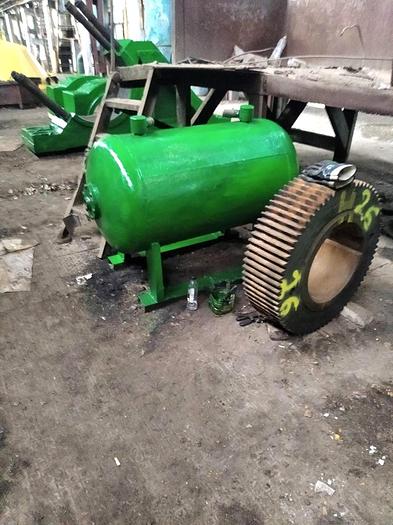

• New Bull Gear

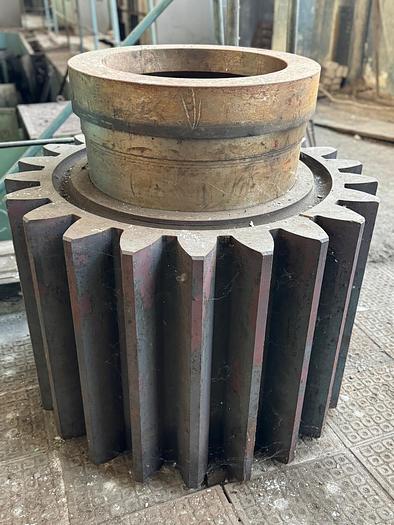

• New Small Pinion

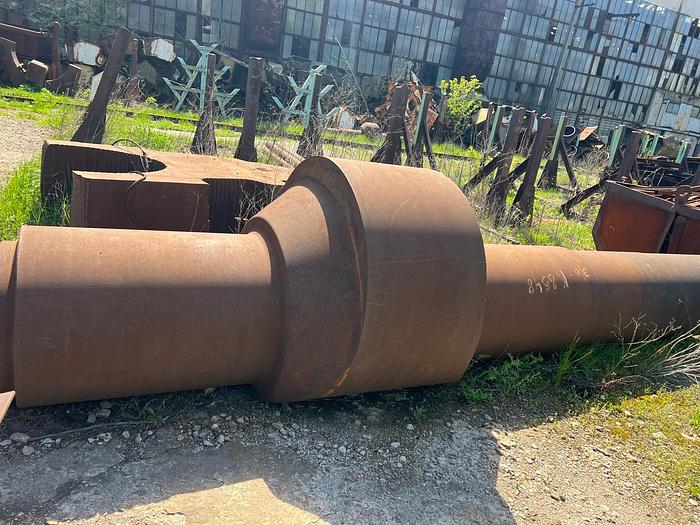

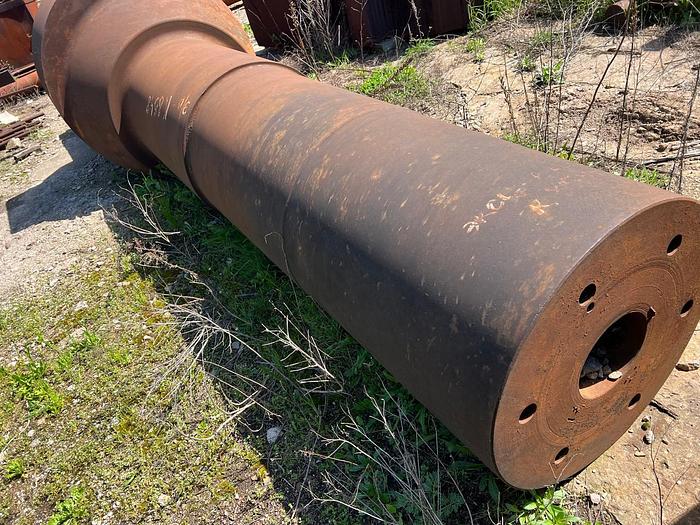

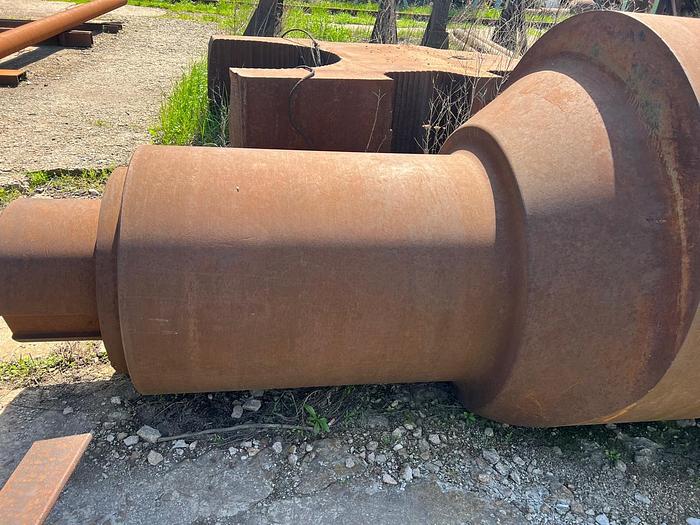

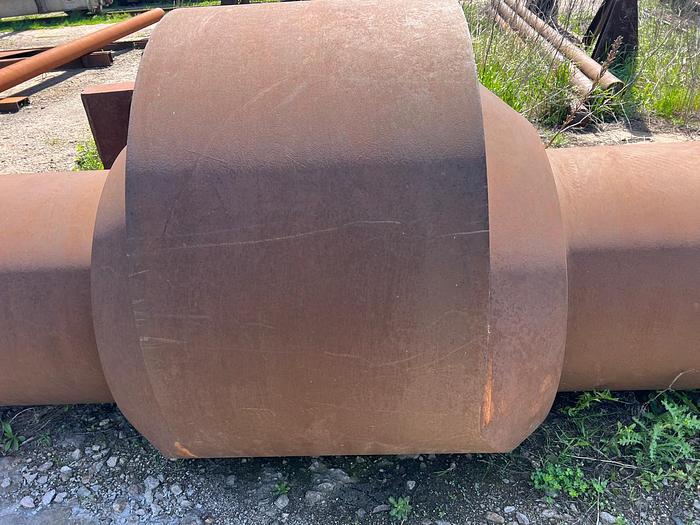

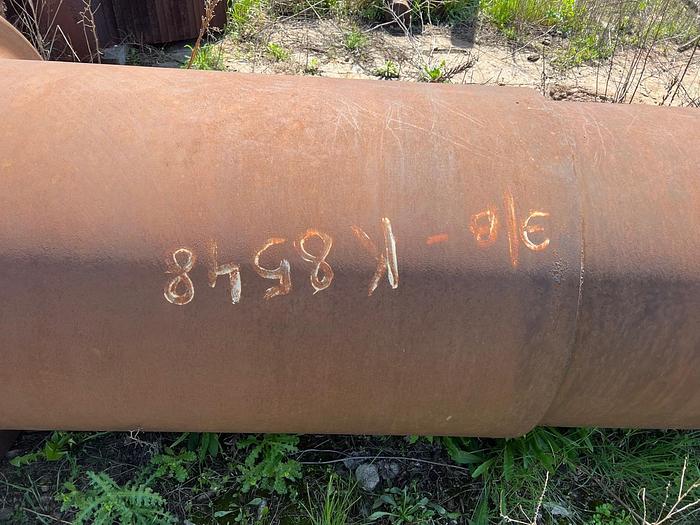

• New Eccentric Shaft
