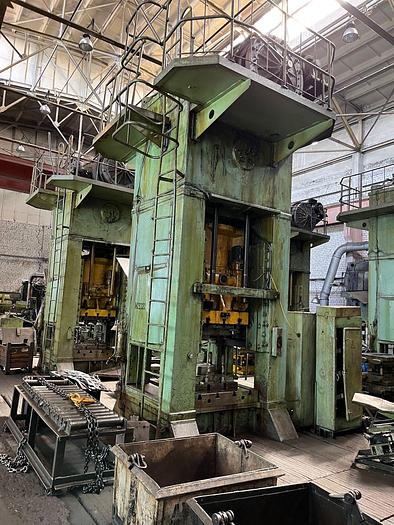

Press Trimming K9538 TMP Voronezh Russia

Capacity : 630 tons,

Slider stroke length : 400 mm,

Number of courses of a slider per minute (continuous/single) : 20 / 15,

Maximum distance between table and slider (in lower position of slider) : 750 mm,

Table overall dimensions :

- from front to rear : 1250 mm,

- from left to right : 1250 mm,

Power of a drive : 58 kW,

Total power of electric motors : 62.1 kW,

Press overall dimensions :

- Length : 3280 mm,

- Width : 3470 mm,

- Height : 6190 mm,

Press weight without hydro pneumatic pillow : 49.8 tons,

Press weight With a hydro pneumatic pillow : 52.7 tons.
