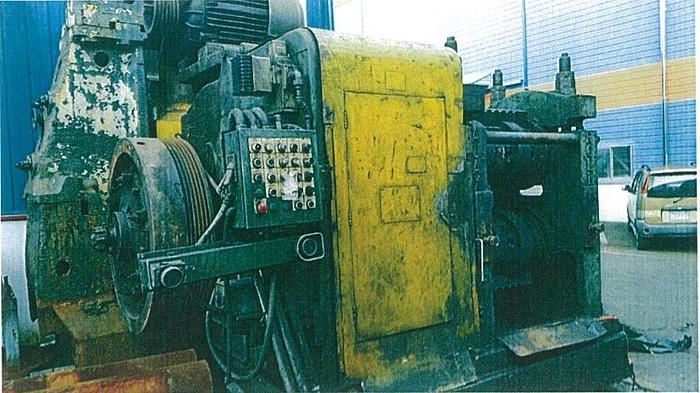

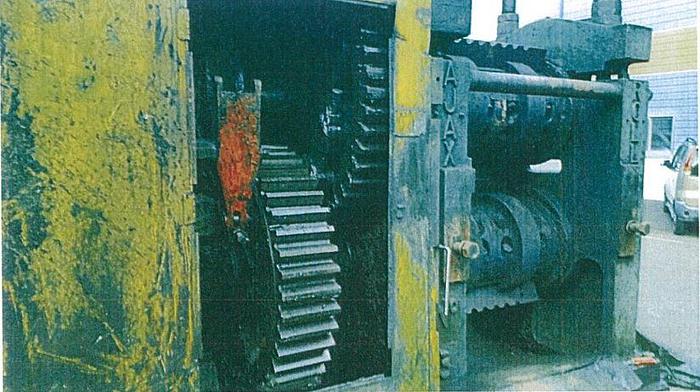

Reduce Forging Roll Ajax 3
Specifications
| Manufacturer | Ajax |
| Model | 3 |
| Year | 1987 |
| Condition | Refurbished |
| Stock Number | MA2336 |
| Item condition | Overhauled |
Description

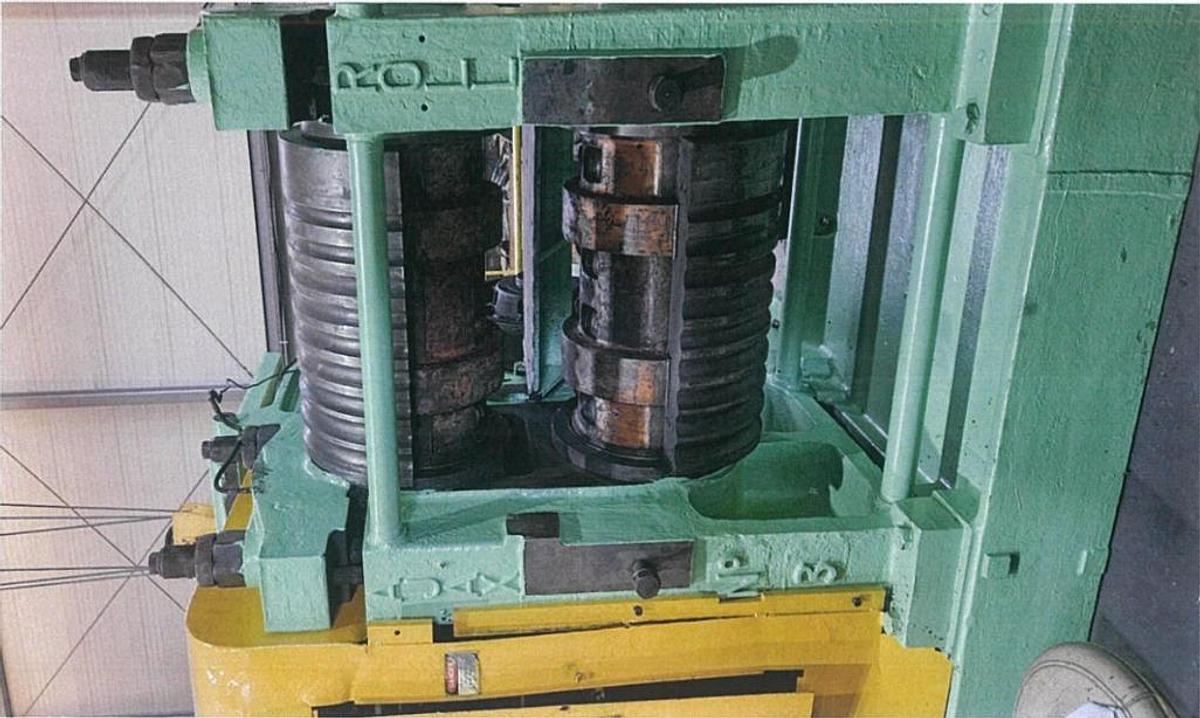

Width of roll dies:
Half round : 750 mm,
Flat back : 750 mm,
Max. roll die dia. :
Half round : 700 mm,
Flat back : 700 mm,
Max. usable die periphery :
Half round : 1025 mm,
Flat back : 600 mm,
Overhung : 1700 mm,
Min. roll die dia. :
Half round : 590 mm,
Flat back : 590 mm,
Min. usable die periphery :
Half round : 850 mm,
Billet square size rolled Max. 120 mm RCS
H.P. of Motor 870 to 1150 RPM : 40 to 75
Floor space:
L to R : 3050 mm,
F to B : 2590 mm,
Weight : 43.5 tons.
This machine will be overhauled as follows after you place the order:
1. Change all parts which need change
2. Install new bronze bearings
3. Install new discs with new frictional plates
4. Install new seals and belts
5. Install new electric system
6. Install new lubrication system
7. Install new pneumatic system
8. Painting of the machine
9. Assembling and testing machine before loading.
