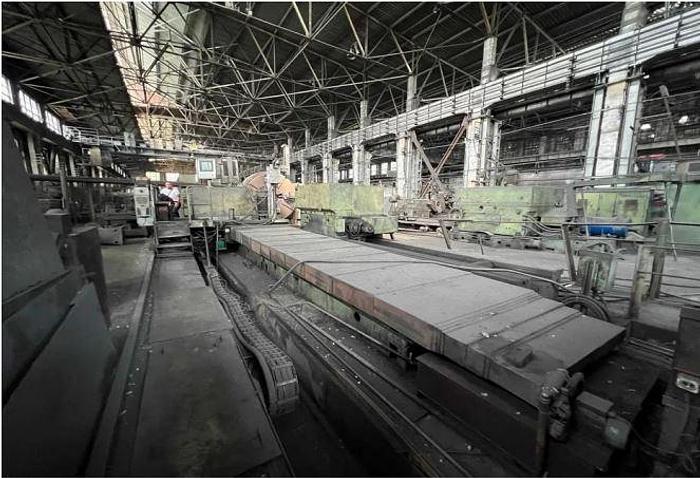

Lathe Heavy Duty CNC Kramatorsk 1K670F3

Max. swing diam. over bed : 2050 mm,

Max. turning diam. over carriage : 1450 mm,

Distance between centers : 7500 mm,

Through spindle bore diam. : 100 mm,

Spindle speed range : 1 - 160 Rpm,

Carriage traverse, X axis : 725 mm,

Support traverse, Z axis : 6850 mm,

Cross carriage feed X : 0,01 - 90 mm/rpm,

Longitudinal carriage Z feed : 0,159-78 mm/min,

Rapid travels X Z axis : 13000 mm/min,

Max. workpiece weight : 70 tons,

Tailstock quill diameter : 400 mm,

Tailstock traverse : 480 mm,

Power of main drive motor : 110 kW,

Weight of machine : 115.2 tons,

Dimensions (l x w x h) : 21150 x 4580 x 2860 mm,

Control : Siemens H-645.

This machine equipped with:

Service Manual Books

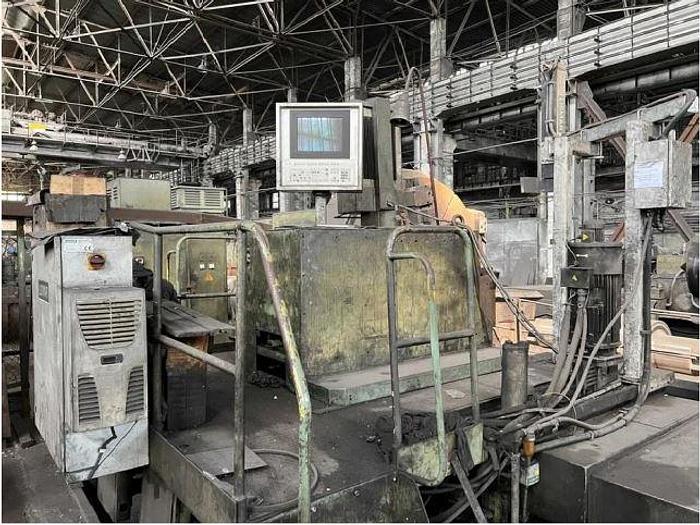

Control SIEMENS H645, 2- axis

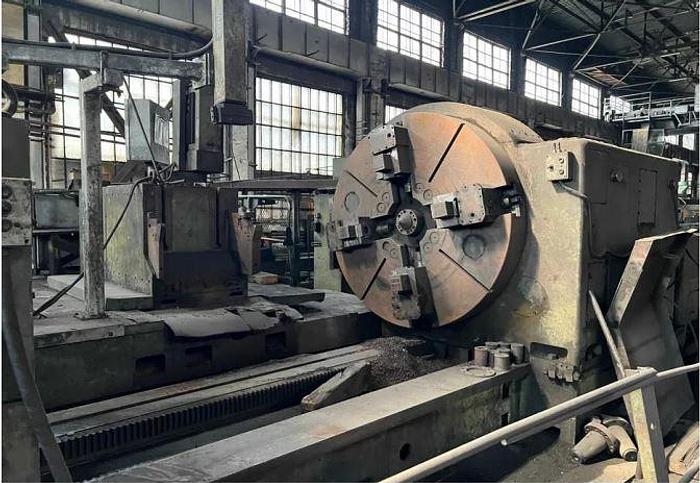

Faceplate diam.1250mm, 4 jaws

Coolant unit with pump

Special Turret, 2 stations tools

Сlosed steady Rest (Lunettes) 2 pcs.

Hydraulical clamping tailstock.
