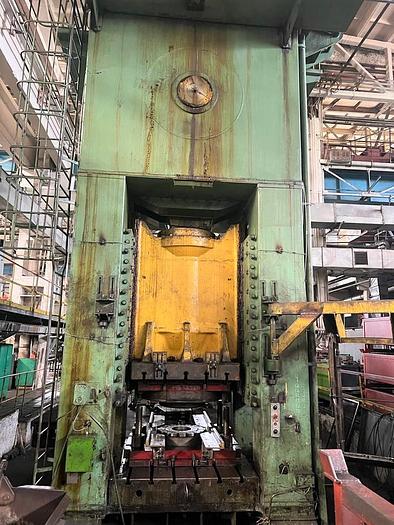

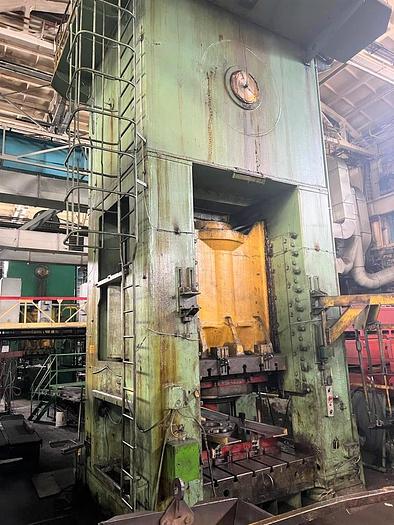

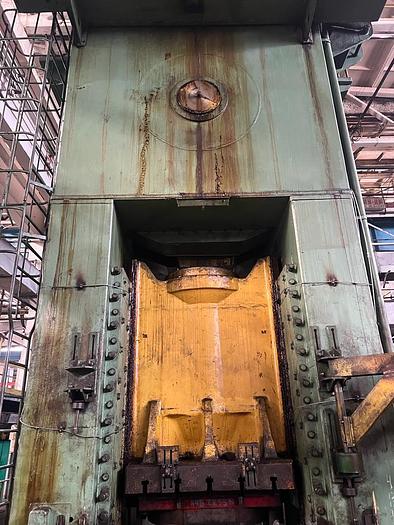

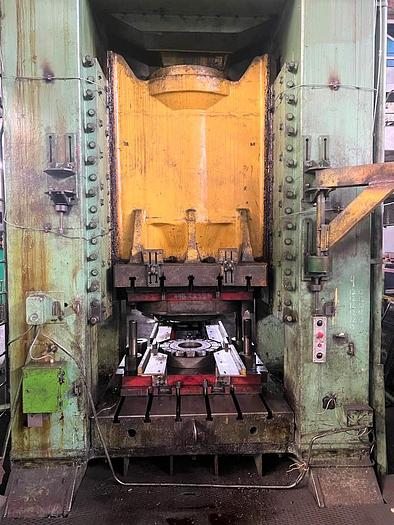

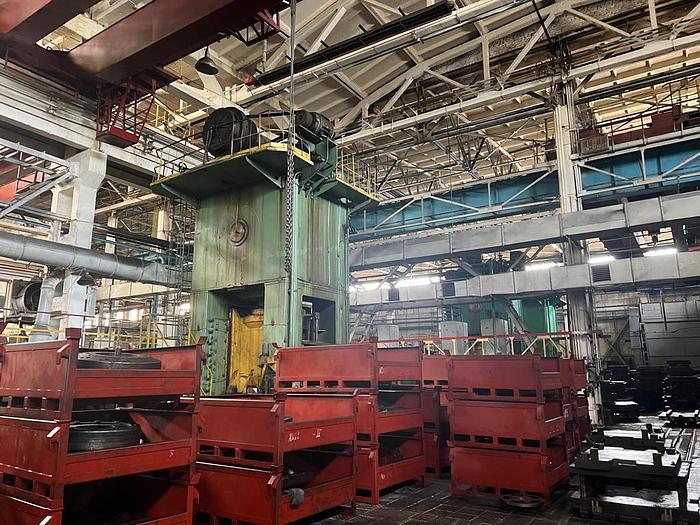

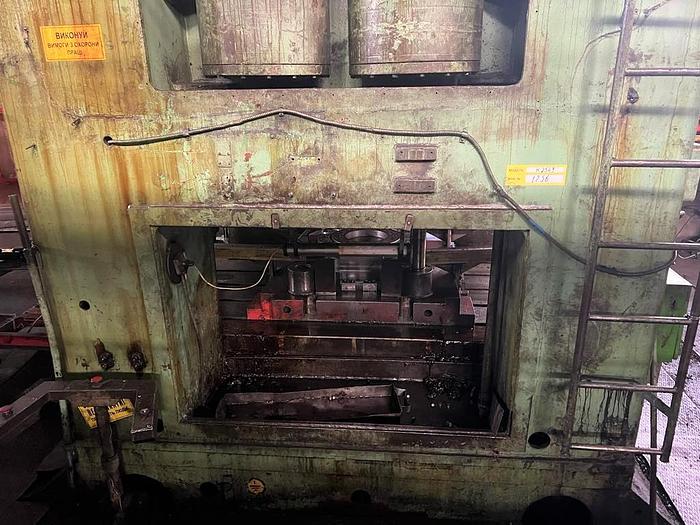

Press Trimming TMP Voronezh Russia K2543

Capacity : 2000 tons,

Ram stroke : 500 mm,

Ram stroke per minute : 6,

Number of single turn-on: 3.6,

The closed height : 1160 mm,

Adjustment : 220 mm,

Table size :

-From left to right : 2000 mm,

-From front to rear : 2500 mm,

-Thickness die plate : 300 mm,

Slider overall dimensions : 1600 x 2000 mm,

Aperture in a table : 1250 x 1250 mm,

window dimensions in cheeks : 1600 x 1000 mm,

Maximum Die Weight : 6 tons

Hydropneumatic cushion in the table:

·working stroke : 250 mm

·maximum clamping force 350 ton-force

·maximum push force 20 ton-force

Main electric motor power: 125 kW

Press overall dimensions: 5390 x 4870 x 8860 mm,

Press weight : 229 tons,
