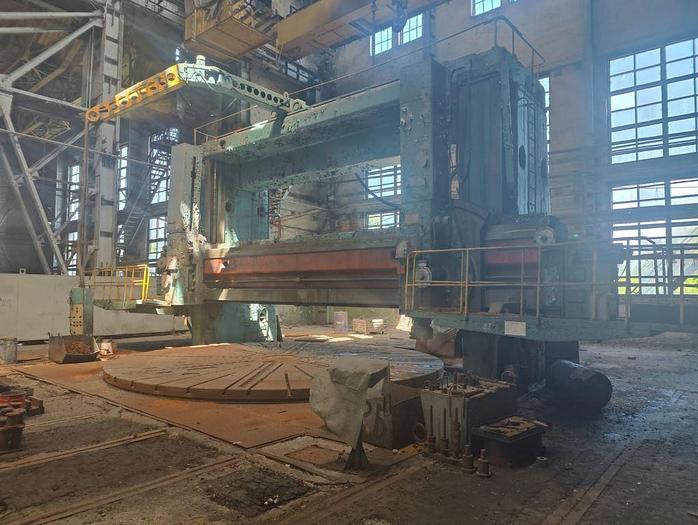

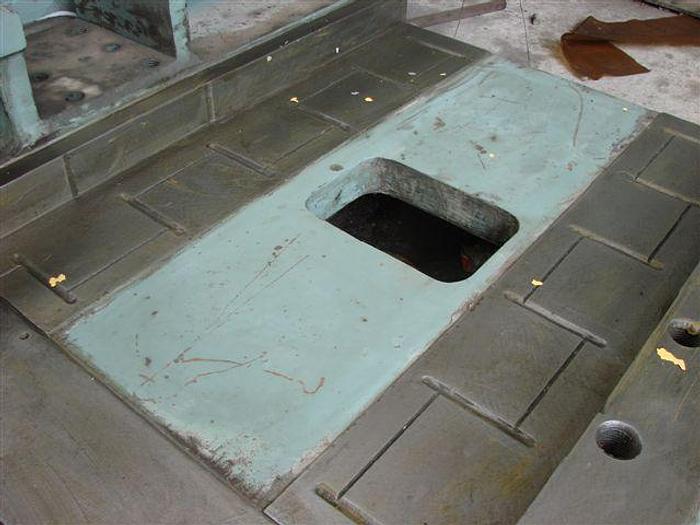

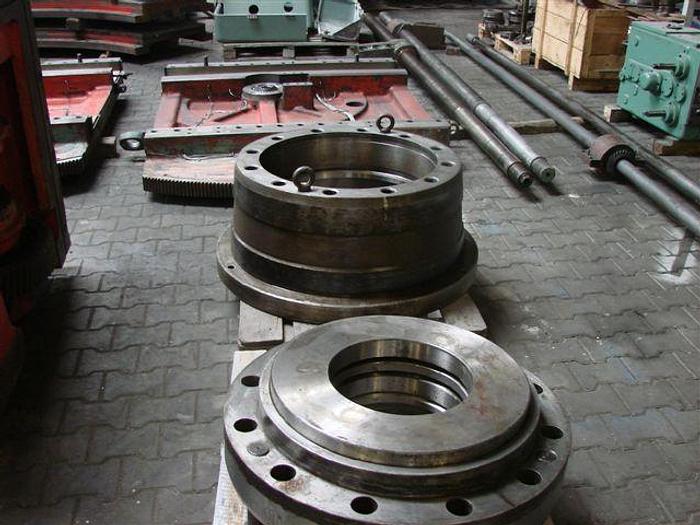

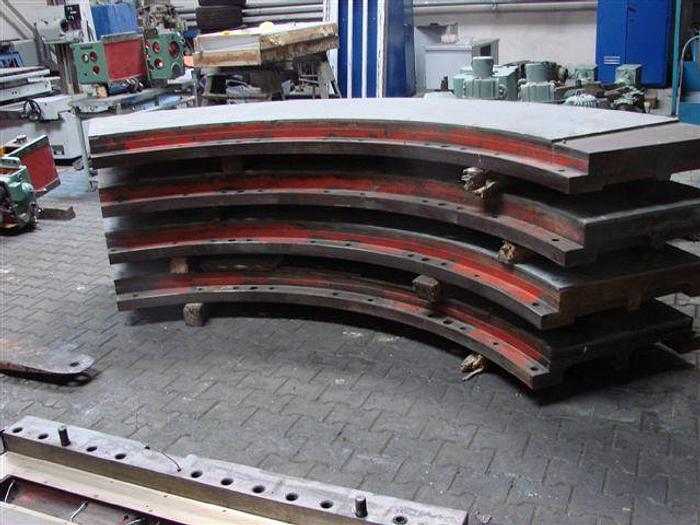

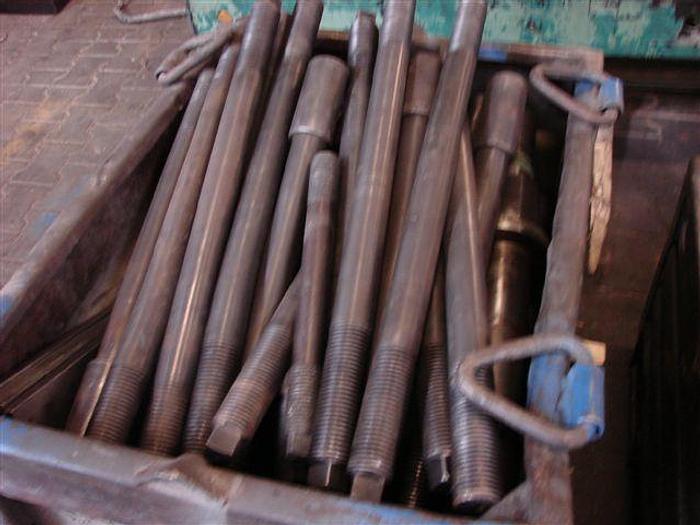

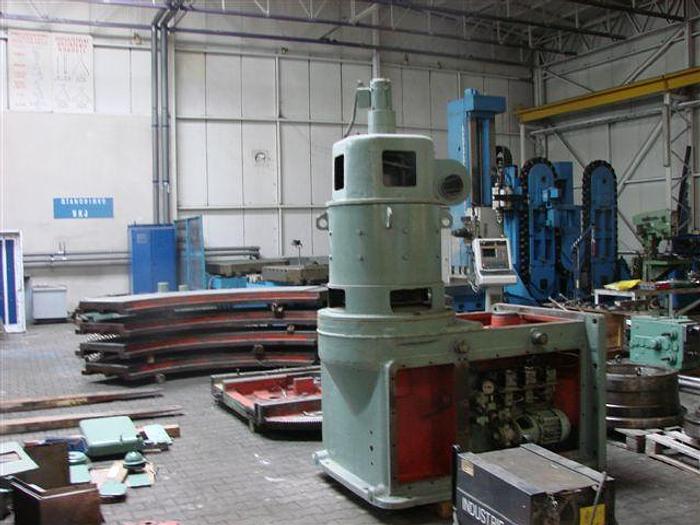

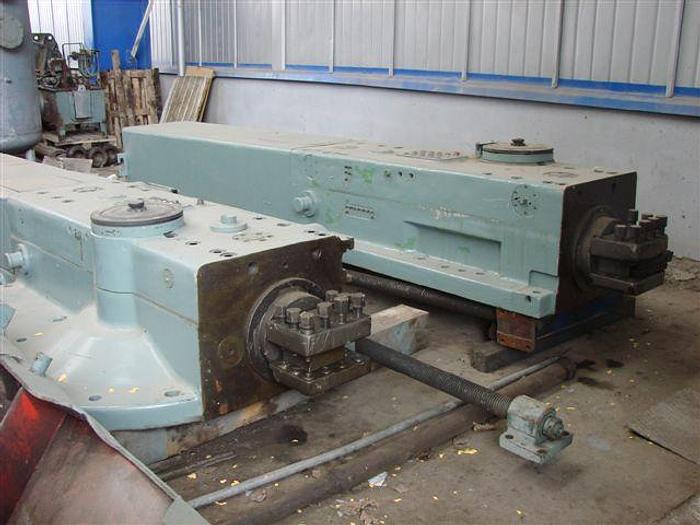

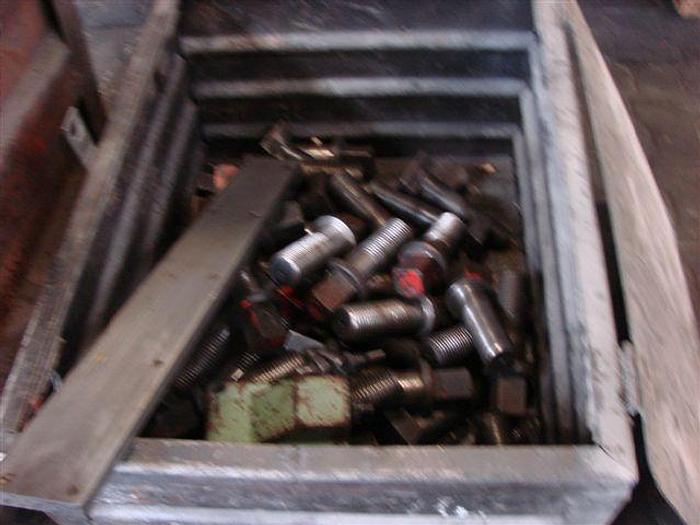

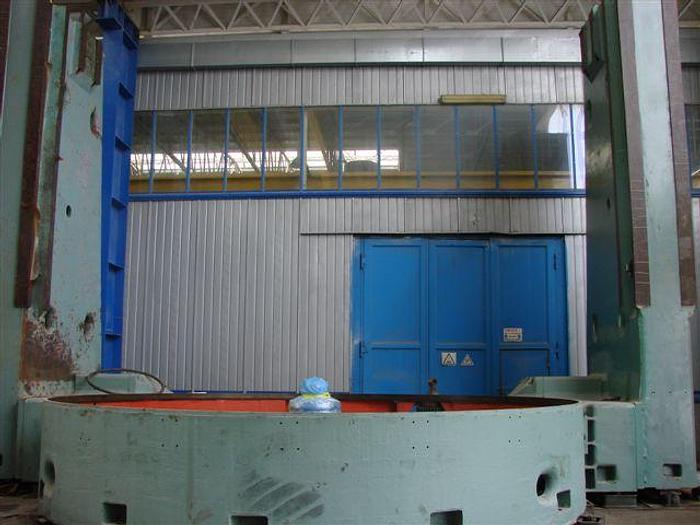

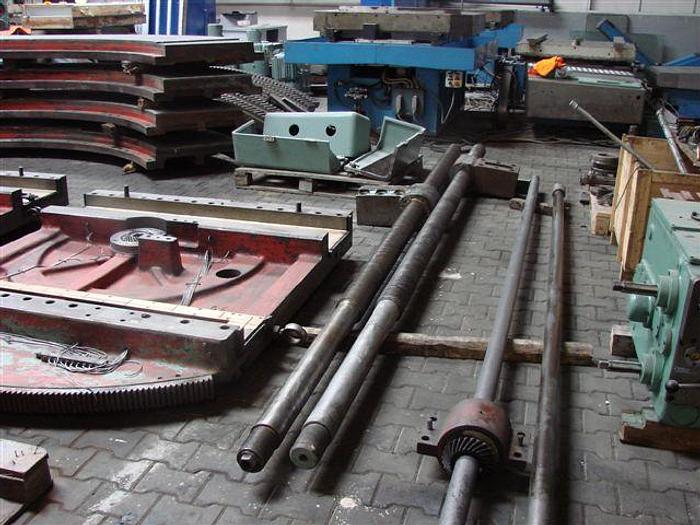

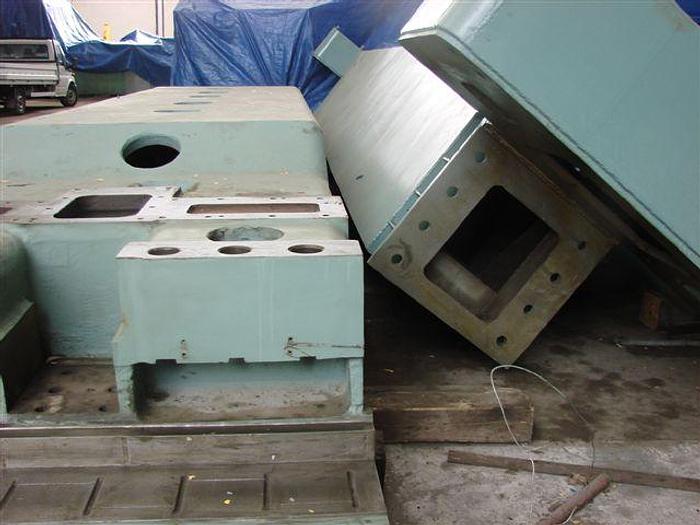

Lathe Vertical Turning Kolomna, Russia 1580
Specifications
| Manufacturer | Kolomna, Russia |
| Model | 1580 |
| Year | 1970 |
| Condition | Used |
| Stock Number | MA2323 |
| Item condition | Good condition |
| Capacity tons | 8000 |
Description
Max. work piece dia. : 8000 mm,
Max. work piece height : 3200 mm,

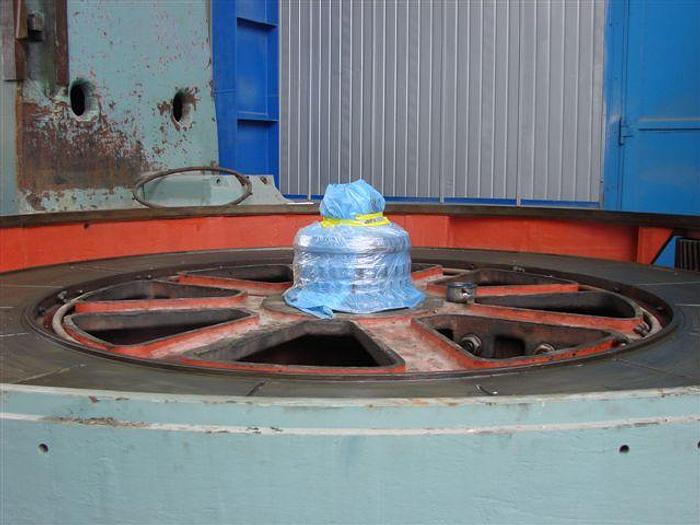

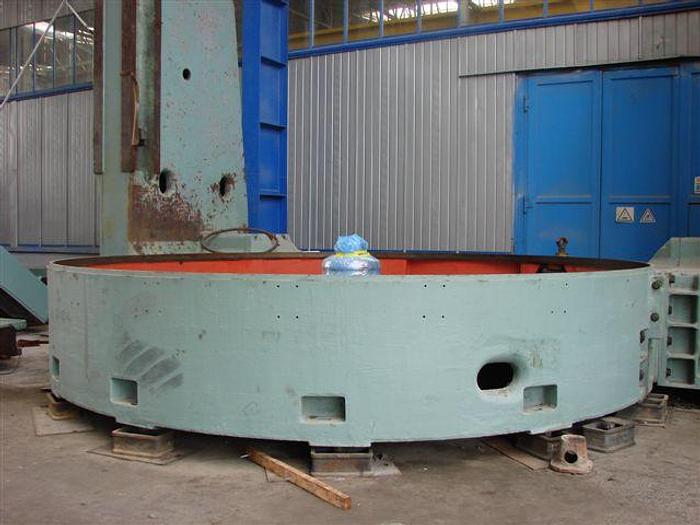

Faceplate dia. : 7100 mm,
Max. travel of the runners of the vertical supports : 2000 mm,
Max. angular displacement of the supports : degrees 15 + 30,
Max. work piece weight : 125 tons,
Max. cutting effort at the right support : 10 tons,
Max. cutting effort at the left support : 8 tons,
Max. total cutting effort by the two supports : 16 tons,
Max. torque at the faceplate : 40000 kgm
RPM of the faceplate : 0,22-18,3
Limits of the vertical and horizontal feeds : 0,0352-285 mm/min,
The power of the main drive : 132 kW,
The machine weight : 248 tons.

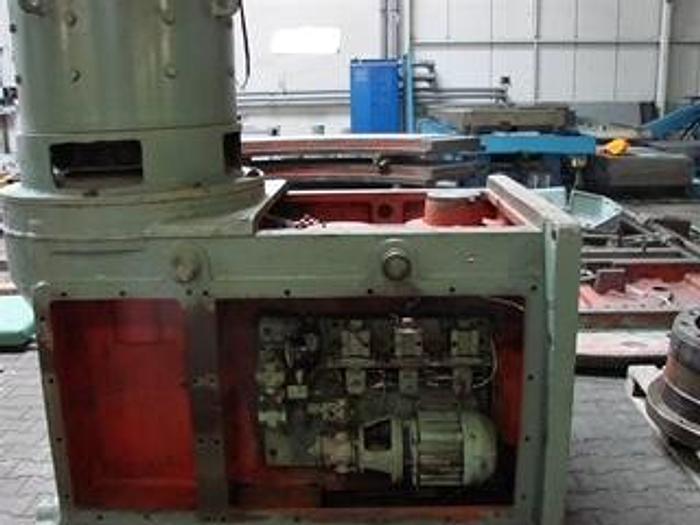

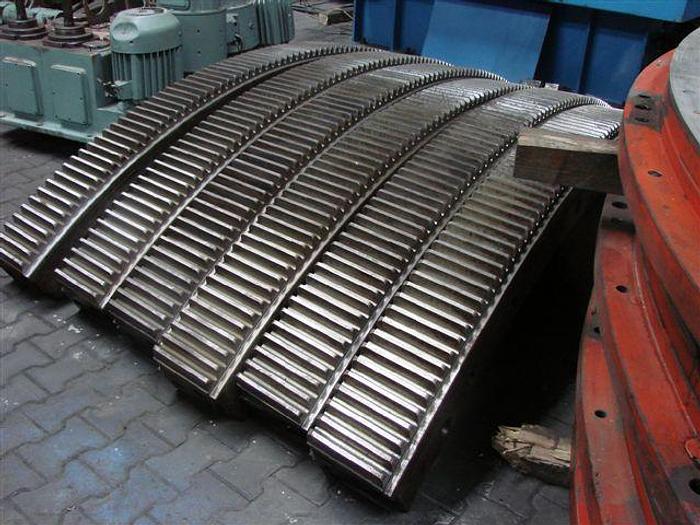

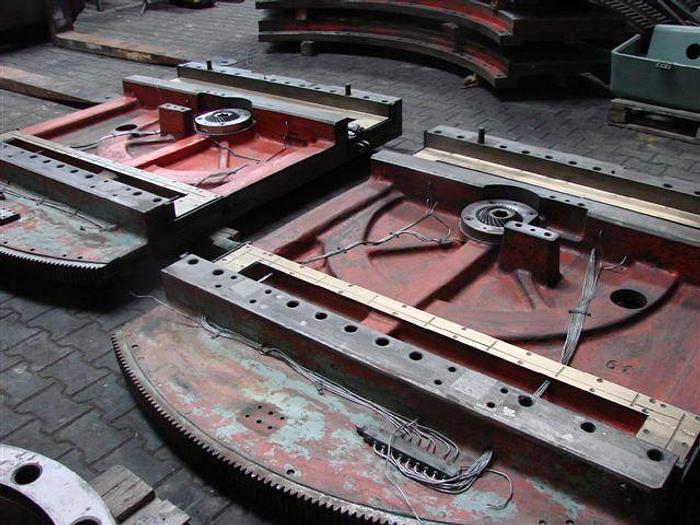

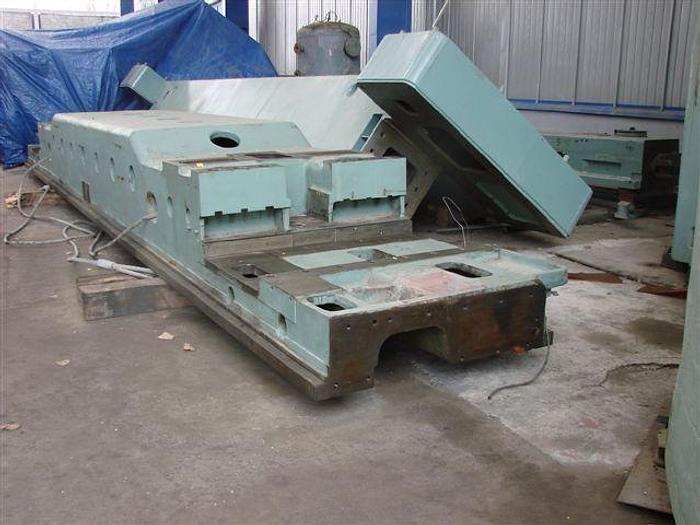

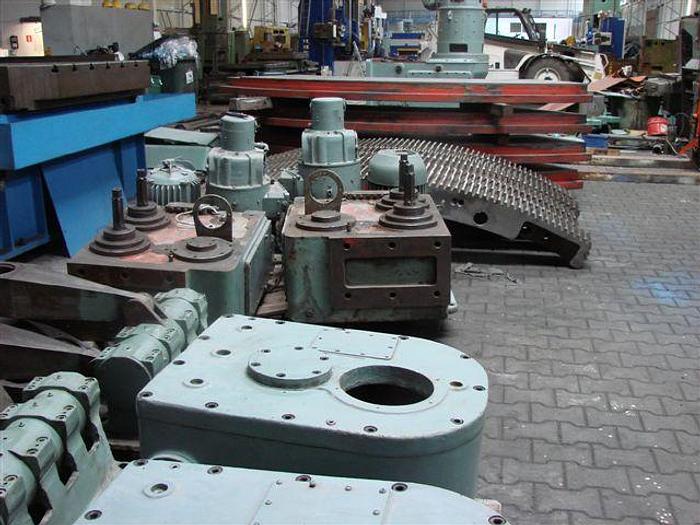

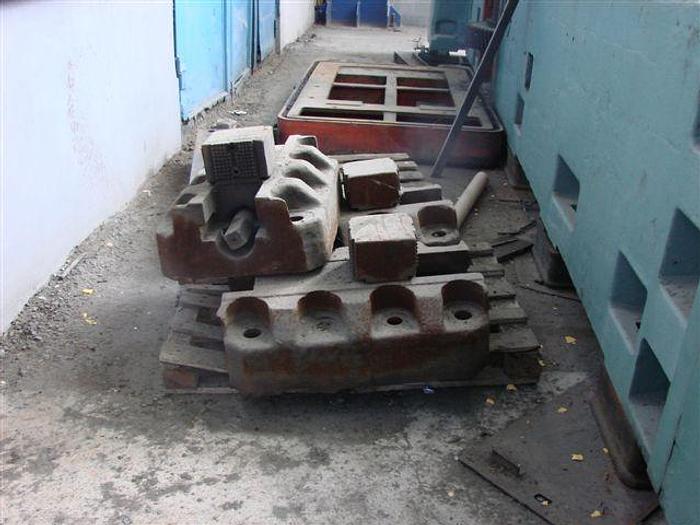

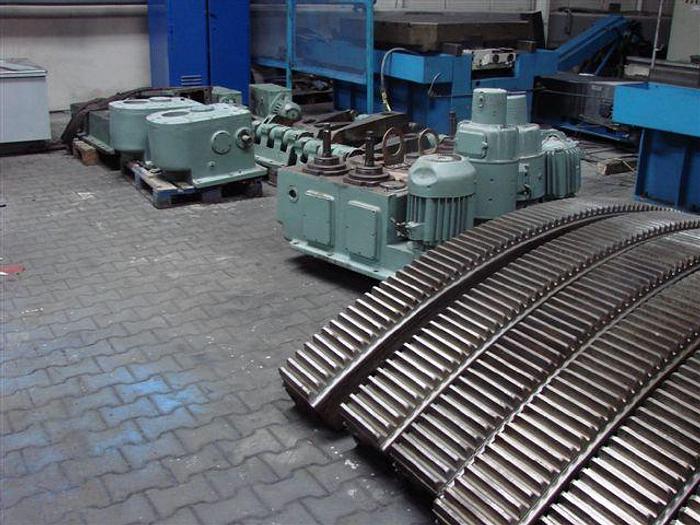

Machine fully modernized and modified with new electrical and lubrication unit, painted, replacement of damaged mechanical parts, with possibility of upgrading. The upgrade is made of cast iron.
