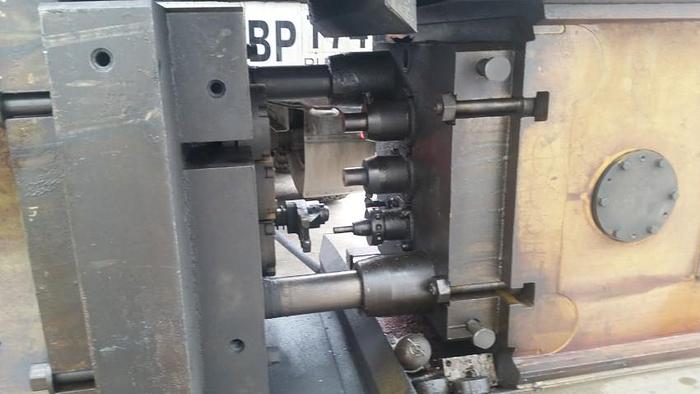

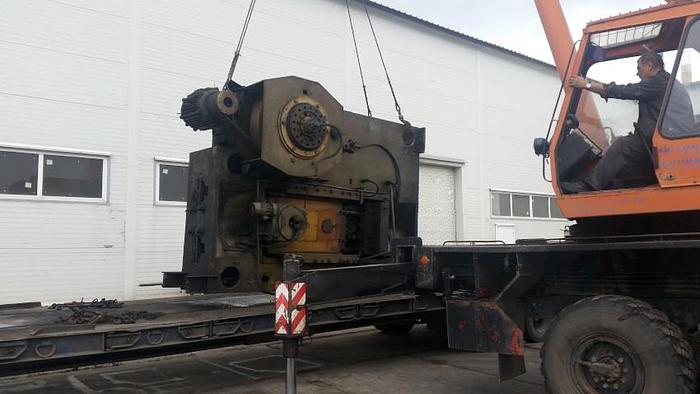

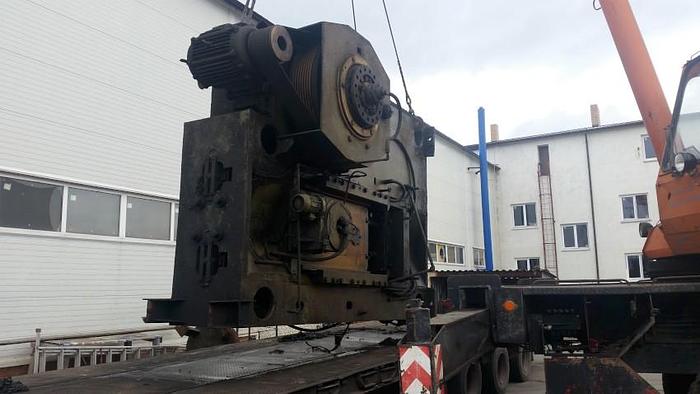

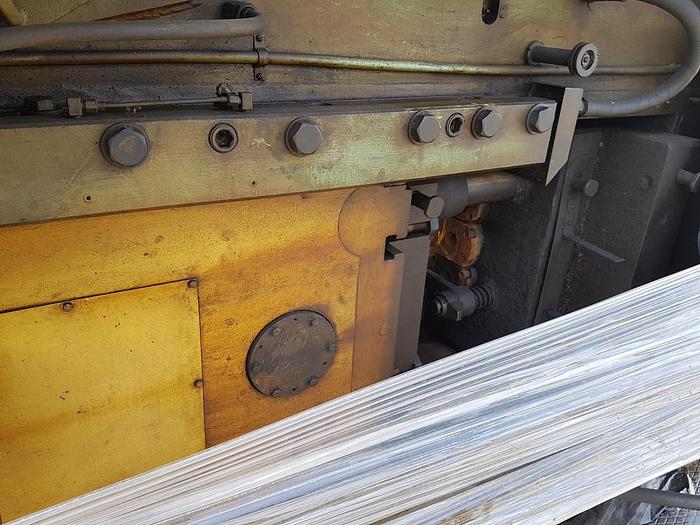

Press Cold Extrusion KB0034
Specifications
| Manufacturer | Barnaul, Russia |
| Model | KB0034 |
| Year | 1989 |
| Condition | Used |
| Stock Number | MA2319 |
| Item condition | Good working condition |
| Capacity tons | 250 |
Description
Capacity : 250 tons,
Ram stroke : 200 mm,
Max. distance from : 28 mm,
Ram stroking rate : 40 c/mn,
Distance table /ram : 490 mm,
Ram adjustment : 16 mm,
Table area : 800 x 800 mm,
Lower ejector:
Stroke : 110 mm,
Capacity : 32 ton,
Upper ejector :
Stroke : 16 mm,
Capacity : 10 tons,
Main Motor power : 25 kW,
Dimensions : 2950 x 1950 mm,
Height over the floor : 4090 mm,
Air consumption per slide stroke : 0.00615 m3,
Oil centralized lubrication,
Overload security,
Weight : 21.5 tons.
