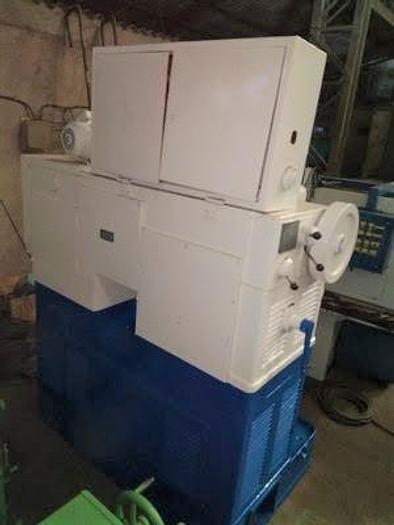

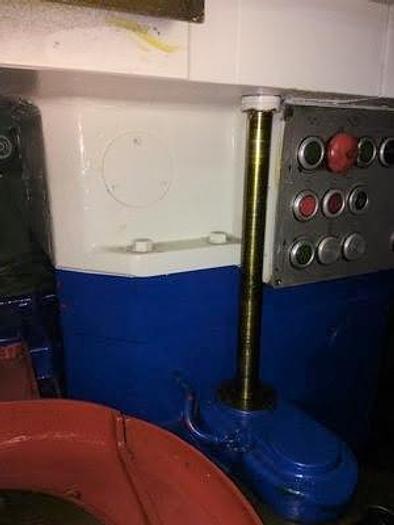

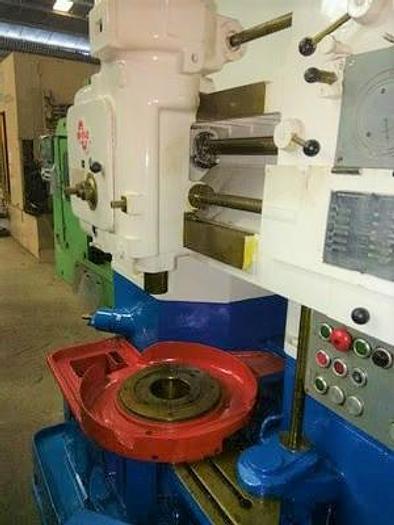

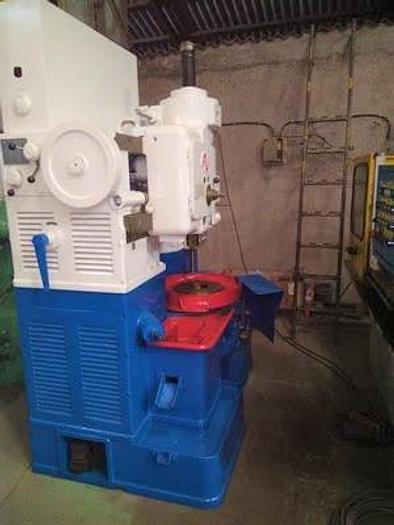

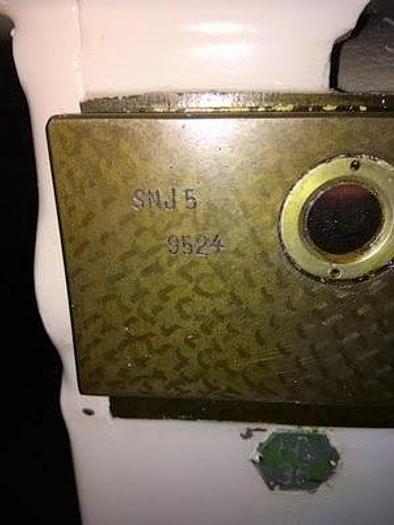

Gear Shaper SNJ5 Lorenz

Max wheel dia : 500 mm,

Module : + 5,

Max. gear width : 100 mm,

Max gear shaping length : 75 mm,

Module : 5

Number of strokes / min of the cutter : 45/424,

Cutting speed : 18,

Screw diameter : 78 mm,

Max gear shaping diameter : 500 mm,

Max external gear shaping diameter : 500 mm,

Max internal gear shaping diameter : 450 mm,

Hole diameter of the table : 125 mm,

Diameter of table : 310 mm,

Machine dimensions : 2300 x 1800 x 1100 mm,

Machine weight : 5 tons,

Total power : 3 Kw,

Voltage : 220 / 380V.
