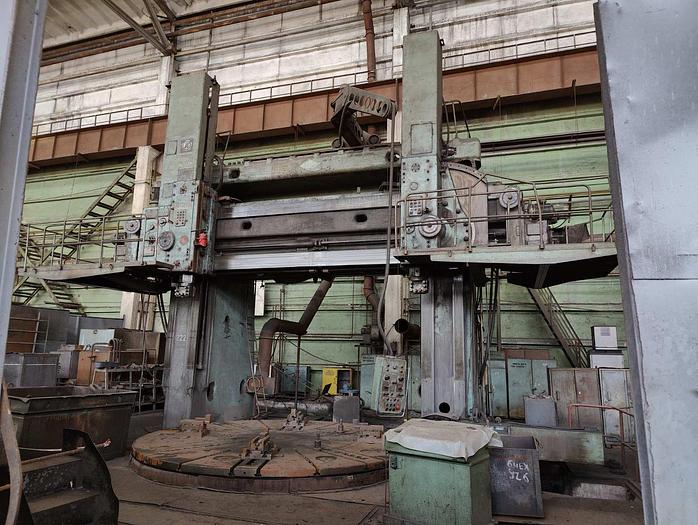

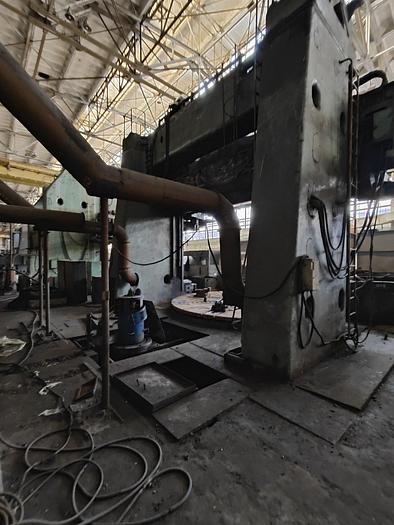

Lathe Vertical Turning Kolomna, Russia 1540

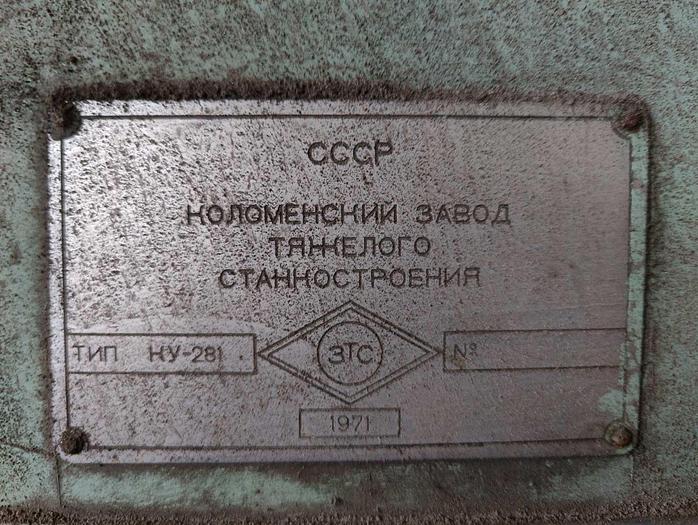

VTL KY 281 Kolomna

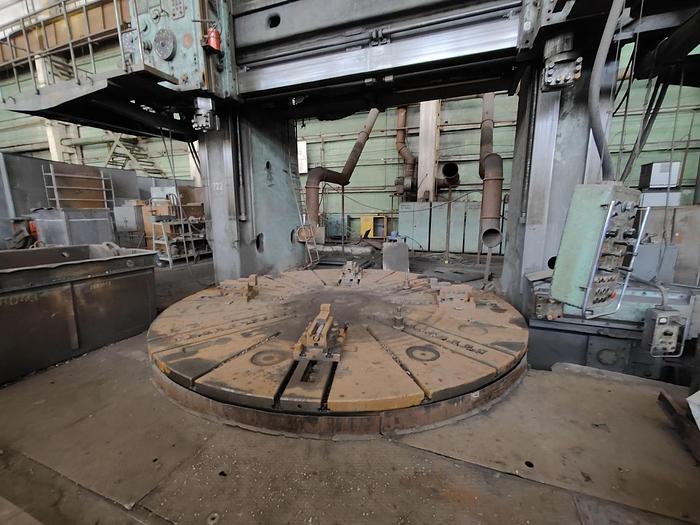

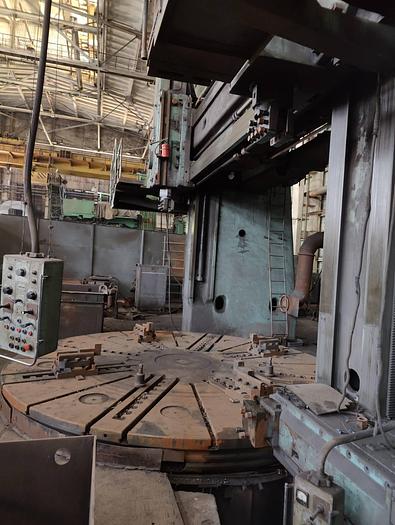

Faceplate dia : 4000 mm,

Max work piece size: diameter : 4000 mm,

Height : 2000 mm,

Max work piece weight : 50 tons,

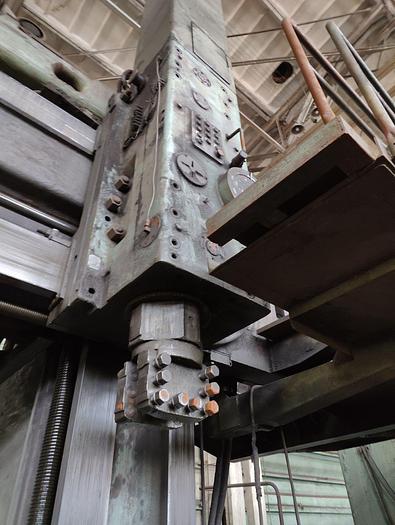

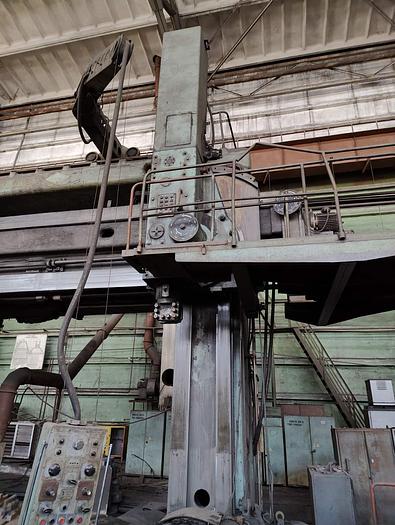

Upper left support :

-Maximum stroke :

Horizontal : 2300 mm,

Vertical : 1250 mm,

Max horizontal stroke : 2300 mm

Max vertical stroke : 1250 mm,

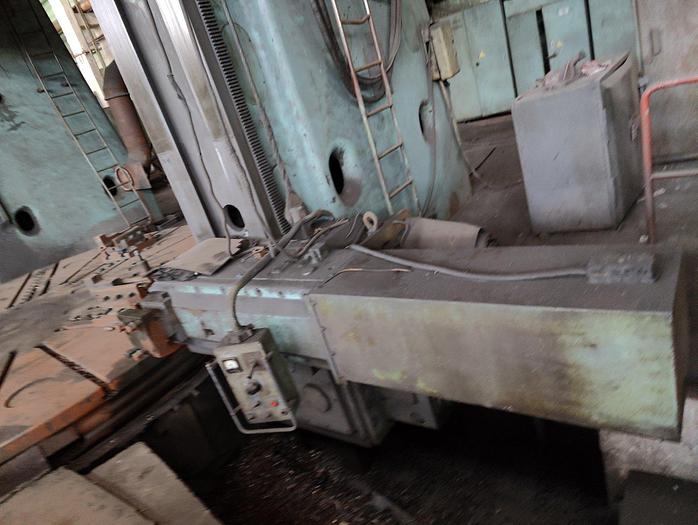

Strokes of the side support:

-Horizontal : 950 mm,

-Vertical : 1820 mm,

Supply power : 380 V 50Hz,

Power of main drive DC electric motor : 63 kW,

Total installed power : 88,1 kW,

Overall dimensions : 5920 x 10145 x 5575 mm,

Machine weight : 100 tons.
