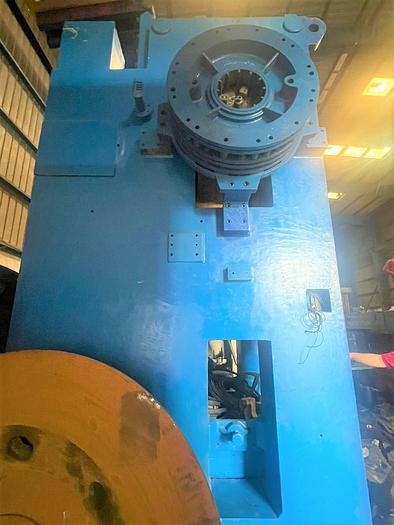

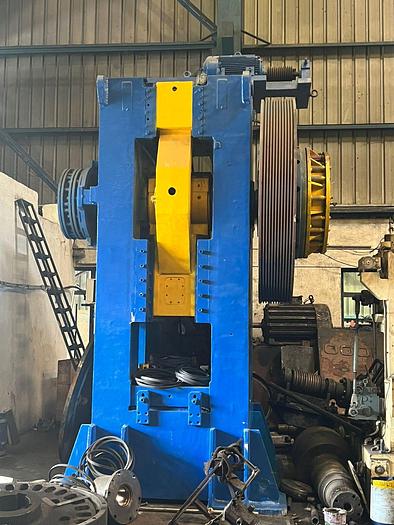

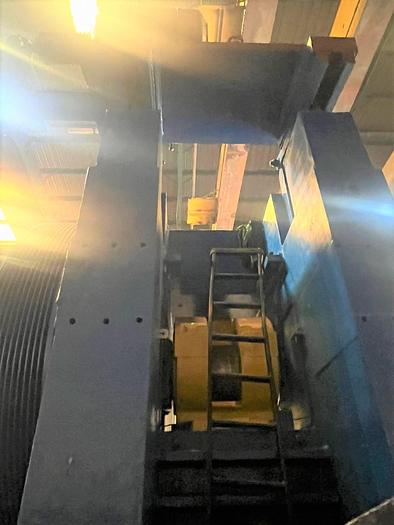

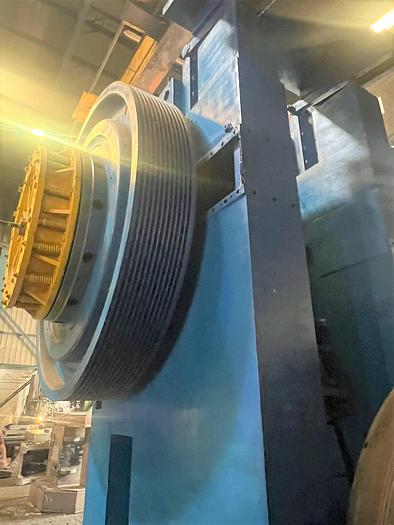

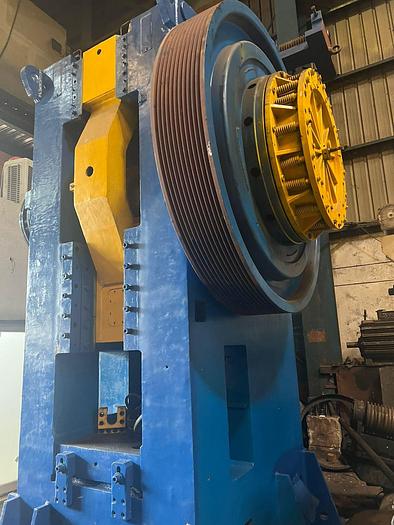

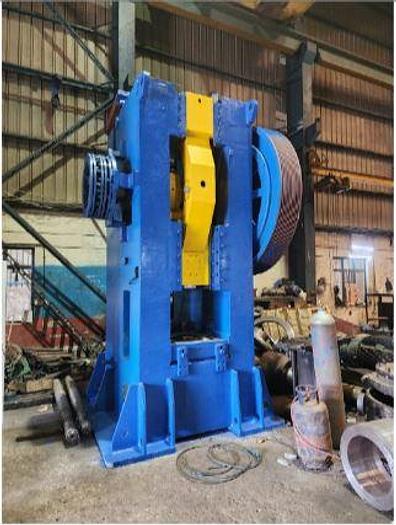

750 tons Press Hot Forging Manzoni

Capacity : 750 tons,

Stroke : 180 mm,

Stroke per min. : 100,

Table Dimensions (LR x FB) : 780 × 1160 mm,

Ram Surface (LR x FB) : 630 x 780 mm

Table-Ram Distance : 720 mm,

Table Adjustment :15 mm,

Distance between frontal uprights : 70 mm,

Distance between lateral uprights : 350 mm,

Overall Dimensions (H x L x D): 4600 x 2900 x 2100 mm,

Approx. Weight : 40 tons.

Bolster is included.

Recondition details of manzoni 750 ton press

Works to be done:

1. All bush bearing of main shaft to be checked as per tolerances

2. Bearings in flywheel to be checked as per tolerances

3. Clutch & brake functioning & friction liners to be changed

4. U-seals, ‘o’ rings to be changed in whole assembly.

5. Motor mounting, belt to be checked.

1. Slide:

A) Slide gibs / liners to be checked as per tolerances

B) Slide pnuematic, Balancer seals to be changed.

2. All pneumatic pipeline alongwith air tanks to be provided.

3. Complete lubrication system to be provided

4. Electricals:

A) new wiring fitting

B) new control panel to be provided

C) motor will be provided as per indian voltage.

D) plc control to be provided with 7 inch touchscreen hmi.

E) with encoder

F) table adjustment to be done motorized

5. Alignment

A) machine will be inspected under jis grade ii.

6. Repainting of above machine
