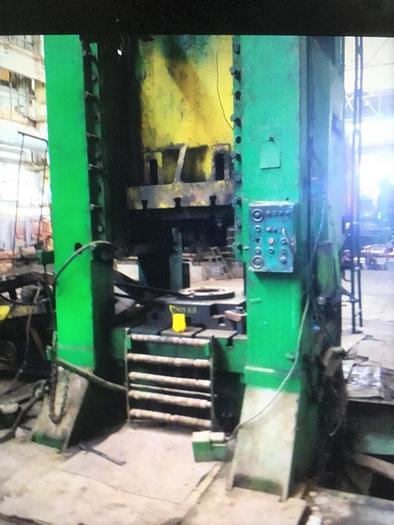

Press Trimming K9538

Capacity : 630 tons,

Slider stroke : 400 mm,

Slider strokes : 20 stroke per Min.,

Shut height : 570 mm,

Stroke path till its position where it develops nominal capacity : 9,5 mm,

Table size : 1250 x 1250 mm,

Table gap size : 800 x 800 mm,

Slider size : 1000 x 1000 mm,

Distance adjustment between table and slider : 180 mm,

Motor capacity : 61 kW,

Bolster plate thickness : 180 mm,

Window size : 750 x 400 mm,

Ram load : 2 ton

Voltage : 340 V,

Machine dimensions : 3600 x 3470 x 6190 mm,

Machine weight : 49.8 tons.
