Lathe Vertical Turning CNC VTB40/55VC

Price

Contact us for price

orCall +919920651051

Specifications

ManufacturerS&T
ModelVTB40/55VC
Year2012
ConditionUsed
Stock NumberMA2298
Item conditionGood condition, still on foundation

Description

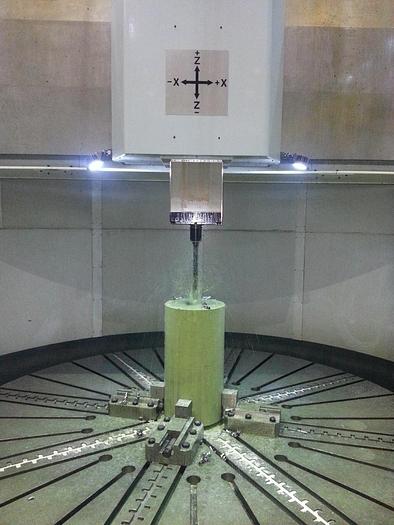

Turn mill , CNC Vertical lathe with C- axis.

Swing : 5500 mm,

Table : 4000 mm,

Height : 2600 mm,

Main Spindle : 400 x 400 mm,

C-Axis : 0.001 deg,

ATC : 70 kg,

X axis : 200 + 4450 mm,

Z axis : 1500 mm,

W axis : 1750 mm,

Max weight : 8 m/min,

Table dia : 1 m/min,

Motor : AC 22/26,

Space:

L x W : 14000 x 9950 mm,

H : 11000 mm,

Weight : 90,000 kgf,

Loading capacity : 45 tons,

CNC Controller : Fanuc 31i

Manual : Available
