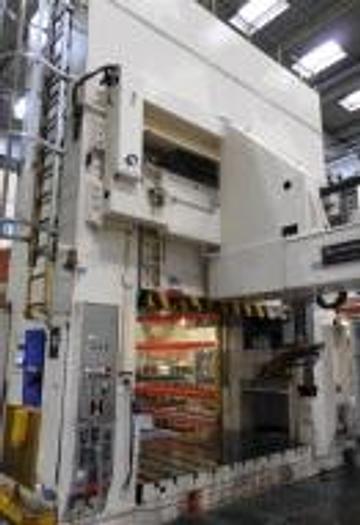

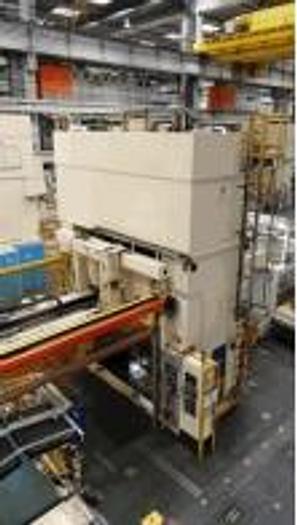

800 tons Press Forging Hydraulic Muller

Hydraulic Double-Column Press

Capacity : 800 tons,

Stroke : 1000 mm,

Distance between Columns : 3250 mm,

Side window : 900 mm,

Daylight table - tam (Stroke up) : 1.900 mm,

Surface of table : 3100 x 1900 mm,

Press force of die cushion in table : 300 tons,

Stroke of die cushion in table : 300 mm,

Surface of die cushion in table : 2500 x 1800 mm,

Surface of ram : 3100 x 1900 mm,

Force of drawing cushion in ram : 80 tons,

Stroke of drawing cushion in ram : 200 mm,

Oil Volume 4700 l,

Power requirement : 200 kW,

Dimensions (W x D x H) : 4950 x 3300 x 1020 mm,

Height above Floor : 7050 mm.

With oil-hydraulic drive, hydraulic controlled drawing cushion in table and ram, hydraulic cutting impact cushioning

Control : Siemens S 5.
