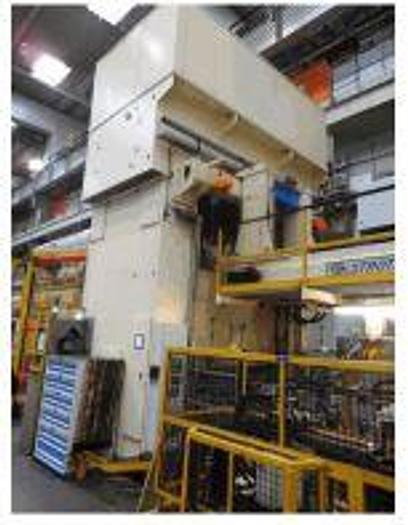

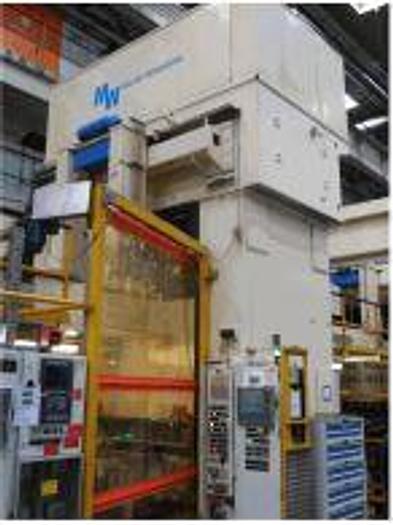

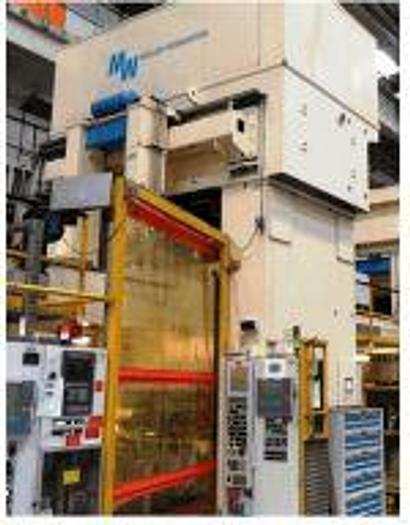

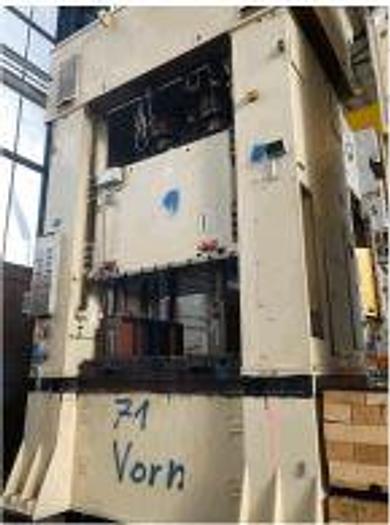

800 tons Press Forging Hydraulic BZE 800-25.3.1 Muller

Hydraulic Double-Column Press

Capacity : 800 tons,

Stroke : 1050 mm,

Distance between Columns : 2560 mm,

Side Window : 1000 mm,

Daylight Table - Ram (Stroke up) : 1870 mm,

Surface of Table : 2500 x 1730 mm,

Press Force of Die Cushion in Table : 300 tons,

Stroke of Die Cushion in Table : 395 mm,

Surface of Die Cushion in Table : 2300 x 1300 mm,

Surface of Ram : 2500 x 1730 mm,

Force of Drawing Cushion in Ram : 63 tons,

Stroke of Drawing Cushion in Ram : 150 mm,

Oil Volume : 4300 l,

Power Requirement : 200 kW,

Dimensions (W x D x H) : 4100 x 2800 x 1000 mm,

Height above Floor : 7000 mm,

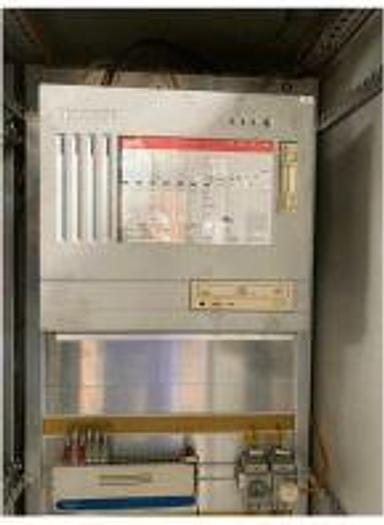

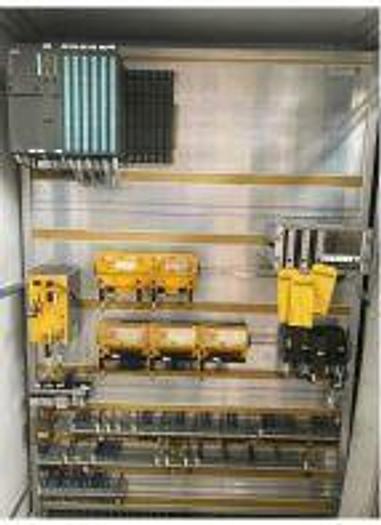

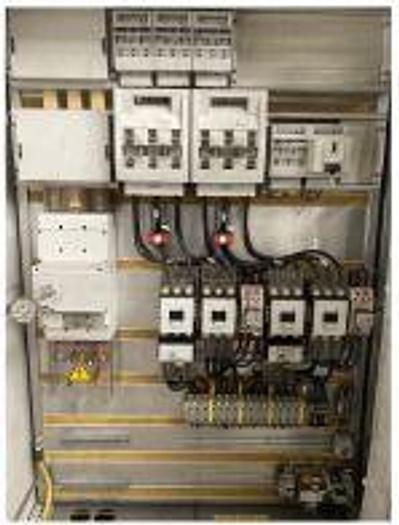

Control : Siemens S7

with oil-hydraulic drive, hydraulic controlled drawing cushion in table and ram.
