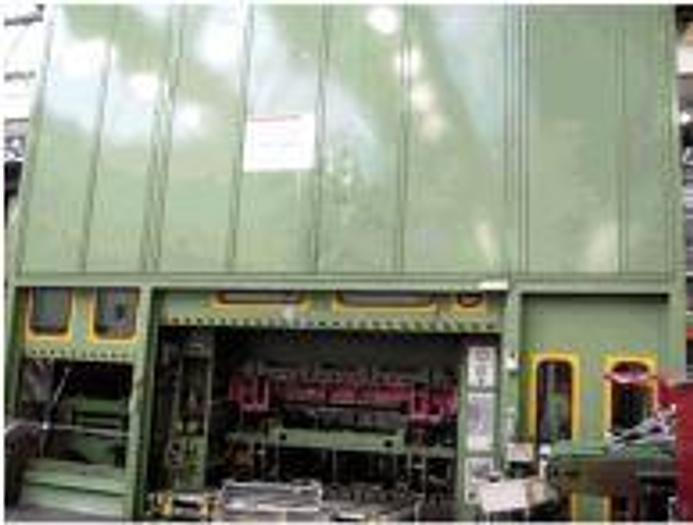

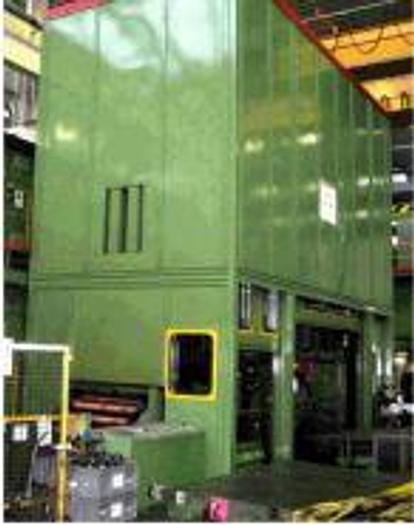

800 tons Press Forging Hydraulic SMG DS800S

Hydraulic Double-Column Press

Capacity : 800 tons,

Stroke : 300 mm,

Distance between Columns : 3010 mm,

Side Window : 1500 x 1400 mm,

Daylight Table - Ram (Stroke up) : 1.350 mm,

Daylight Table - Blank Holder (Stroke up) : 1.350 mm,

Surface of Table : 3000 x 1800 mm,

Table Height above Floor : 500 mm,

Surface of Ram 3000 x 1800 mm,

Speed Down : 300 mm / s,

Oil Volume : 900 l,

Power Requirement : 200 kW,

Dimensions (W x D x H) : 5200 x 2600 x 7500 mm,

Height above Floor : 5400 mm,

Height beneath Floor : 2100 mm,

Weight : 80 tons.

Control : Konventionell

with oil-hydraulic drive, controllable dependent on pressure/time and way, cutting impact cushioning,

mechanical depth stop, ram interlocking in upper position.
