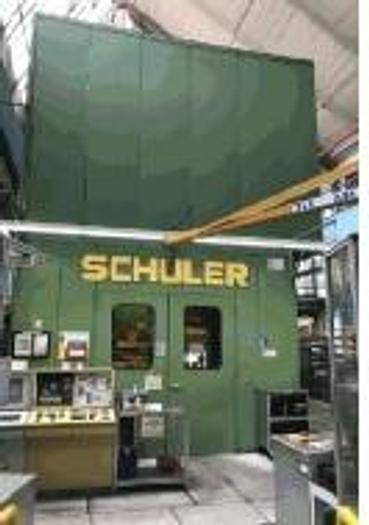

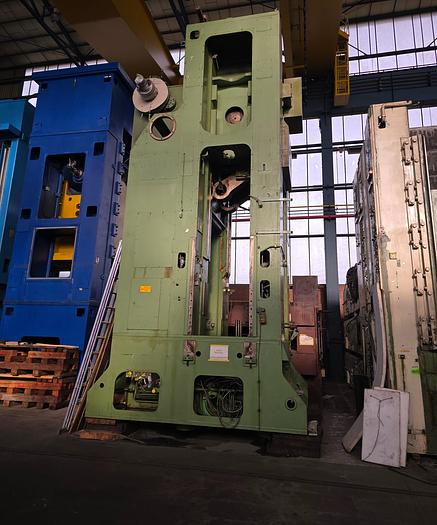

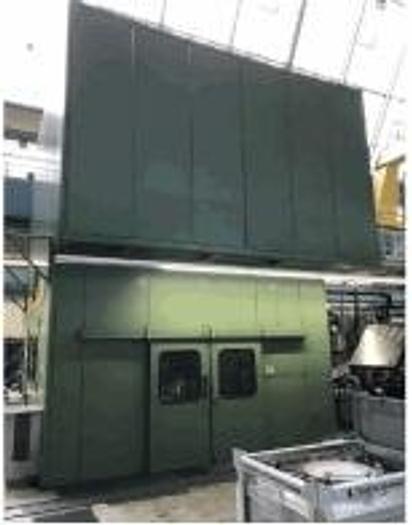

1000 tons Press Knuckle Joint Schuler German KB 2-1000-1

Capacity : 1000 tons,

Stroke : 315 mm,

Stroke per minutes : 21-42,

Distance between column : 1260 mm,

Side Window : 830 mm,

Daylight (max. Stroke up, Adjustment up) : 1295 mm,

Surface of table : 1250 x 800 mm,

 Force of ejector in Table : 63 tons,

Stroke of ejector in Table : 75 mm,

Table height above Floor : 670 mm,

Surface of ram : 1250 x 800 mm,

Force of ejector in ram : 16 mm,

Stroke of Ejector in ram : 23 mm,

Adjustment of Ram : 20 mm,

Power Requirement : 135,0 kW,

Weight : 120 tons,

Dimensions (W x D x H) : 5900 x 4800 x 7900 mm,

Height above Floor : 6900 mm,

Height beneath Floor : 1000 mm,

With ejector in table and ram, material feeding system, tool changing cars (Hywema, yom 1997; loading weight 2 x 3000 kg), CNC 2-axis transfer (Dreher, yom 2008), optical parts detection, washing unit, robots for taking out and stacking

Control of the press: Siemens S 5; control of the feeder : Siemens S 7
