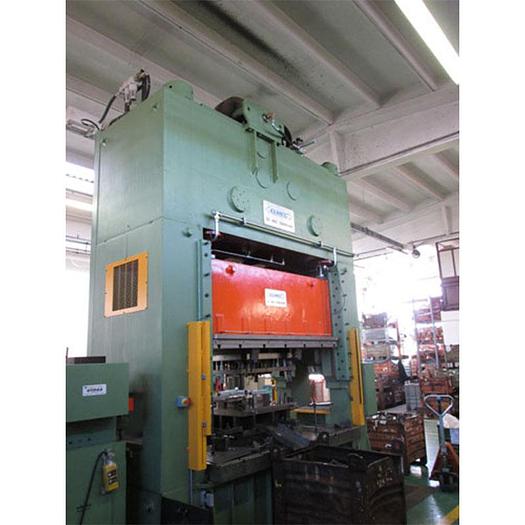

Press Sheet Stamping Mechanical Radaelli

H-frame Press :

Capacity : 350 tons,

Stroke : 280 mm,

Stroke per minute : Da 20 A 28,

Table : 2500 x 1600 mm,

Slide : 2500 x 1200 mm,

Adjustment slide : 200 mm,

Light at T.D.C. : 1080 mm,

Lateral window dimensions : 800 x-y/mm,

Number of conrods : 2,

Weight : 42 tons.

revised in 2021.

Technical manuals available
