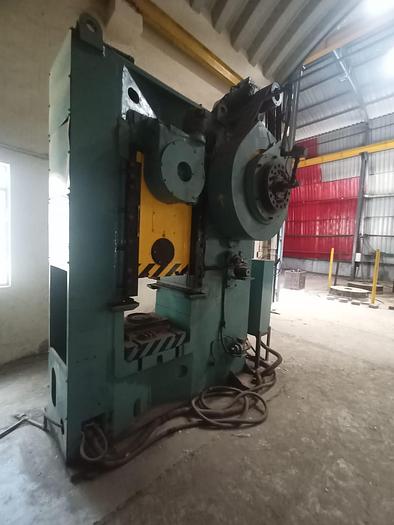

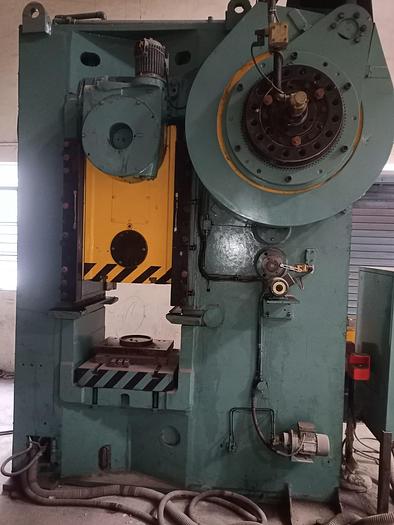

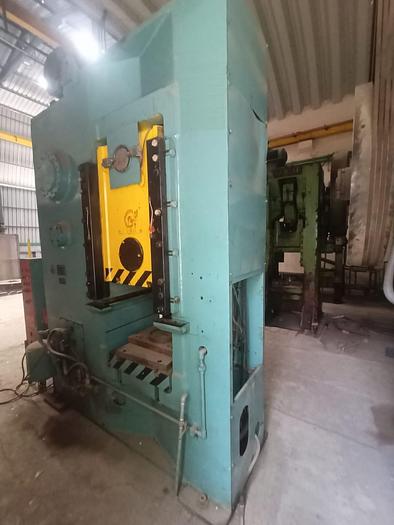

Press Knuckle Joint Coining Russian KB8338

Capacity : 630 tons,

Stroke : 150 mm,

Stroke per minutes : 40,

Shut height : 475 mm,

Bolster plate to ram adjustment stroke : 15 mm,

Bed dimensions : 630 x 630 mm,

Bolster plate thickness : 120 mm,

Lower knockout stroke : 110 mm,

Force : 20 tons,

Upper knock out : stroke 10 mm,

Force 6.5 tons,

Main drive motor power : 21 kW,

Overall dimensions : 1700 x 1600 x 3000 mm,

Weight : 14.3 tons.

Lubrication : automatic greese,

Clutch and brake : Dry /Segmented DISC type.
