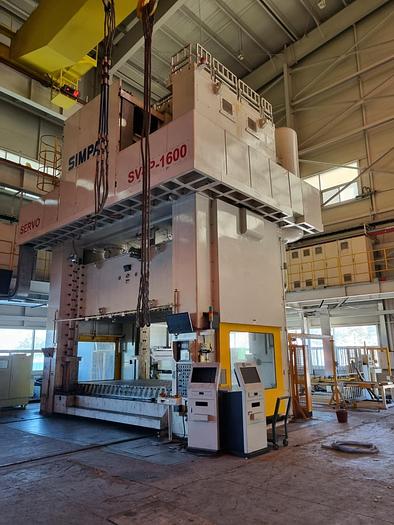

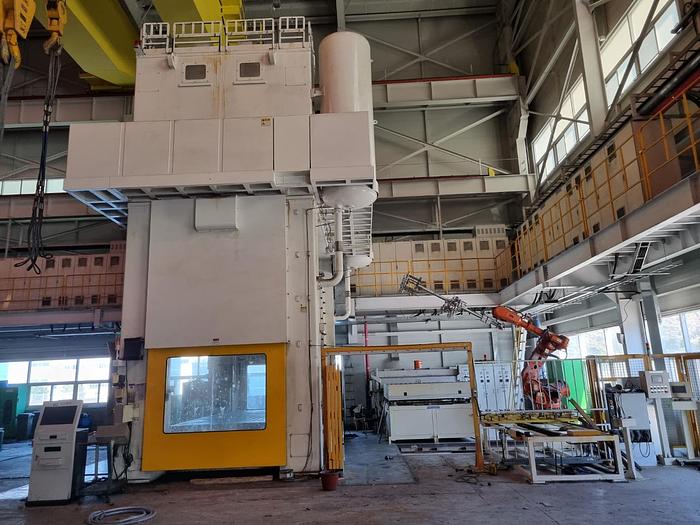

Press Sheet Stamping Mechanical Simpac SV4P-1600
Sold
Specifications
| Manufacturer | Simpac |
| Model | SV4P-1600 |
| Year | 2014 |
| Condition | Used |
| Stock Number | MA2252 |
| Capacity tons | 1600 |
| Item condition | Good working condition |
Description
Capacity : 1600 tons,
Stroke : 700 mm,
Stroke per minutes : 1-20,
Die height : 1500 mm,
Slide adjustment : 600 mm,
Slide area (LR x FB) : 4800 x 2600 mm,
Bolster (LR x FB) : 4800 x 2600 mm
Bolster thickness : 300 mm,
Main motor : 225 x 4EA Kw,
Adjust motor : 11 x 6 KWxP,
Voltage : 440 x 60 VxHz,
Rated current : 740 A.
Die cushion
Capacity : 260 tons,
Stroke : 260 mm,
Pad area (LR x FB) : 4000 x 2000 mm,
Adjust motor : 2.2 x 6 KWxP.
Technical manuals and drawings available.
