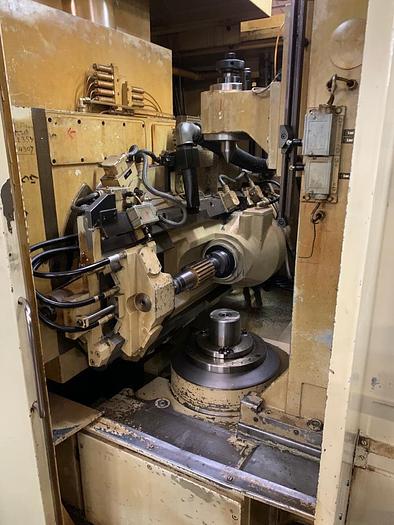

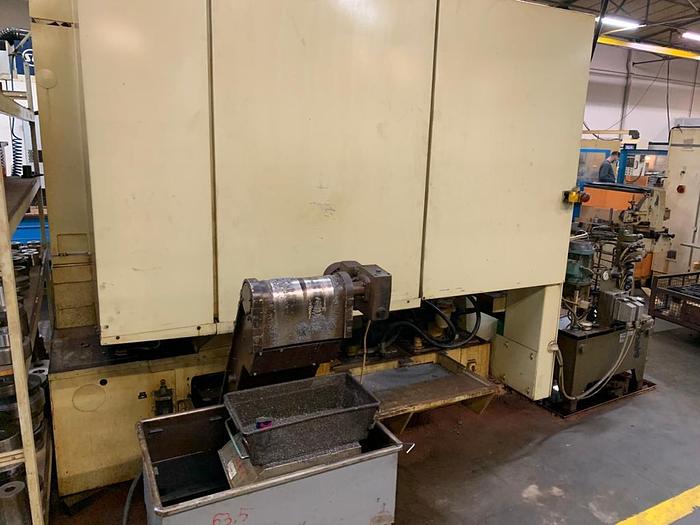

Gear Hobbing Machine CNC WMW Modul ZFWZ03 CNC
Specifications
| Manufacturer | WMW Modul |
| Model | ZFWZ03 CNC |
| Year | 1992 |
| Condition | Used |
| Stock Number | MA2247 |
| Item condition | Good condition |
| Capacity tons | 0 |
Description
Max. module -for plain milling cutters : 8,
For forming cutters : 14,
Max. diameter of gear : 250 mm (315 mm),
Max. axial travel : 280 mm,
Max. tangential (milling) travel : 160 mm,
Max. angle of teeth incline : 45°,
Diameter of clamping surface of table : 295 mm,
Max. diameter of milling cutter : 160 mm,
Max. length of milling cutter : 200 mm
Distance between clamping surface of table and center of milling cutter : 190–470 mm,
Cutter revolutions : 50–400 rpm,
Rapid traverses : -axial: 1600 mm/min,
Tangential : 800 mm/min,
Rradial : 2000 mm/min.
Machine dimensions : 3930 × 3460 × 2500 mm,
Machine weight: cca 8500 kg,

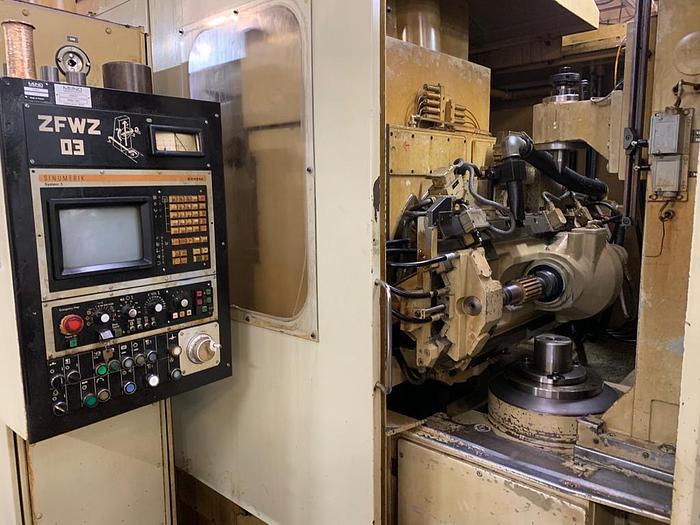

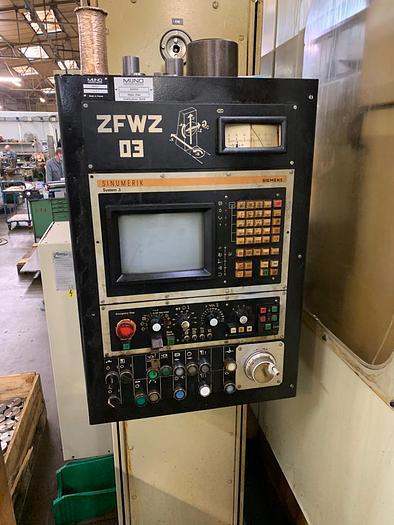

Control system : SINUMERIK 3M (6 controlled axes: X, Y, Z, A, B, C).
