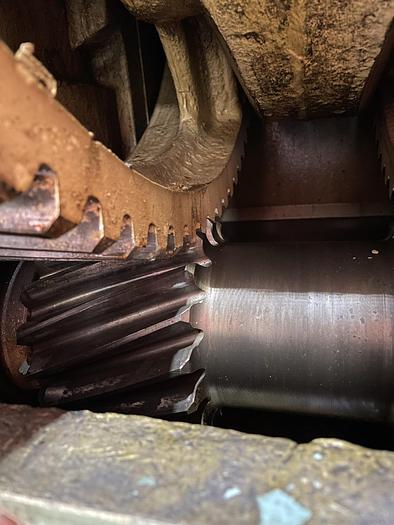

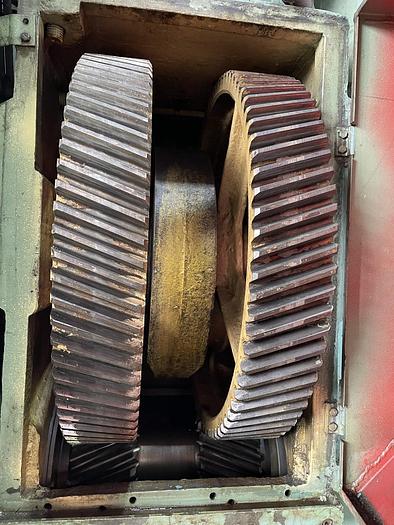

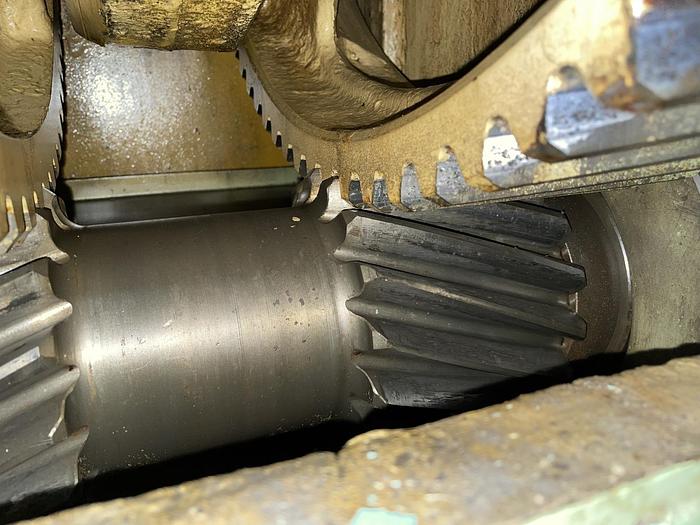

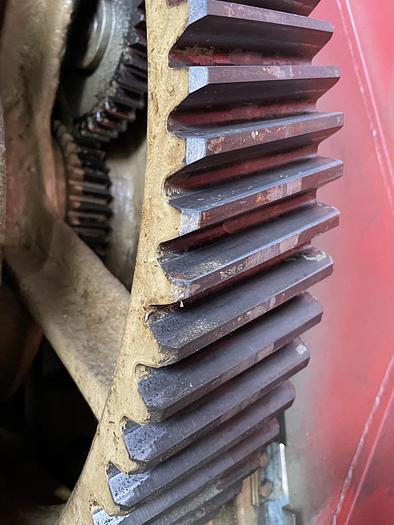

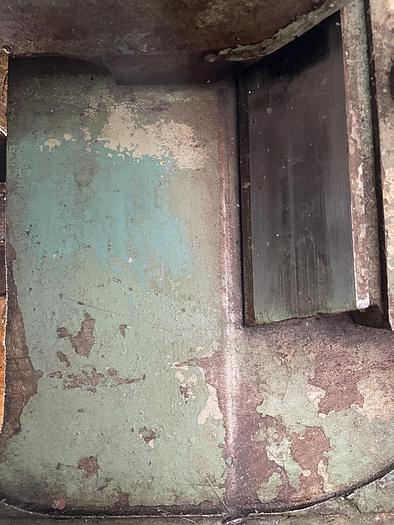

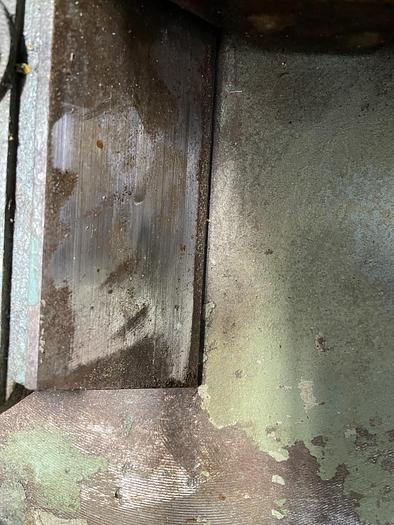

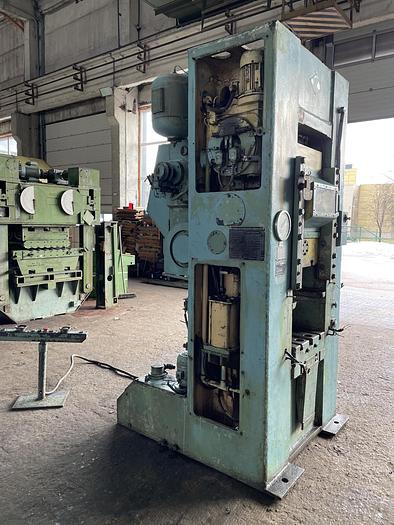

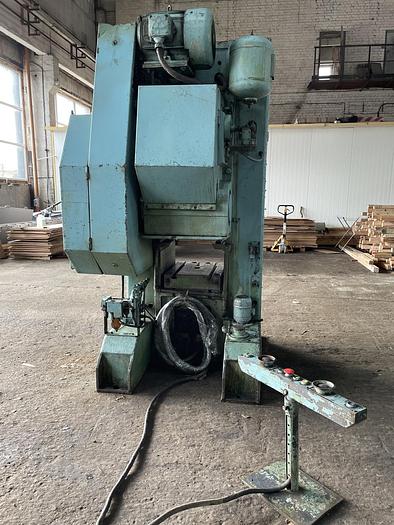

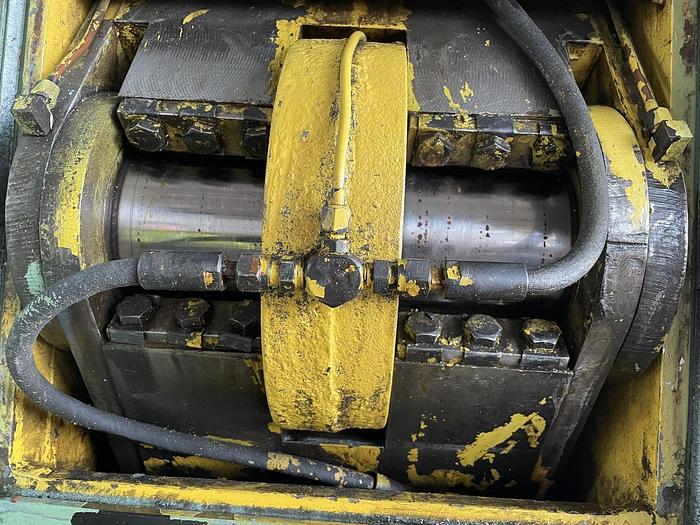

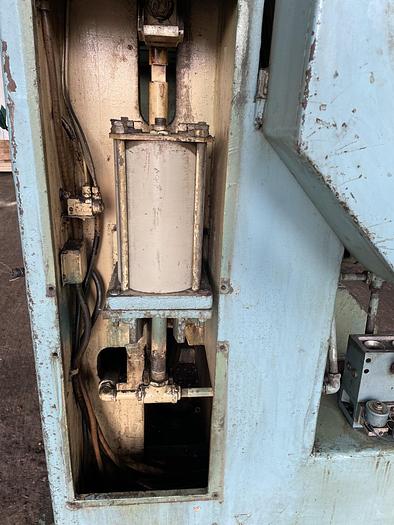

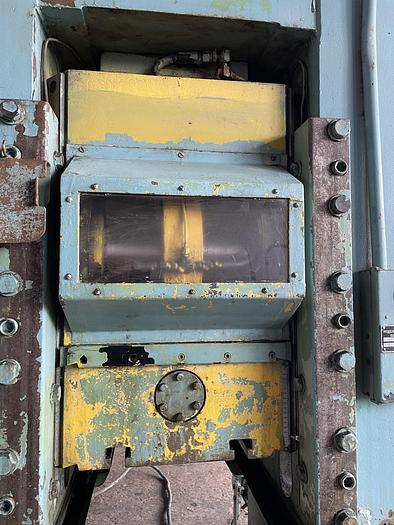

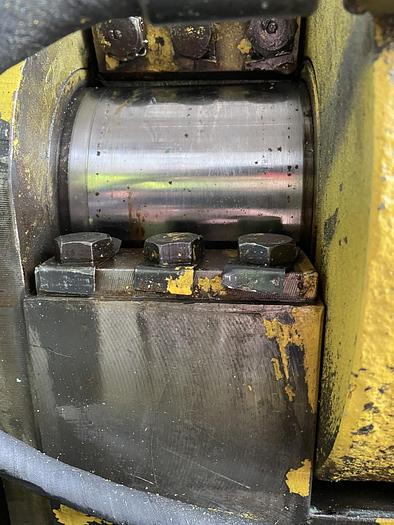

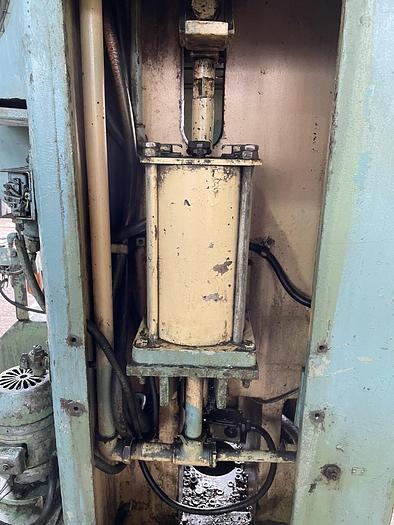

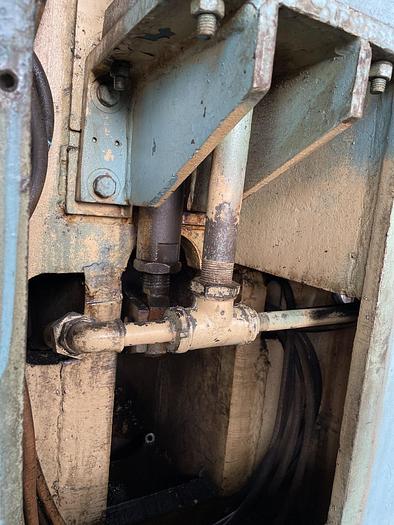

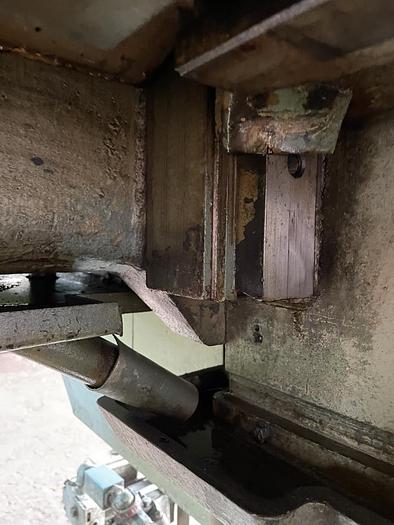

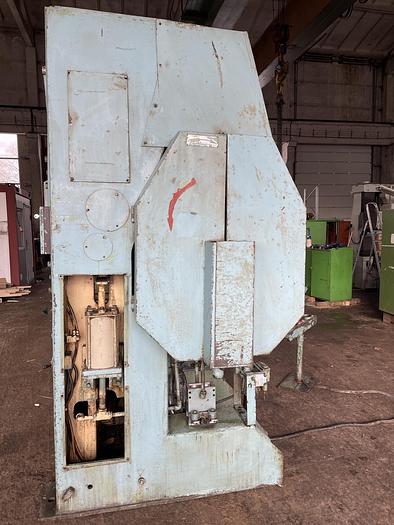

Press Knuckle Joint Coining K8336

Capacity : 400 tons,

Ram stroke : 130 mm,

Stroke per minute : 50 spm,

Stroke of ram to its utmost lower position: 1,6 mm,

Distance between bolster plate and ram in its lower position at upper position of adjustment : 375 mm,

Shut height : 475 mm,

Adjustable distance between bolster plate and ram : 12 mm,

Bed size : 500 x 500 mm,

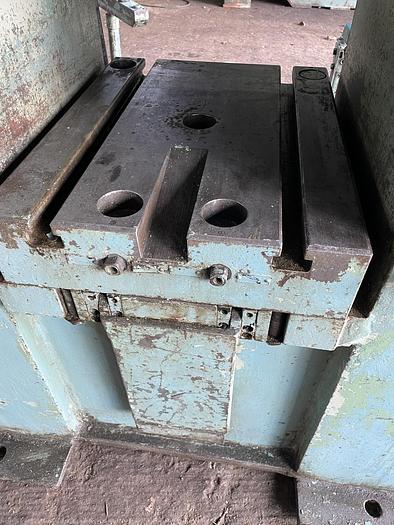

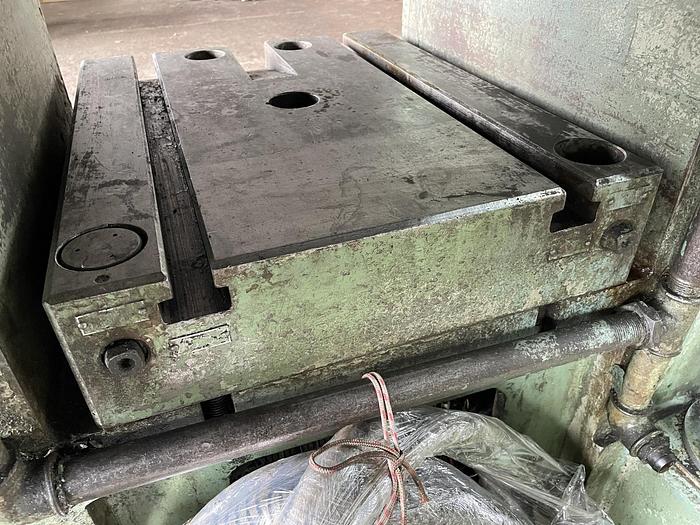

Bolster plate dimensions:

-From left to right : 500 mm,

-From front to back : 500 mm,

Bolster plate thickness : 100 mm,

Ram dimensions from front to back : 400 mm,

Ejector stroke:

-Upper : 16 mm,

-Lower : 80 mm,

Ejector force:

-Upper : 40 kN,

-Lower : 120 kN,

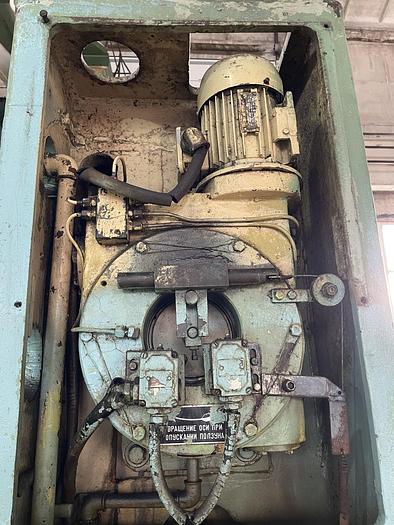

Main drive power : 12 kW ,

Press dimensions :

-From left to right : 1940 mm,

-From front to back : 1240 mm,

Height above floor level : 2800 mm,

Weight : 8.5 tons.
