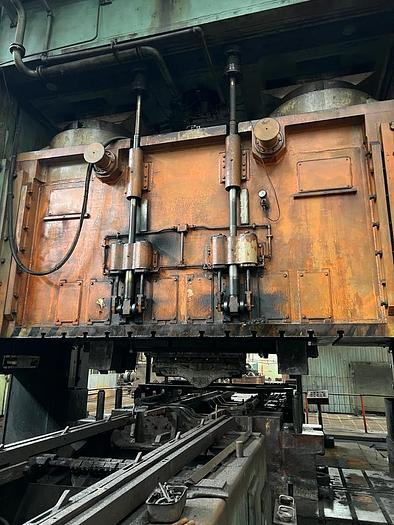

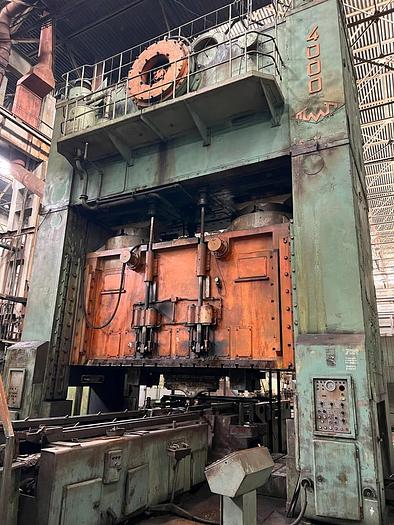

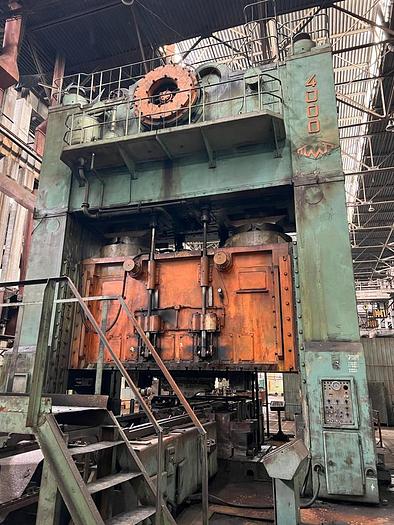

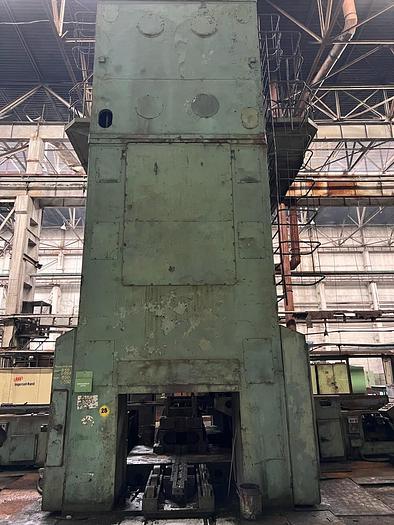

Press Sheet Stamping Mechanical K3546

Capacity : 4000 tons,

Slider's undershoot to BDC : 10 mm,

Slider stroke : 630 mm,

Frequency of continuous strokes per min : 10 ,

The highest frequency of single strokes per min : 7,

Closed height : 1180 mm,

Adjustment of closed height : 200 mm,

Slider's dimensions :

-From left to right : 5000 mm,

-From front to back : 2000 mm,

Dimensions of the plate of the die:

-From left to right : 5000 mm,

-From front to back : 2000 mm,

Capacity of the main drive : 250 kW,

Overall dimensions :

-From left to right : 7640 mm,

-From front to back : 5980 mm,

-Height above floor level : 10490 mm.
