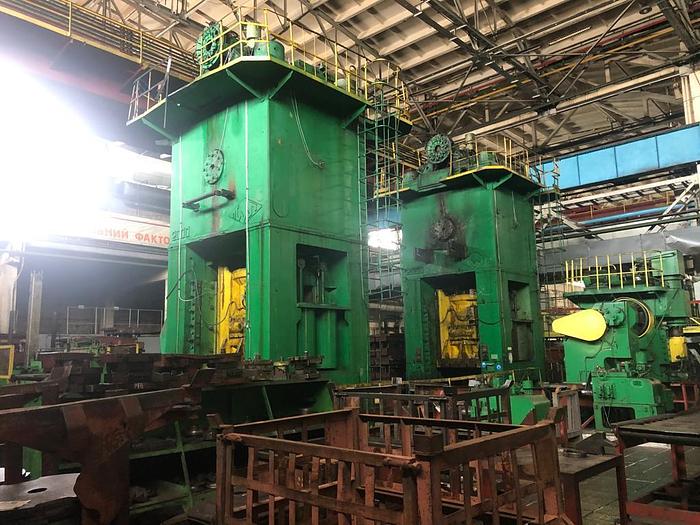

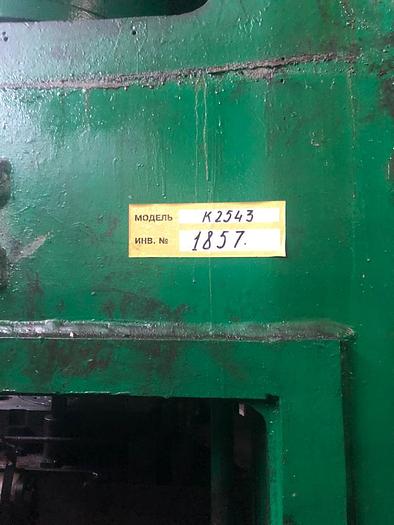

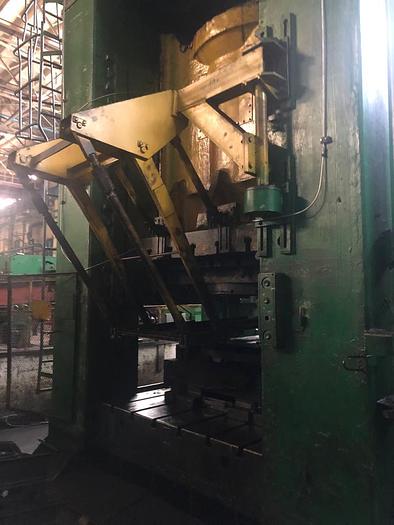

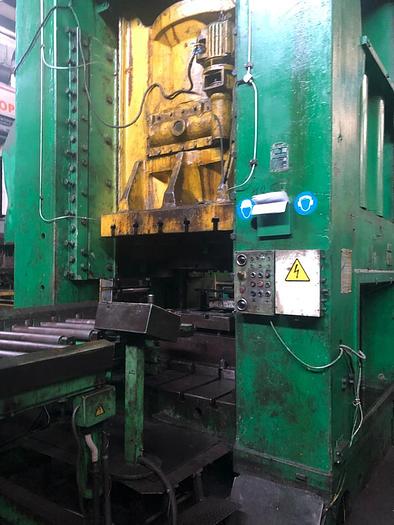

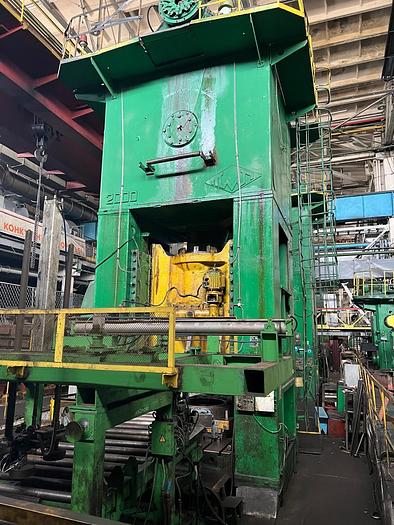

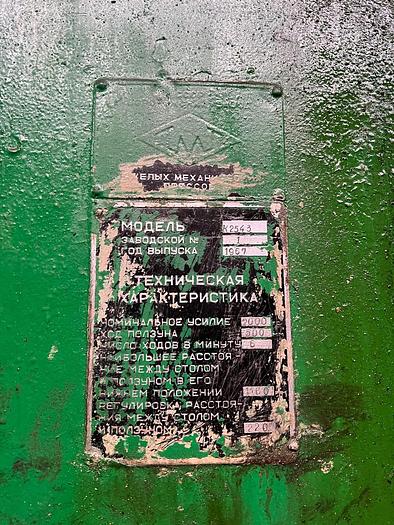

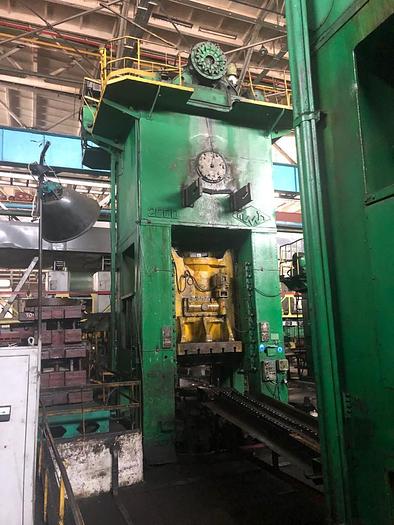

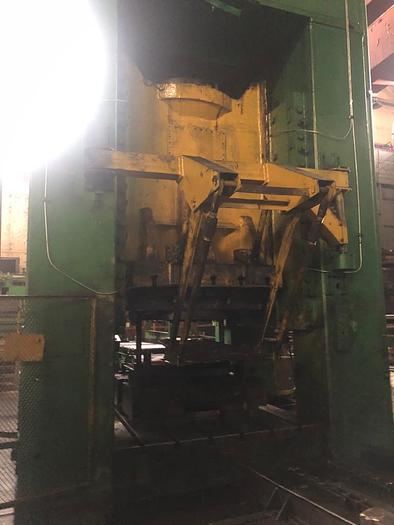

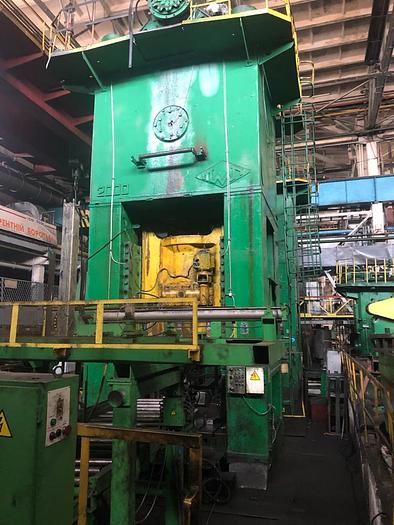

2000 tons Press Trimming K2543 TMP Voronezh Russia

Capacity : 2000 tons,

Ram stroke : 500 mm,

No of ram strokes per minute : 6,

Shut height : 1160 mm,

Adjustment distance between table and ram : 220 mm,

Table size (left to right) : 2000 mm;

Table size (front to back) : 2500 mm,

Ram size (left to right) : 1600 mm,

Ram size (front to back) : 2000 mm,

Opening in table (left to right) : 1250 mm,

Opening in table (front to back) : 1250 mm,

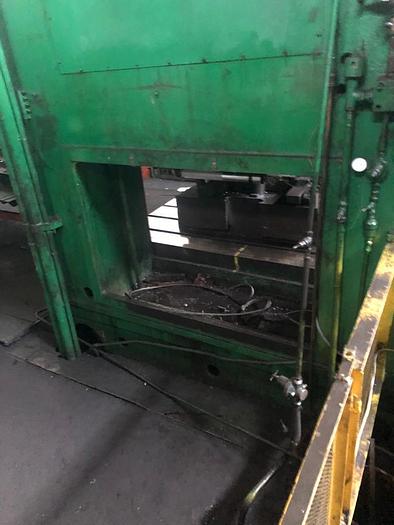

Window size in columns:

Width : 1600 mm,

Height : 1000 mm,

Height from table : 180 mm,

Thickness of table below the bolster: 300 mm,

Hydropenumatic cushion in table:

Ejector capacity : 20 tons,

Ejector stroke : 250 mm,

Main electric motor power: 125 kW,

Adjustment mechanism electric motor power: 14 KW,

Press overall dimensions

left to right : 5390 mm,

front to back : 4870 mm,

Height total : 11835 mm

Weight approx. : 228 tons.

Qty : 2 Nos.
