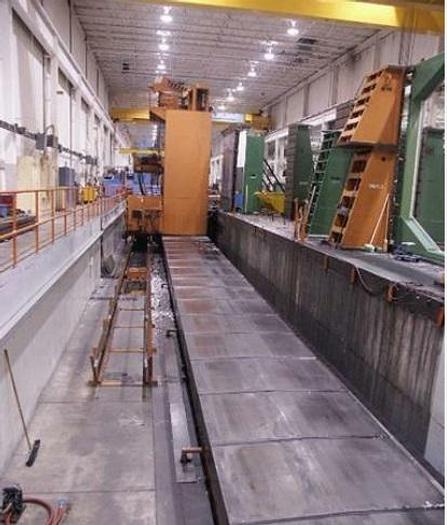

Borer Horizontal Ram Type CNC Mitsubishi MAF240

Spindle diameter : 180 mm,

Milling spindle diameter : 240 mm,

Vertical head travel, y-axis 4293 mm,

Horizontal column travel, x-axis : 30000 mm,

Headstock travel, z-1 axis : 1200 mm,

Spindle travel, z-2 axis : 1200 mm,

Total axial travel : 2400 mm,

Rapid traverse, x & y axes 80: 01 mm/min

Rapid traverse, z, w and u Axes 5004 mm/min,

Spindle taper : cat #50

Spindle speeds, inf. Variable : 6-1200 rpm,

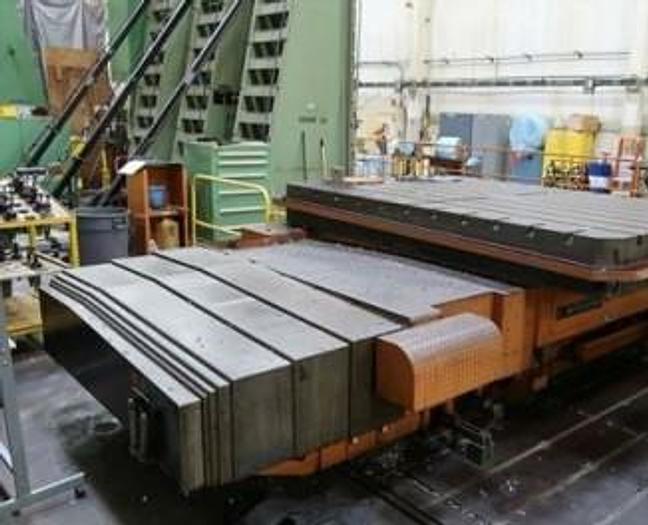

Rotary table specifications:

Make : Mitsubishi

Model DIT-A21 x 30

Table size : 2083 x 3000 mm

Table capacity : 30 tons,

Table infeed : 1499 mm,

Equipped with:

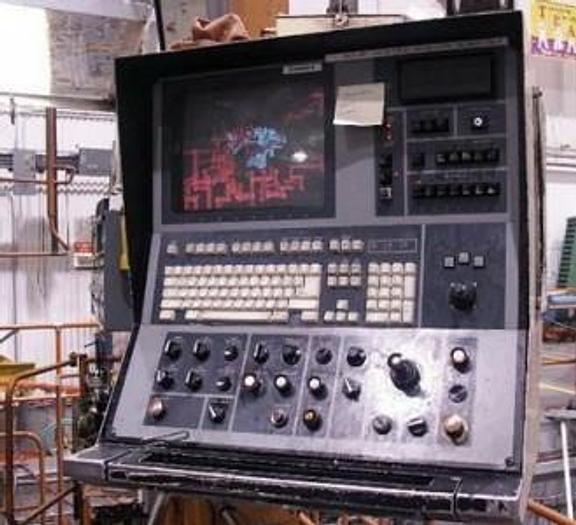

Giddings & lewis 8000B cnc control (new 1999)

Mitsubishi DIT-A21 x 2083 x 3000 mm cnc in-feeding rotary table

Milling extension block (240MF-250A automatic) automatic

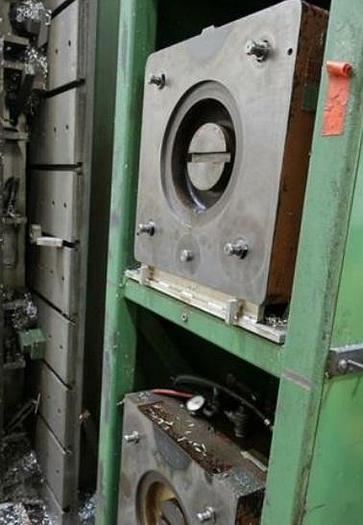

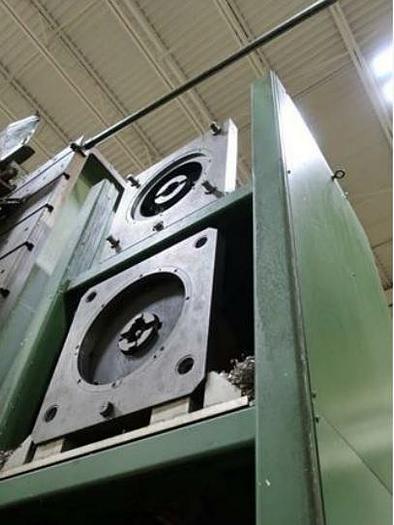

Attachment changer

Right angle head (RH-40/S-40)

Universal head (UH-15/S-250 clamping)

Extension milling head (MEH-1000S)

Way covers on X & Y axes

Hardened & ground ways

Chip conveyor

54 kw spindle drive

Floor plates available at additional cost
